LUGGAGE BOX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

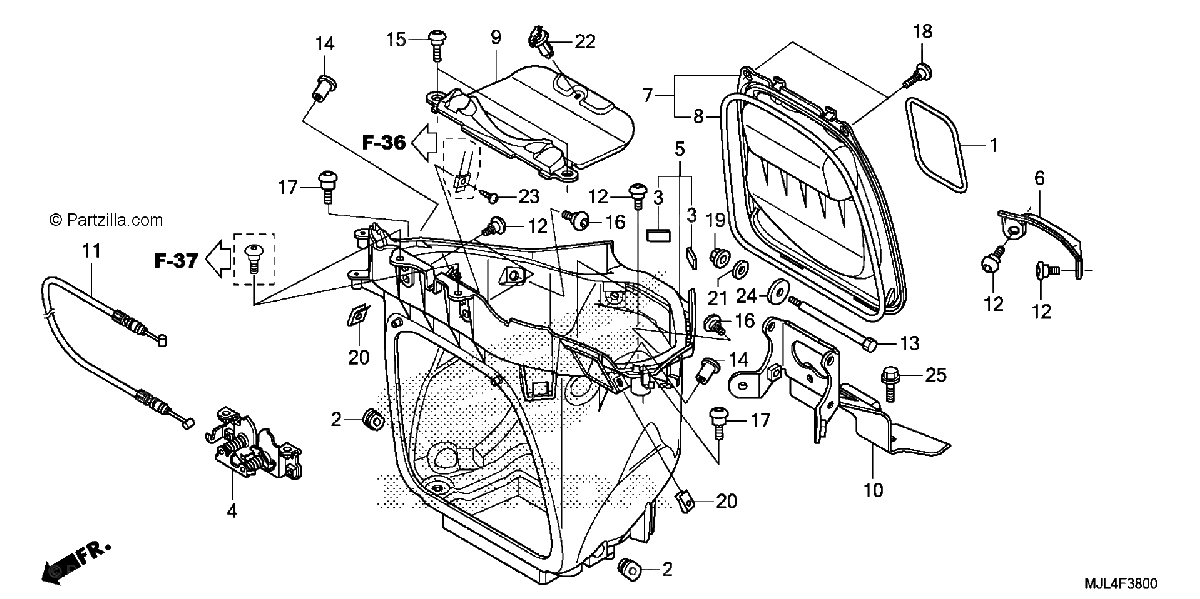

Diagrama de LUGGAGE BOX

Repuestos

#1
50290-MZ7-000
BAND, U-LOCK
$21.27¢10 638
1
#001
50290-MZ7-000
BAND, U-LOCK
$21.27¢10 638
1
#2
64266-MG9-770
GROMMET, SPEAKER PANEL
$3.36¢1 679
1
#002
64266-MG9-770
GROMMET, SPEAKER PANEL
$3.36¢1 679
1
#3
81304-MGS-D30
SEAL, LUGGAGE TRAY
$0.72¢362
1
#003
81304-MGS-D30
SEAL, LUGGAGE TRAY
$0.72¢362
1
#4
81310-MGS-D31
CATCH, LID
$57.32¢28 658
1
#004
81310-MGS-D31
CATCH, LID
$57.32¢28 658
1
#5
81320-MGS-D30
BOX Assembly., LUGGAGE
$171.35¢85 675
1
#005
81320-MGS-D30
BOX Assembly., LUGGAGE
$171.35¢85 675
1
#006
81330-MGS-D30
TRAY, LUGGAGE BOX
$3.94¢1 972
1
#6
81330-MGS-D30
TRAY, LUGGAGE BOX
$3.94¢1 972
1
#7
81340-MGS-D30
LID Assembly., MAINTENANCE
$52.07¢26 036
1
#007
81340-MGS-D30
LID Assembly., MAINTENANCE
$52.07¢26 036
1
#008
81351-MGS-D30
SEAL, MAINTENANCE LID
$8.76¢4 382
1
#8
81351-MGS-D30
SEAL, MAINTENANCE LID
$8.76¢4 382
1
#009
81360-MGS-D30
LID, OWNERS MANUAL BOX
$10.97¢5 485
1
#9
81360-MGS-D30
LID, OWNERS MANUAL BOX
$10.97¢5 485
1
#009
81360-MGS-D31
LID, OWNER'S MANUAL BOX
$10.97¢5 485
1
#010
82122-MGS-D30
BRACKET, HINGE
$48.32¢24 162
1
#10
82122-MGS-D30
BRACKET, HINGE
$48.32¢24 162
1
#011
82140-MGS-D31
CABLE, LID OPEN
$19.26¢9 631
1
#11
82140-MGS-D31
CABLE, LID OPEN
$19.26¢9 631
1
#012
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#12
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#13
90109-MGS-D30
BOLT, HINGE
$4.67¢2 335
1
#013
90109-MGS-D30
BOLT, HINGE
$4.67¢2 335
1
#014
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#14
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#15
90114-MFL-000
SCREW, SPECIAL (6X16)
$2.68¢1 340
1
#015
90114-MFL-000
SCREW, SPECIAL (6X16)
$2.68¢1 340
1
#16
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#016
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#017
90117-MGS-D30
SCREW, PAN (6X16)
$4.21¢2 105
1
#17
90117-MGS-D30
SCREW, PAN (6X16)
$4.21¢2 105
1
#018
90150-MBG-000
SCREW, PAN (5X15)
$2.98¢1 489
1
#18
90150-MBG-000
SCREW, PAN (5X15)
$2.98¢1 489
1
#019
90301-MG3-000
NUT, U (6MM)
$7.72¢3 858
1
#19
90301-MG3-000
NUT, U (6MM)
$7.72¢3 858
1
#20
90320-GC3-000
NUT, SPRING (5MM)
$2.74¢1 368
1
#020
90320-GC3-000
NUT, SPRING (5MM)
$2.74¢1 368
1
#21
90403-MFA-D00
WASHER (6MM)
$2.04¢1 018
1
#021
90403-MFA-D00
WASHER (6MM)
$2.04¢1 018
1
#022
90683-GAZ-003
CLIP, TRIM
$4.24¢2 122
1
#22
90683-GAZ-003
CLIP, TRIM
$4.24¢2 122
1
#23
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#023
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#024
94102-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#24
94102-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#025
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#25
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
