RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

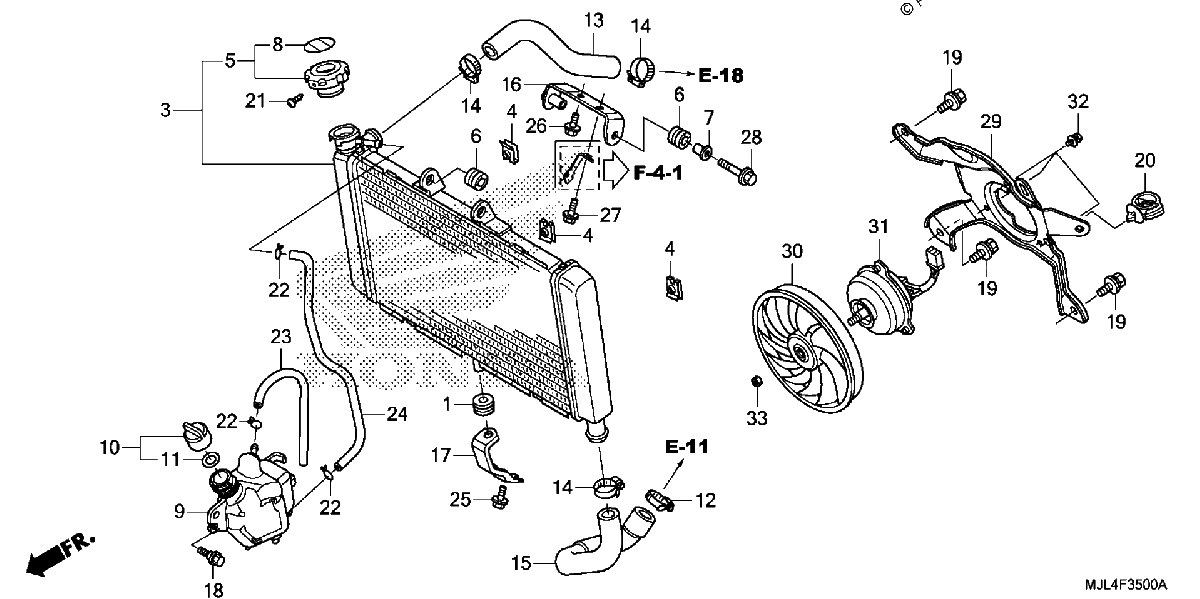

Diagrama de RADIATOR

Repuestos

#001
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#1
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#3
19010-MGS-305
RADIATOR (COO)
$1039.25¢519 627
1
#003
19010-MGS-305
RADIATOR (COO)
$1039.25¢519 627
1
#003
19010-MGS-J31
RADIATOR
$1039.25¢519 627
1
#4
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#004
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#5
19045-MY3-621
CAP, RADIATOR
$43.54¢21 769
1
#005
19045-MY3-621
CAP, RADIATOR
$43.54¢21 769
1
#006
19051-MGS-D30
RUBBER, RADIATOR MOUNTING
$2.15¢1 075
1
#6
19051-MGS-D30
RUBBER, RADIATOR MOUNTING
$2.15¢1 075
1
#7
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#007
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#8
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
1
#008
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
1
#9
19101-MGS-D30
TANK, RADIATOR RESERVE
$46.02¢23 012
1
#009
19101-MGS-D30
TANK, RADIATOR RESERVE
$46.02¢23 012
1
#10
19106-GET-000
CAP ASSY., RESERVE TANK
$7.69¢3 847
1
#010
19106-GET-000
CAP ASSY., RESERVE TANK
$7.69¢3 847
1
#11
19107-GET-000
GASKET, RESERVE TANK
$4.17¢2 087
1
#011
19107-GET-000
GASKET, RESERVE TANK
$4.17¢2 087
1
#12
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$11.14¢5 572
1
#012
19504-MGP-000
CLAMP, WATER HOSE (35MM)
$11.14¢5 572
1
#013
19505-MGS-D30
HOSE, RADIATOR (UPPER)
$15.50¢7 751
1
#13
19505-MGS-D30
HOSE, RADIATOR (UPPER)
$15.50¢7 751
1
#14
19505-ML3-770
CLAMP, WATER HOSE
$7.89¢3 944
1
#014
19505-ML3-770
CLAMP, WATER HOSE
$7.89¢3 944
1
#015
19506-MGS-D30
HOSE, RADIATOR (LOWER)
$27.07¢13 535
1
#15
19506-MGS-D30
HOSE, RADIATOR (LOWER)
$27.07¢13 535
1
#016
19515-MGS-D30
STAY, RADIATOR (UPPER)
$9.86¢4 928
1
#16
19515-MGS-D30
STAY, RADIATOR (UPPER)
$9.86¢4 928
1
#017
19516-MGS-D30ZA
STAY, RADIATOR (LOWER) NH303M (MAT AXIS GRAY METALLIC)
$11.85¢5 923
1
#17
19516-MGS-D30ZA
STAY, RADIATOR (LOWER) NH303M (MAT AXIS GRAY METALLIC)
$11.85¢5 923
1
#18
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#018
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#019
90120-GHB-601
BOLT-WASHER (6X12)
$2.28¢1 138
1
#19
90120-GHB-601
BOLT-WASHER (6X12)
$2.28¢1 138
1
#20
90683-MGC-920
CLIP, HARNESS
$3.69¢1 846
1
#020
90683-MGC-920
CLIP, HARNESS
$3.69¢1 846
1
#021
93901-22180
SCREW, TAPPING (3X8)
$1.07¢535
1
#21
93901-22180
SCREW, TAPPING (3X8)
$1.07¢535
1
#22
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#022
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#023
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#23
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#024
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#24
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#025
95701-06014-02
BOLT, FLANGE (6X14)
$1.28¢638
1
#25
95701-06014-02
BOLT, FLANGE (6X14)
$1.28¢638
1
#026
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#26
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#027
95701-06018-08
BOLT, FLANGE (6X18)
$1.92¢960
1
#27
95701-06018-08
BOLT, FLANGE (6X18)
$1.92¢960
1
#28
95701-06025-08
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#028
95701-06025-08
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#29
19016-MGS-D31
SHROUD
$95.69¢47 846
1
#029
19016-MGS-D31
SHROUD
$95.69¢47 846
1
#030
19020-MGS-D31
FAN, COOLING (TOYO)
$42.38¢21 189
1
#30
19020-MGS-D31
FAN, COOLING (TOYO)
$42.38¢21 189
1
#31
19080-MGS-D31
MOTOR Assembly., FAN
$255.77¢127 886
1
#031
19080-MGS-D31
MOTOR Assembly., FAN
$255.77¢127 886
1
#32
93891-04006-07
SCREW-WASHER (4X6)
$1.36¢678
1
#032
93891-04006-07
SCREW-WASHER (4X6)
$1.36¢678
1
#033
94001-03000-0S
NUT, HEX. (3MM)
$1.23¢615
1
#33
94001-03000-0S
NUT, HEX. (3MM)
$1.23¢615
1
#033
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#33
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
