REAR BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

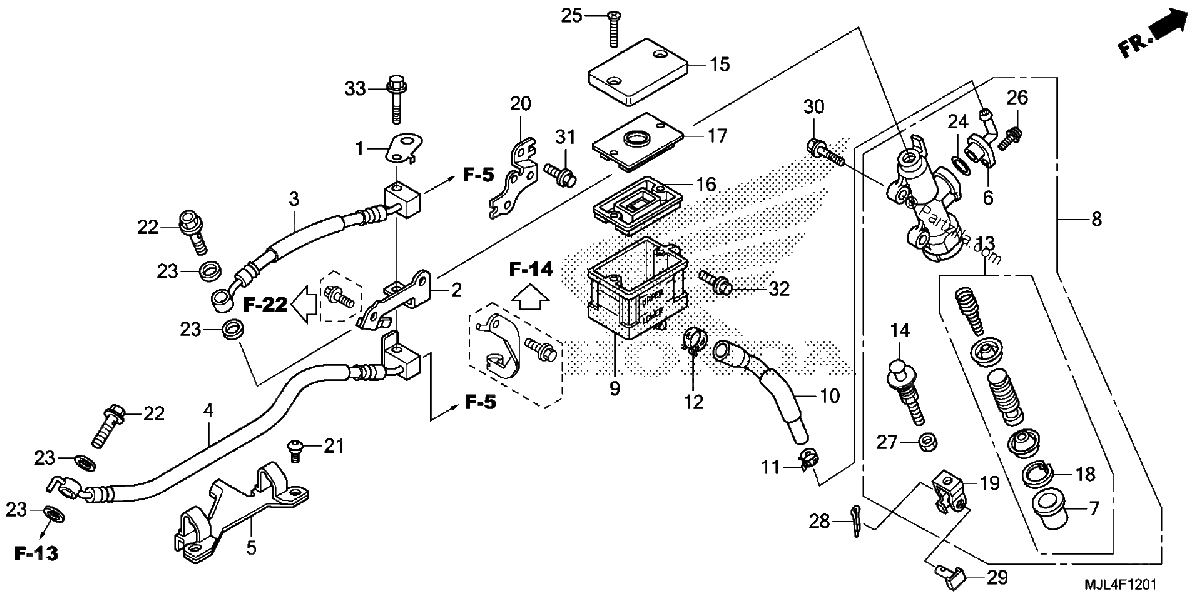

Diagrama de REAR BRAKE MASTER CYLINDER 2

Repuestos

#1
38514-MGS-D80
CLAMP, SENSOR WIRE
$4.71¢2 357
1
#001
38514-MGS-D80
CLAMP, SENSOR WIRE
$4.71¢2 357
1
#002
43160-MGS-D50
STAY, RR. BRAKE HOSE
$15.13¢7 567
1
#2
43160-MGS-D50
STAY, RR. BRAKE HOSE
$15.13¢7 567
1
#3
43310-MGS-D81
HOSE A, Rear BRAKE
$42.26¢21 131
1
#003
43310-MGS-D81
HOSE A, Rear BRAKE
$42.26¢21 131
1
#004
43314-MGS-D81
HOSE E, RR. BRAKE
$83.36¢41 682
1
#4
43314-MGS-D81
HOSE E, RR. BRAKE
$83.36¢41 682
1
#5
43468-MGS-D31
GUIDE, RR. BRAKE HOSE
$19.64¢9 821
1
#005
43468-MGS-D31
GUIDE, RR. BRAKE HOSE
$19.64¢9 821
1
#6
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
1
#006
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
1
#007
43504-MB2-006
BOOT
$10.80¢5 399
1
#7
43504-MB2-006
BOOT
$10.80¢5 399
1
#008
43510-MGS-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$249.14¢124 568
1
#8
43510-MGS-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$249.14¢124 568
1
#008
43510-MGS-D31
MASTER CYLINDER SUB-Assembly., Rear.
$249.14¢124 568
1
#9
43511-KT8-006
CUP, OIL
$42.38¢21 189
1
#009
43511-KT8-006
CUP, OIL
$42.38¢21 189
1
#010
43512-MGS-D31
HOSE, RR. MASTER CYLINDER
$22.94¢11 471
1
#10
43512-MGS-D31
HOSE, RR. MASTER CYLINDER
$22.94¢11 471
1
#11
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#011
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#012
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$18.10¢9 051
1
#12
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$18.10¢9 051
1
#013
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#13
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#014
43530-MJ0-006
ROD, PUSH
$24.64¢12 322
1
#14
43530-MJ0-006
ROD, PUSH
$24.64¢12 322
1
#015
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#015
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#15
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#16
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#016
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#017
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#17
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#018
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#18
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#019
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#19
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#020
50601-MGS-D30
STAY, OIL CUP
$5.88¢2 938
1
#20
50601-MGS-D30
STAY, OIL CUP
$5.88¢2 938
1
#21
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.52¢1 759
1
#021
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.52¢1 759
1
#022
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#22
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#023
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#23
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#024
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#24
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#025
93600-04040-1G
SCREW, FLAT (4X40)
$0.56¢282
1
#25
93600-04040-1G
SCREW, FLAT (4X40)
$0.56¢282
1
#26
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#26
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#026
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#026
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#027
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#27
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#028
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#28
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#29
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#029
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#030
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#30
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#031
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#31
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#32
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#032
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#033
96001-06035-07
BOLT, FLANGE (6X35)
$2.56¢1 282
1
#33
96001-06035-07
BOLT, FLANGE (6X35)
$2.56¢1 282
1
