FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

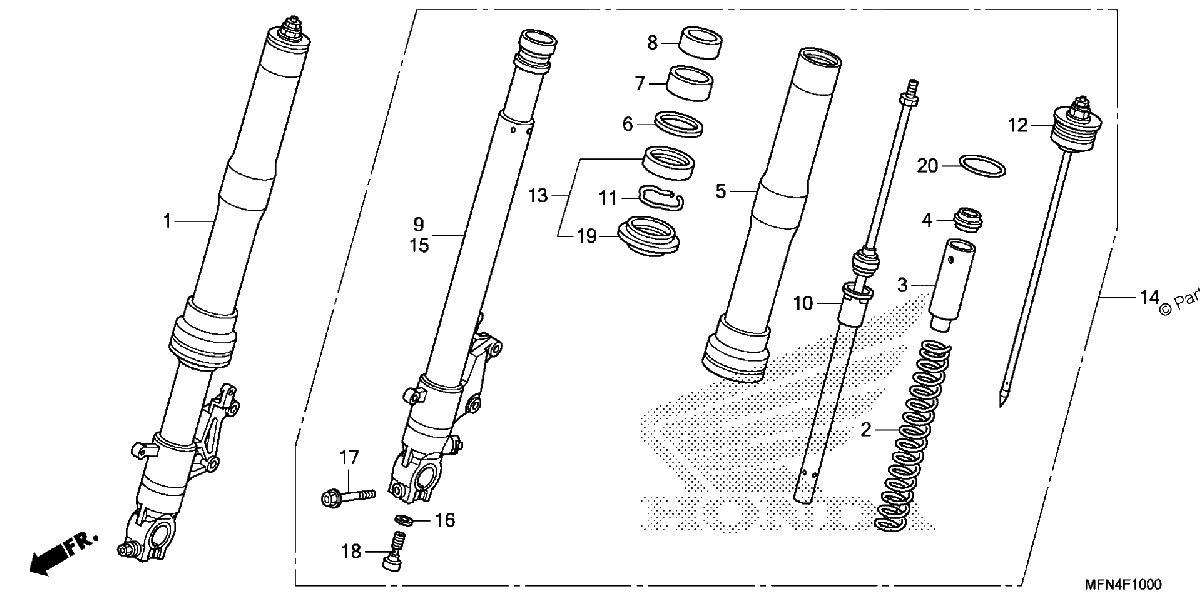

Diagrama de FRONT FORK

Repuestos

#1
51400-MFN-307
FORK ASSY., R. FR. (COO)
$1814.61¢907 306
1
#2
51401-MFN-D01
SPRING, FR. FORK
$93.28¢46 638
1
#3
51403-MFG-D01
COLLAR, SPRING
$13.61¢6 806
1
#4
51406-MW4-003
STOPPER, SPRING SEAT
$9.59¢4 794
1
#5
51410-MFN-306
TUBE (OUTER) (COO)
$715.38¢357 688
1
#6
51412-MEL-003
RING, BACK-UP
$6.79¢3 394
1
#7
51414-MFN-D01
BUSH, GUIDE
$8.58¢4 288
1
#8
51415-MFN-D01
BUSH, SLIDER
$35.79¢17 894
1
#9
51425-MFN-D11
PIPE, R. SLIDE
$843.63¢421 813
1
#10
51430-MFN-D01
DAMPER, FR.
$719.84¢359 919
1
#11
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#11
51447-MBL-611
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#12
51454-MFN-D01
BOLT, FR. FORK
$129.77¢64 887
1
#13
51490-MFL-003
SEAL SET, FR. FORK
$23.21¢11 606
1
#14
51500-MFN-307
FORK ASSY., L. FR. (COO)
$1814.61¢907 306
1
#15
51525-MFN-D11
PIPE, L. SLIDE
$843.63¢421 813
1
#16
52442-KA3-711
WASHER, SPECIAL (10MM)
$3.10¢1 550
1
#17
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#18
90126-MR7-003
BOLT, SOCKET (10X35)
$19.03¢9 513
1
#19
91254-MEJ-003
DUST SEAL
$15.00¢7 500
1
#20
91258-GF4-003
O-RING (42.2X2.4)
$7.16¢3 581
1
