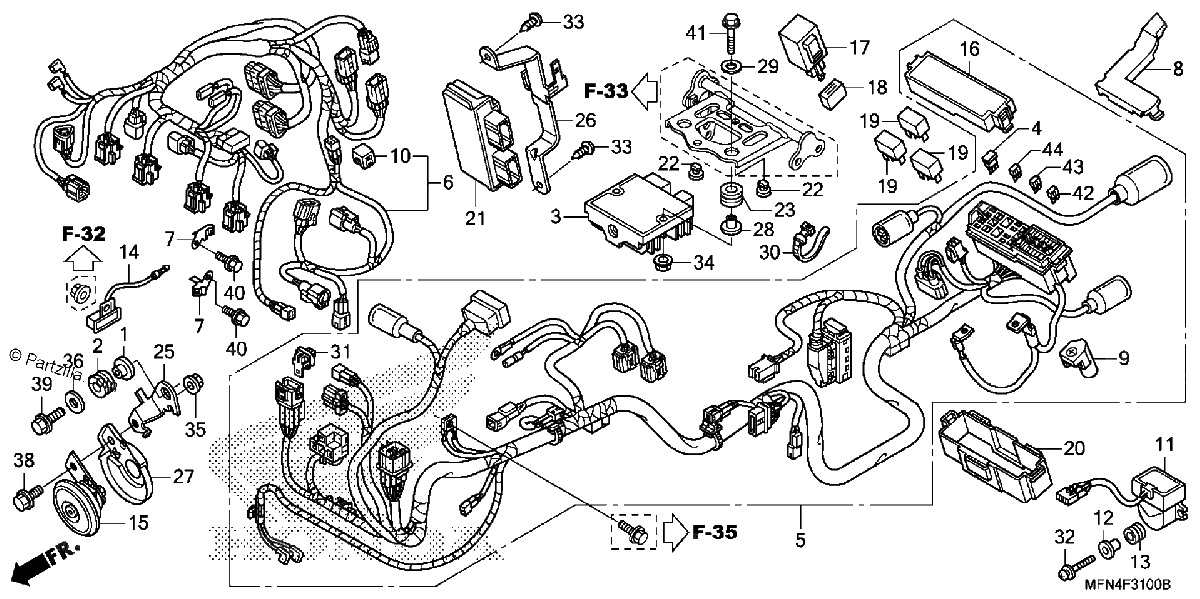

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COLLAR (8MM)
$6.66¢3 329
#2
GROMMET, RESERVE TANK
$3.36¢1 679
#3
RECTIFIER ASSY., REGULATE
$235.88¢117 938
#4
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#5
WIRE HARNESS
$622.85¢311 426
#6
SUB-HARNESS, INJECTOR
$214.56¢107 278
#7
GUIDE, HARNESS
$3.90¢1 949
#8
WIRE, PROTECTOR
$3.84¢1 920
#9
COVER, BATTERY TERMINAL
$3.00¢1 501
#10
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#11
SENSOR, BANK ANGLE
$151.42¢75 710
#12
COLLAR
$8.10¢4 048
#13
GROMMET
$3.51¢1 754
#14
RESISTOR
$22.68¢11 339
#15
HORN
$21.23¢10 615
#16
COVER (UPPER)
$11.99¢5 997
#17
RELAY, TURN SIGNAL (DENSO)
$49.97¢24 984
#18
SUSPENSION, TURN SIGNAL RELAY (DENSO)
$5.62¢2 812
#19
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#20
SUSPENSION, POWER BOX
$2.32¢1 162
#21
PGM-FI UNIT
$1127.23¢563 615
#22
RUBBER, STOPPER
$3.32¢1 662
#23
RUBBER, MOUNTING
$0.80¢402
#25
SUB-STAY, HORN
$7.41¢3 703
#26
STAY, ELECTRONIC CONTROL UNIT
$3.36¢1 679
#27
GUARD, HORN
$7.70¢3 852
#28
COLLAR, FAIRING SETTING
$3.36¢1 679
#29
WASHER B, HANDLE HOLDER SETTING
$2.17¢1 087
#30
BAND, WIRE HARNESS
$3.51¢1 754
#31
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#32
SCREW-WASHER (4X22)
$2.22¢1 110
#33
SCREW, TAPPING (5X12)
$1.53¢765
#34
NUT, FLANGE (6MM)
$1.71¢857
#35
NUT, FLANGE (8MM)
$1.77¢886
#36
WASHER, PLAIN (8MM)
$1.12¢558
#38
BOLT, FLANGE (8X16)
$1.98¢989
#39
BOLT, FLANGE (8X22)
$2.37¢1 185
#40
BOLT, FLANGE (6X10)
$1.92¢960
#41
BOLT, FLANGE (6X28)
$2.13¢1 064
#42
FUSE, MINI (10A)
$1.56¢782
#43
FUSE, MINI (20A)
$1.37¢684
#44
FUSE, MINI (30A)
$1.98¢989
