CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

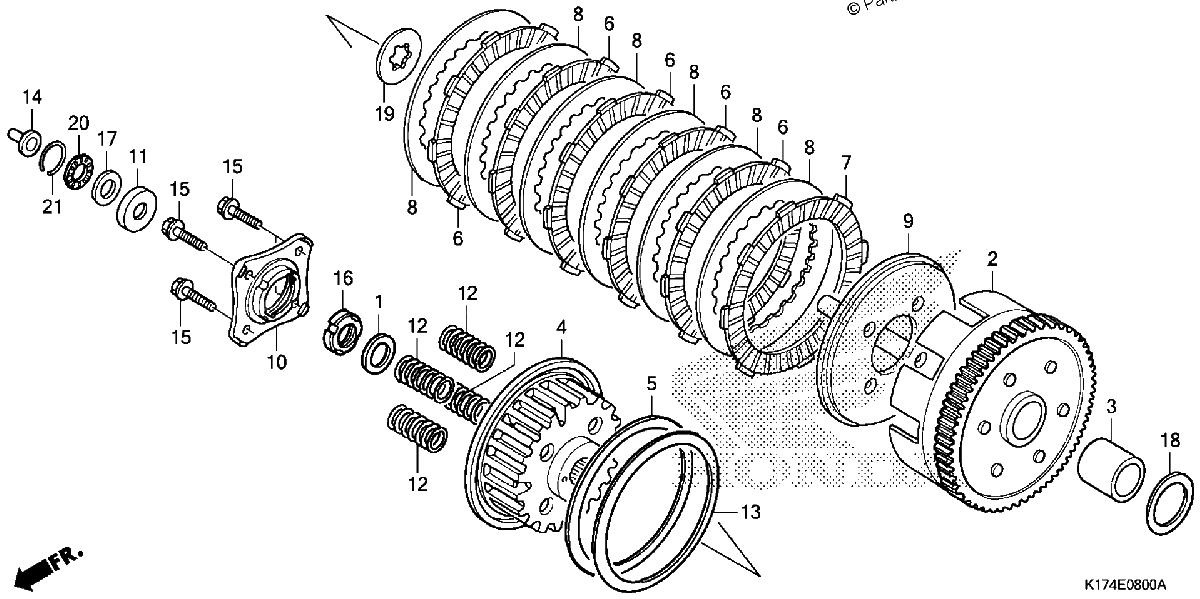

Diagrama de CLUTCH

Repuestos

#1
15451-KR3-601
WASHER, LOCK (16MM)
$6.64¢3 319
1
#001
15451-KR3-601
WASHER, LOCK (16MM)
$6.64¢3 319
1
#2
22100-KB4-670
CLUTCH OUTER
$346.76¢173 381
1
#002
22100-KB4-670
CLUTCH OUTER
$346.76¢173 381
1
#003
22116-KB4-671
GUIDE, CLUTCH (OUTER)
$32.15¢16 075
1
#3
22116-KB4-671
GUIDE, CLUTCH (OUTER)
$32.15¢16 075
1
#4
22121-KR3-601
CENTER, CLUTCH
$119.88¢59 938
1
#004
22121-KR3-601
CENTER, CLUTCH
$119.88¢59 938
1
#5
22125-KB4-670
SEAT, JUDDER SPRING
$13.30¢6 650
1
#005
22125-KB4-670
SEAT, JUDDER SPRING
$13.30¢6 650
1
#006
22201-KBG-A00
DISK, CLUTCH FRICTION
$20.54¢10 269
1
#006
22201-KBG-900
DISK, CLUTCH FRICTION
$24.16¢12 081
1
#6
22201-KBG-900
DISK, CLUTCH FRICTION
$24.16¢12 081
1
#7
22201-KBW-900
DISK, CLUTCH FRICTION
$18.06¢9 031
1
#007
22201-KBW-900
DISK, CLUTCH FRICTION
$18.06¢9 031
1
#008
22321-KE8-000
PLATE, CLUTCH
$14.86¢7 431
1
#8
22321-KE8-000
PLATE, CLUTCH
$14.86¢7 431
1
#009
22350-KR3-600
PLATE, CLUTCH PRESSURE
$61.05¢30 525
1
#9
22350-KR3-600
PLATE, CLUTCH PRESSURE
$61.05¢30 525
1
#10
22361-437-000
PLATE, CLUTCH LIFTER
$17.21¢8 606
1
#010
22361-437-000
PLATE, CLUTCH LIFTER
$17.21¢8 606
1
#11
22362-KR3-600
COLLAR, CLUTCH LIFTER
$30.80¢15 400
1
#011
22362-KR3-600
COLLAR, CLUTCH LIFTER
$30.80¢15 400
1
#012
22401-KB4-670
SPRING, CLUTCH
$6.18¢3 088
1
#12
22401-KB4-670
SPRING, CLUTCH
$6.18¢3 088
1
#12
22401-KT0-000
SPRING, CLUTCH
$6.18¢3 088
1
#012
22401-KT0-000
SPRING, CLUTCH
$6.18¢3 088
1
#013
22402-KB4-670
SPRING, JUDDER
$39.61¢19 806
1
#13
22402-KB4-670
SPRING, JUDDER
$39.61¢19 806
1
#14
22820-KK0-000
PIN, CLUTCH LIFTER
$7.64¢3 819
1
#014
22820-KK0-000
PIN, CLUTCH LIFTER
$7.64¢3 819
1
#015
90050-357-000
BOLT, SPECIAL FLANGE (6X22)
$4.06¢2 031
1
#15
90050-357-000
BOLT, SPECIAL FLANGE (6X22)
$4.06¢2 031
1
#016
90231-KB5-720
NUT, LOCK (16MM)
$5.67¢2 838
1
#16
90231-KB5-720
NUT, LOCK (16MM)
$5.67¢2 838
1
#17
90452-147-003
WASHER, THRUST (12MM) (TOYO)
$4.39¢2 194
1
#017
90452-147-003
WASHER, THRUST (12MM) (TOYO)
$4.39¢2 194
1
#18
90459-KB4-670
WASHER, THRUST (20MM)
$5.07¢2 537
1
#018
90459-KB4-670
WASHER, THRUST (20MM)
$5.07¢2 537
1
#019
90461-107-000
WASHER B, SPLINE (20MM)
$6.19¢3 094
1
#19
90461-107-000
WASHER B, SPLINE (20MM)
$6.19¢3 094
1
#20
91001-147-003
BEARING, NEEDLE (12MM) (NTN)
$14.60¢7 300
1
#020
91001-147-003
BEARING, NEEDLE (12MM) (NTN)
$14.60¢7 300
1
#21
91012-KF0-000
CLIP, NEEDLE THRUST BEARING (12MM)
$3.65¢1 825
1
#021
91012-KF0-000
CLIP, NEEDLE THRUST BEARING (12MM)
$3.65¢1 825
1
