EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

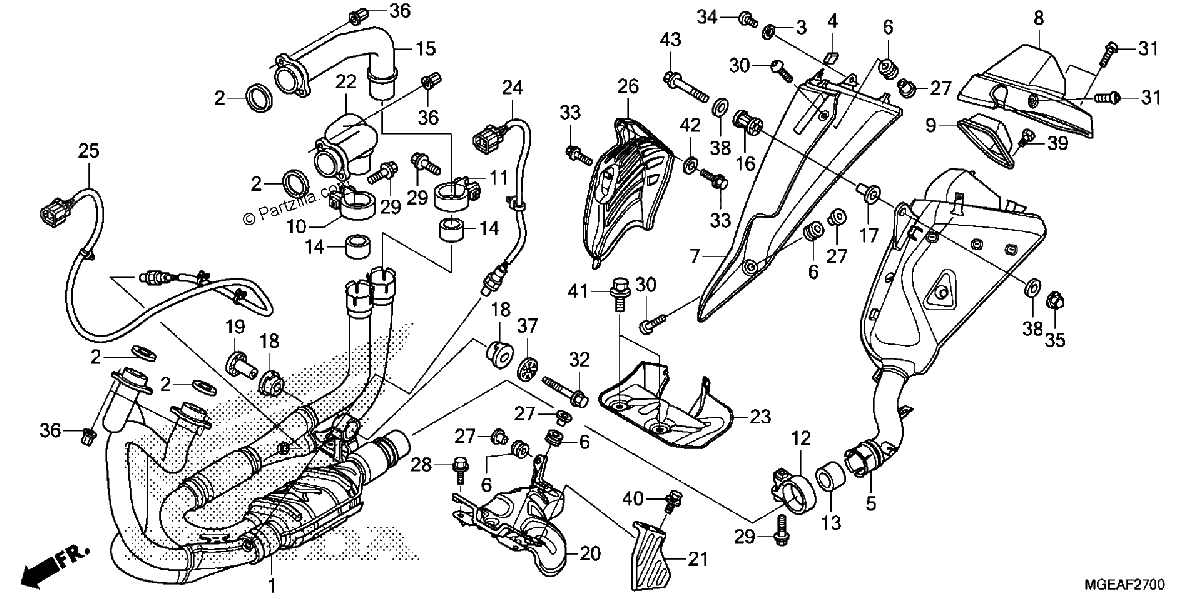

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MGE-D40
PIPE, EX.
$3200.48¢1 600 242
1
#2
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#3
18292-KBR-000
GASKET, PROTECTOR
$3.85¢1 926
1
#4
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#5
18310-MGE-315
MUFFLER (COO)
$2144.20¢1 072 099
1
#6
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#7
18350-MGE-003
GUARD, MUFFLER (UPPER)
$428.04¢214 021
1
#8
18360-MGE-003
GUARD, Rear MUFFLER
$327.54¢163 771
1
#9
18370-MGE-003
COVER, VALVE
$42.91¢21 453
1
#10
18373-413-000
BAND, R. FR. MUFFLER
$46.11¢23 057
1
#11
18374-413-000
BAND, L. FR. MUFFLER
$46.11¢23 057
1
#12
18375-MCF-003
BAND, R. RR. MUFFLER
$35.03¢17 515
1
#12
18375-MCF-D30
BAND, R. RR. MUFFLER
$35.03¢17 515
1
#13
18392-MCF-003
GASKET, MUFFLER
$19.42¢9 712
1
#14
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#15
18420-MGE-003
PIPE, Right Rear EX.
$222.51¢111 257
1
#16
18421-KV3-950
RUBBER, MUFFLER MOUNTING
$3.90¢1 949
1
#17
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$8.83¢4 416
1
#18
18422-MGE-000
RUBBER, EX. PIPE MOUNTING
$22.45¢11 224
1
#19
18423-MGE-000
COLLAR, EX. PIPE MOUNTING
$11.26¢5 629
1
#20
18425-MGE-010
PROTECTOR, EX. PIPE (UPPER)
$133.84¢66 919
1
#21
18426-MGE-000
SUB-PROTECTOR, EX. PIPE (UPPER)
$12.94¢6 469
1
#22
18470-MGE-003
PIPE, L Rear EX.
$222.51¢111 257
1
#23
18475-MGE-000
PROTECTOR, EX. PIPE (LOWER)
$79.23¢39 618
1
#24
36531-MGE-641
SENSOR, OXYGEN (#1-4)
$295.43¢147 717
1
#25
36532-MGE-J01
SENSOR, OXYGEN (#2-3)
$327.39¢163 697
1
#26
50606-MGE-000
PROTECTOR, HEAT
$125.53¢62 767
1
#27
50609-MCW-D00
COLLAR, HEAT GUARD SETTING
$2.94¢1 472
1
#28
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$3.91¢1 955
1
#29
90103-KCM-620
BOLT, FLANGE (8X35)
$1.86¢932
1
#30
90106-KRG-000
SCREW, PAN (6X12)
$2.59¢1 294
1
#31
90119-MGE-000
BOLT, SPECIAL (5X10) (SUS)
$4.50¢2 248
1
#32
90127-MGE-000
BOLT, FLANGE (8X65)
$4.45¢2 225
1
#33
90128-MGE-000
BOLT, FLANGE (6X16) (BLACK)
$2.24¢1 121
1
#34
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#35
90443-KF9-900
NUT, CAP (8MM)
$4.77¢2 386
1
#35
90301-SA0-000
NUT, FLANGE CAP (8MM)
$4.77¢2 386
1
#36
90304-HB3-771
NUT, SPECIAL (6MM)
$6.76¢3 381
1
#37
90505-MGE-000
WASHER (8.5X38)
$2.64¢1 322
1
#38
90509-642-000
WASHER, PLAIN (8.5X22X2.3)
$7.61¢3 807
1
#39
92101-05008-4J
BOLT, HEX. (5X8)
$2.68¢1 340
1
#40
93401-05010-00
BOLT-WASHER (5X10)
$1.21¢604
1
#41
93404-06012-07
BOLT-WASHER (6X12)
$1.83¢914
1
#41
93404-06012-08
BOLT-WASHER (6X12)
$1.83¢914
1
#42
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#43
96300-08045-04
BOLT, FLANGE (8X45)
$1.79¢897
1
