REDUCTION GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

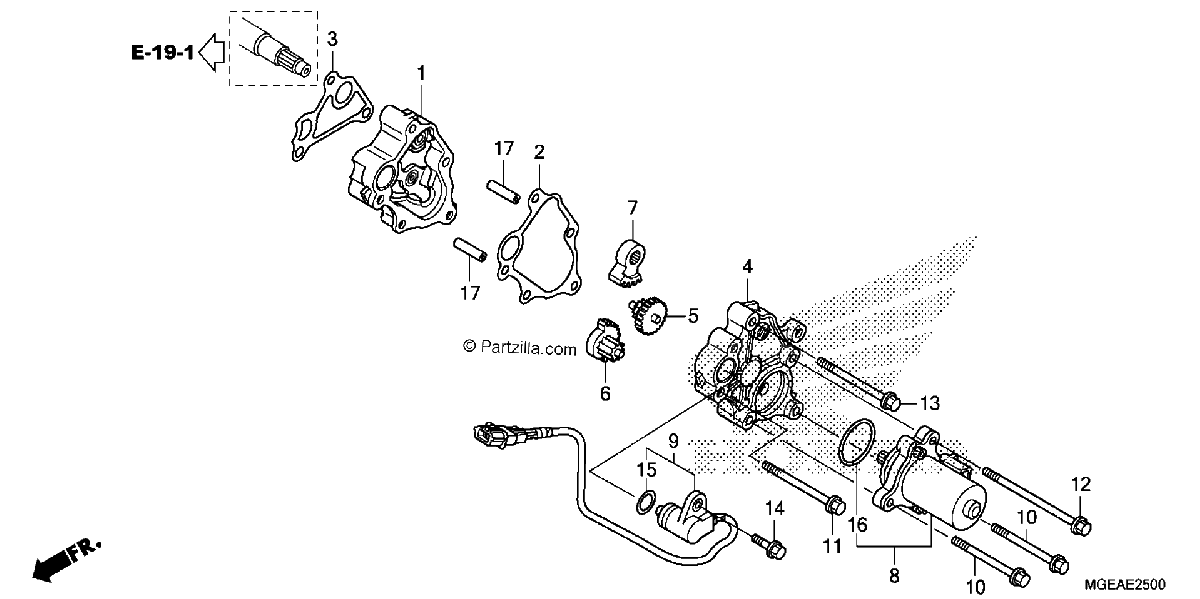

Diagrama de REDUCTION GEAR

Repuestos

#1
11510-MGH-D20
BASE, REDUCTION GEAR
$128.01¢64 006
1
#2
11513-MGE-D01
GASKET, REDUCTION GEAR COVER
$7.18¢3 588
1
#3
11514-MGE-D01
GASKET, REDUCTION GEAR BASE
$5.35¢2 675
1
#4
11520-MGH-D20
COVER, REDUCTION GEAR
$141.19¢70 594
1
#5
24615-MGE-D01
GEAR, SHIFT REDUCTION (45T/7T)
$86.79¢43 394
1
#6
24616-MGS-D21
GEAR, SHIFT REDUCTION (32T/13T)
$85.57¢42 787
1
#7
24617-MGE-D01
GEAR, SHIFT REDUCTION (42T)
$70.41¢35 206
1
#8
31300-KVZ-631
MOTOR ASSY., RATIO CONTROL
$371.11¢185 556
1
#9
38800-MGE-D01
SENSOR ASSY., ANGLE (350DEGREE)
$265.88¢132 938
1
#10
90007-MGE-D00
BOLT, FLANGE (6X55)
$3.44¢1 719
1
#11
90008-MGE-D00
BOLT, FLANGE (6X65)
$3.79¢1 894
1
#12
90009-MGE-D00
BOLT, FLANGE (6X85)
$3.98¢1 988
1
#13
90010-MGE-D00
BOLT, FLANGE (6X60)
$3.44¢1 719
1
#14
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#15
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#16
91351-HM8-A51
O-RING, CONTROL MOTOR
$4.63¢2 313
1
#17
91704-PF4-000
PIN, DOWEL (8X40)
$8.50¢4 250
1
