FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

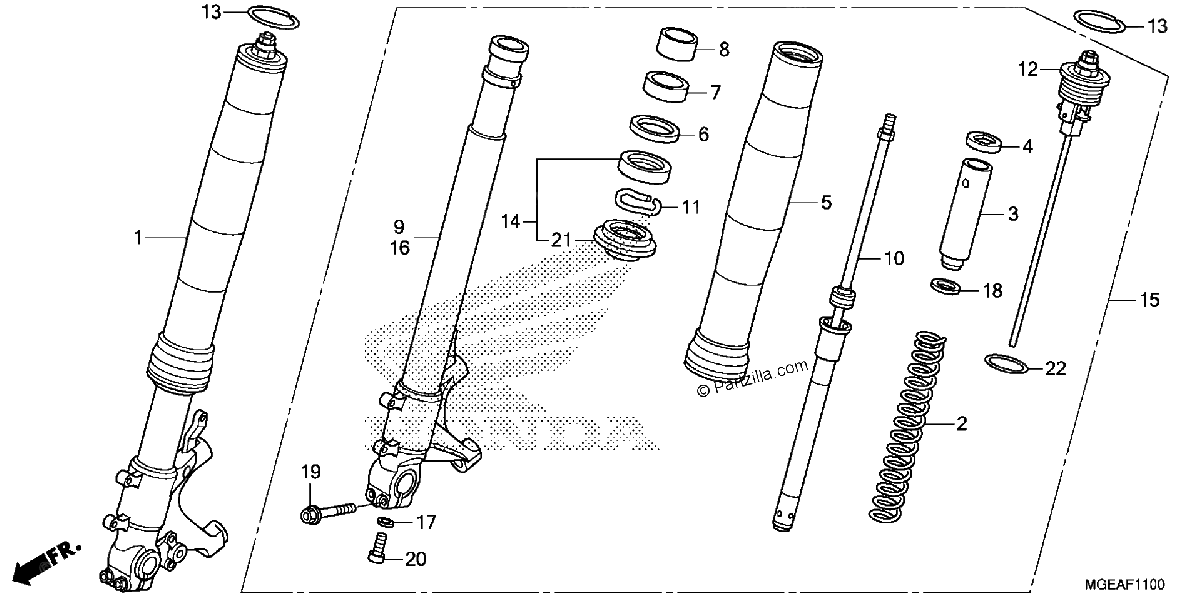

Diagrama de FRONT FORK

Repuestos

#1
51400-MGE-306
FORK Assembly., Right Front. (KYB)(COO)
$1571.75¢785 876
1
#2
51401-MGE-D01
SPRING, Front FORK
$82.42¢41 210
1
#3
51403-MGE-003
COLLAR, SPRING
$20.19¢10 097
1
#4
51406-MGE-003
SEAT, SPRING COLLAR
$5.26¢2 628
1
#5
51410-MGE-003
TUBE (OUTER)
$698.90¢349 451
1
#6
51412-MGE-003
RING, BACK-UP
$9.73¢4 865
1
#7
51414-MGE-003
BUSH, GUIDE
$8.34¢4 169
1
#8
51415-MGE-003
BUSH, SLIDER
$9.51¢4 755
1
#9
51425-MGE-003
PIPE, Right SLIDE
$553.53¢276 765
1
#10
51430-MGE-003
DAMPER, Front.
$638.57¢319 286
1
#11
51447-KZ4-711
RING, OIL SEAL STOP
$5.62¢2 812
1
#12
51450-MGE-003
BOLT, FR. FORK
$200.65¢100 326
1
#13
51455-MW4-003
RING, STOPPER
$13.12¢6 561
1
#14
51490-MGE-003
SEAL SET, FR. FORK
$24.44¢12 219
1
#15
51500-MGE-306
FORK Assembly., L Front. (KYB)(COO)
$1571.75¢785 876
1
#16
51525-MGE-003
PIPE, L SLIDE
$483.68¢241 839
1
#17
52442-KA3-731
WASHER, OIL BOLT
$2.77¢1 386
1
#18
52442-MGE-003
WASHER
$2.33¢1 167
1
#19
90107-MGE-000
BOLT, FLANGE (8X40)
$3.15¢1 576
1
#20
90116-KK0-004
BOLT, SOCKET (10X25)
$6.64¢3 318
1
#21
91254-MGE-003
DUST SEAL
$16.08¢8 038
1
#22
91258-KZ4-711
O-RING (39.7X3.5)
$10.73¢5 365
1
