SUB HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

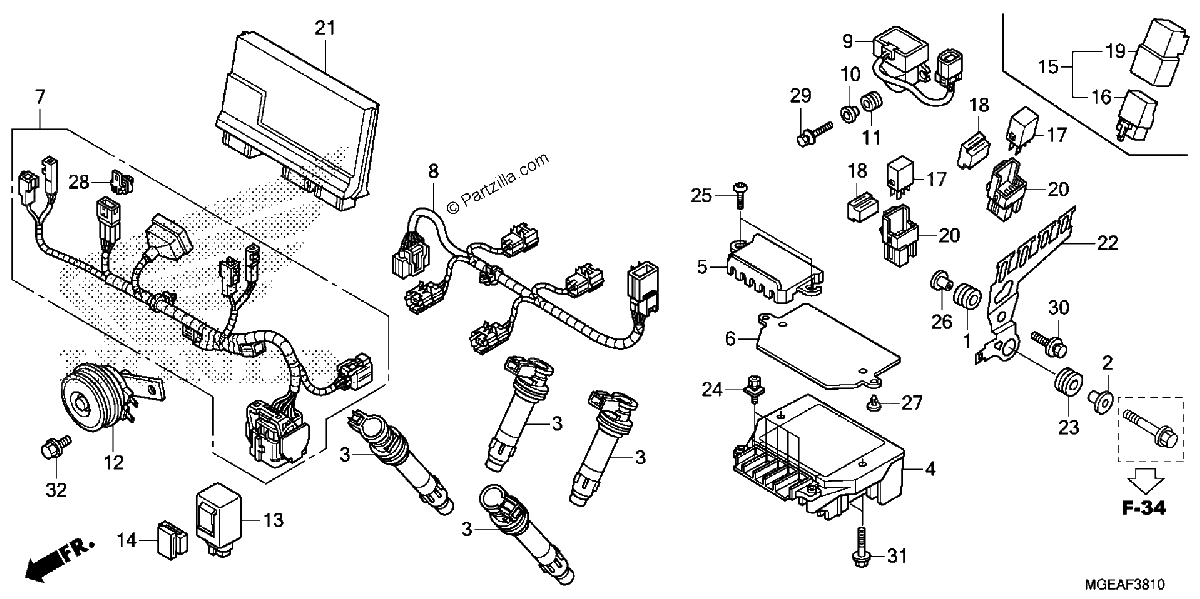

Diagrama de SUB HARNESS

Repuestos

#1
18320-196-000
RUBBER A, PROTECTOR
$3.16¢1 581
1
#2
18422-MBG-610
COLLAR, EX. MOUNTING
$5.46¢2 731
1
#3
30700-MGE-641
CAP COIL, IGNITION
$96.63¢48 317
1
#4
31600-MGE-641
RECTIFIER ASSY., REGULATOR
$486.00¢243 001
1
#5
31601-MGE-642
COVER, REGULATOR RECTIFIER
$11.26¢5 629
1
#6
31604-MGE-000
PLATE, REGULATOR RECTIFIER
$14.50¢7 251
1
#7
32103-MGE-D50
SUB-HARNESS, FR.
$164.36¢82 179
1
#8
32112-MGE-640
SUB-HARNESS, INJECTOR
$102.69¢51 348
1
#9
35161-MGE-641
SENSOR, BANK ANGLE
$163.56¢81 782
1
#10
35162-MN5-003
COLLAR
$8.10¢4 048
1
#11
35163-MN5-003
GROMMET
$3.51¢1 754
1
#12
38110-KCR-J01
HORN (HIGH)
$43.32¢21 660
1
#13
38301-MEW-921
RELAY, TURN SIGNAL (MITSUBA)
$56.97¢28 486
1
#14
38306-GE7-000
SUSPENSION, TURN SIGNAL RELAY
$5.29¢2 645
1
#15
38500-GC7-612
RELAY ASSY., STARTER
$59.42¢29 710
1
#16
38501-GN2-014
RELAY, STARTER (MITSUBA)
$53.02¢26 508
1
#17
38501-MCS-G01
RELAY, POWER (MICRO ISO 4P)
$11.58¢5 790
1
#18
38506-751-701
SUSPENSION, STARTER RELAY (TATEISHI)
$5.30¢2 651
1
#19
38506-GC7-611
SUSPENSION, STARTER RELAY (MITSUBA)
$5.01¢2 507
1
#20
38506-MBW-G91
HOLDER, RELAY
$4.22¢2 110
1
#21
38770-MGE-C42
PGM-FI UNIT
$2397.90¢1 198 950
1
#22
50209-MGE-000
STAY, RELAY
$12.35¢6 176
1
#23
55204-GJ2-000
GROMMET, OIL TUBE
$4.15¢2 076
1
#24
90101-MGE-640
BOLT, SOCKET (5X8)
$2.79¢1 397
1
#25
90113-MCJ-000
SCREW, PAN (5X15)
$2.64¢1 322
1
#26
90522-KF0-000
COLLAR, SIDE COVER SETTING
$4.99¢2 496
1
#27
91504-SD5-901
CLIP, WASHER MOUTH
$4.91¢2 455
1
#28
91565-S0X-003
CLIP, CONNECTOR (DARK GREEN)
$4.30¢2 151
1
#29
93401-04020-08
BOLT-WASHER (4X20)
$0.79¢397
1
#30
93404-06020-00
BOLT-WASHER (6X20)
$1.92¢960
1
#31
95701-06025-00
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#32
95701-08012-07
BOLT, FLANGE (8X12)
$2.13¢1 064
1
