PARKING BRAKE LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

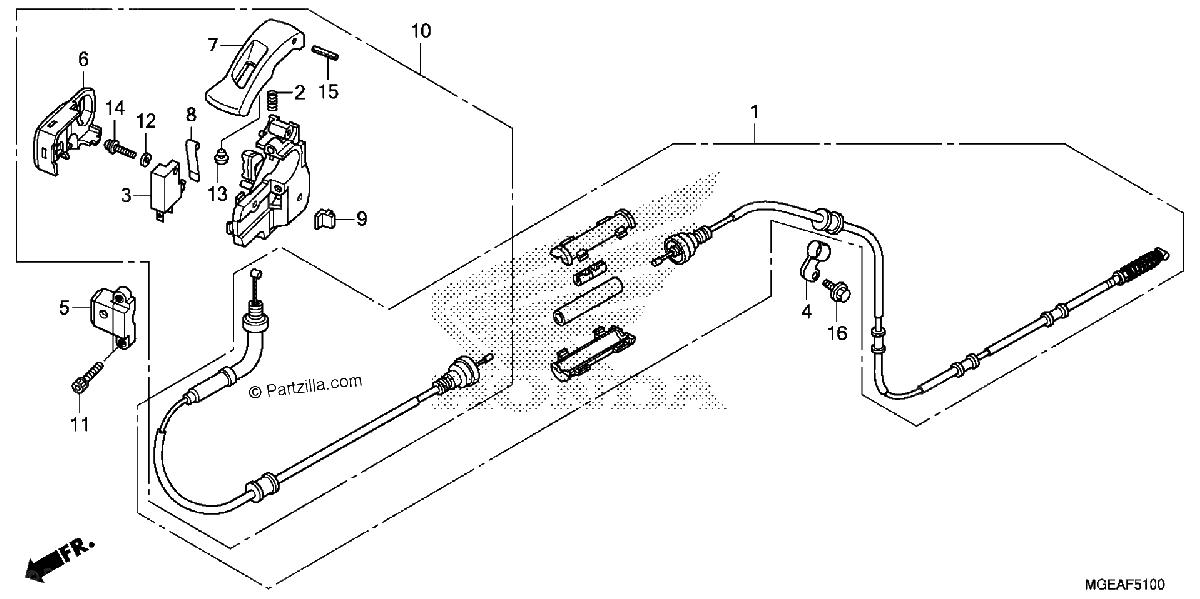

Diagrama de PARKING BRAKE LEVER

Repuestos

#1
06430-MGE-D01
CABLE KIT, PARKING
$98.49¢49 243
1
#2
24271-743-000
SPRING, BALL SETTING
$2.69¢1 346
1
#3
35340-HR0-305
SWITCH ASSY., FR. STOP (COO)
$19.16¢9 580
1
#3
35340-ML4-005
SWITCH ASSY., FR. STOP (OMRON)
$19.16¢9 580
1
#4
43459-MGE-D00
CLAMP, PARKING CABLE
$6.55¢3 278
1
#5
47111-MGE-D00
HOLDER (UPPER)
$32.88¢16 439
1
#6
47117-MGE-D00
COVER, HOLDER
$3.98¢1 989
1
#7
47152-MGE-D00
LEVER, PARKING TOP
$8.13¢4 065
1
#8
47154-MGE-D00
SPRING, SWITCH
$10.06¢5 031
1
#9
47156-MGE-D00
CAP, HOLDER (LOWER)
$2.74¢1 368
1
#10
47205-MGE-D01
LEVER Assembly., PARKING
$431.54¢215 769
1
#11
90116-MGE-D00
BOLT, SOCKET (5X20)
$3.96¢1 978
1
#12
90515-046-810
WASHER, PLAIN (4X8)
$1.47¢736
1
#12
90515-GN5-910
WASHER, PLAIN (4X8)
$1.47¢736
1
#13
90801-SB0-000
PLUG, CHANGE REINFORCEMENT
$4.28¢2 139
1
#14
93892-04014-07
SCREW-WASHER (4X14)
$1.17¢586
1
#15
94305-30283
PIN, SPRING (3X28)
$1.79¢897
1
#16
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
