SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

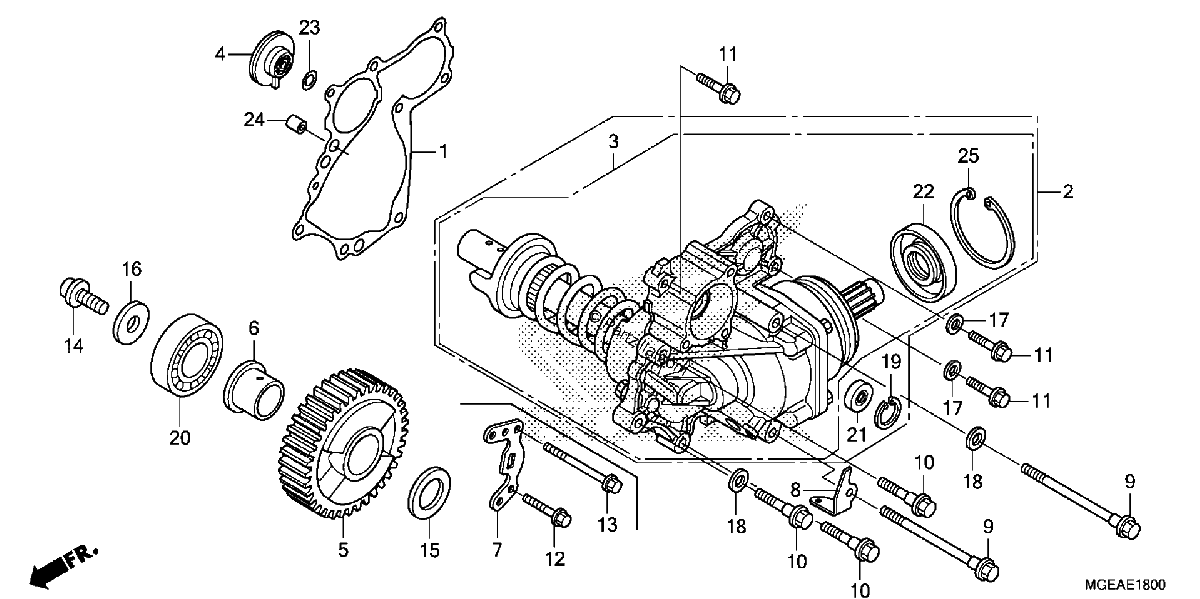

Diagrama de SIDE GEAR CASE

Repuestos

#1
11663-MGE-003
GASKET, SIDE GEAR CASE
$29.30¢14 650
1
#3
21100-MGE-D00
CASE ASSY., SIDE GEAR
$3251.89¢1 625 944
1
#5
23541-MGE-D00
GEAR, FINAL DRIVEN (39T)
$158.42¢79 212
1
#6
23733-MGE-000
COLLAR (25X30X28.6)
$41.51¢20 756
1
#7
32156-MGE-D01
STAY, HARNESS CLIP
$5.74¢2 869
1
#9
90005-MGE-010
BOLT, FLANGE (8X95)
$6.45¢3 225
1
#10
90006-MGE-010
BOLT, UBS (8X40)
$6.95¢3 475
1
#11
90016-GHB-680
BOLT, FLANGE (6X28)
$2.92¢1 463
1
#12
90016-GHB-700
BOLT, FLANGE (6X35)
$2.81¢1 406
1
#13
90016-GHB-760
BOLT, FLANGE (6X65)
$3.21¢1 606
1
#14
90037-ME9-000
BOLT, SPECIAL (10MM)
$9.32¢4 663
1
#15
90403-MGE-000
WASHER, SPECIAL (25X40.4X1.2)
$6.63¢3 313
1
#16
90414-MGE-D00
WASHER (10.5X36X4)
$3.02¢1 513
1
#17
90441-706-000
WASHER, SEALING (6MM)
$1.42¢712
1
#18
90442-028-000
WASHER, SEALING (8MM)
$2.27¢1 138
1
#20
91005-MGE-003
BEARING, BALL (6305)
$30.96¢15 481
1
#22
91205-MGE-003
OIL SEAL (28X66X8)
$14.07¢7 038
1
#24
94302-10120
PIN, DOWEL (10X12)
$1.85¢925
1
#25
94520-65120
CIRCLIP (INNER) (65MM)
$3.94¢1 969
1
