SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

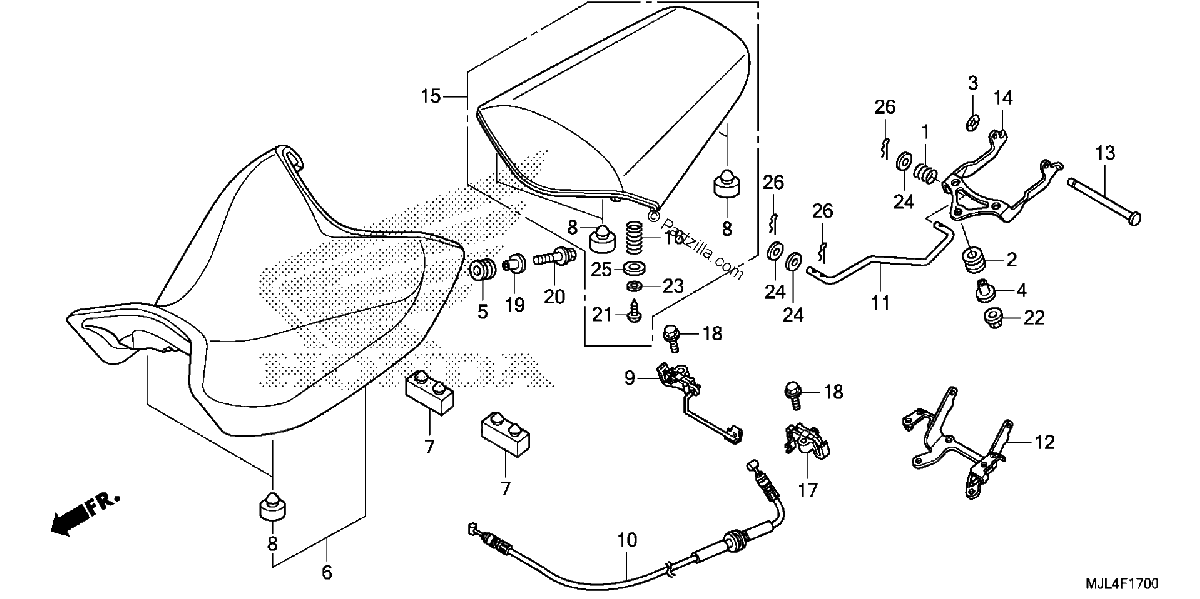

Diagrama de SEAT

Repuestos

#1
15447-149-000
SPRING, OIL THROUGH
$3.65¢1 825
1
#001
15447-149-000
SPRING, OIL THROUGH
$3.65¢1 825
1
#2
17227-GS3-000
RUBBER, AIR CLEANER MOUNTING
$3.69¢1 844
1
#002
17227-GS3-000
RUBBER, AIR CLEANER MOUNTING
$3.69¢1 844
1
#003
18316-HW1-671
NUT, PUSH (6MM)
$1.00¢500
1
#3
18316-HW1-671
NUT, PUSH (6MM)
$1.00¢500
1
#4
61104-435-000
COLLAR, SIDE COVER
$6.13¢3 063
1
#004
61104-435-000
COLLAR, SIDE COVER
$6.13¢3 063
1
#005
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$4.20¢2 100
1
#5
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$4.20¢2 100
1
#006
77100-MJL-D32
SEAT Assembly., SINGLE
$284.51¢142 256
1
#006
77100-MKL-D51
SEAT Assembly., SINGLE
$284.51¢142 256
1
#006
77100-MJL-D31
SEAT ASSY., SINGLE
$284.51¢142 256
1
#6
77100-MJL-D31
SEAT ASSY., SINGLE
$284.51¢142 256
1
#007
77205-MFE-670
RUBBER, SEAT SETTING
$7.18¢3 588
1
#7
77205-MFE-670
RUBBER, SEAT SETTING
$7.18¢3 588
1
#008
77206-GF0-000
RUBBER, SEAT CUSHION
$6.61¢3 306
1
#8
77206-GF0-000
RUBBER, SEAT CUSHION
$6.61¢3 306
1
#009
77220-MGS-D31
LOCK A, SEAT CATCH
$95.29¢47 644
1
#9
77220-MGS-D31
LOCK A, SEAT CATCH
$95.29¢47 644
1
#010
77241-MGS-D31
CABLE, SEAT LOCK
$33.21¢16 606
1
#10
77241-MGS-D31
CABLE, SEAT LOCK
$33.21¢16 606
1
#11
77242-MGS-D30
ROD, PILLION SEAT
$36.48¢18 238
1
#011
77242-MGS-D30
ROD, PILLION SEAT
$36.48¢18 238
1
#012
77250-MGS-D30
STAY, PILLION SEAT HINGE
$44.29¢22 144
1
#12
77250-MGS-D30
STAY, PILLION SEAT HINGE
$44.29¢22 144
1
#13
77251-MGS-D30
PIN, SEAT HINGE
$9.13¢4 563
1
#013
77251-MGS-D30
PIN, SEAT HINGE
$9.13¢4 563
1
#14
77255-MGS-D30
ARM, SEAT HINGE
$51.95¢25 975
1
#014
77255-MGS-D30
ARM, SEAT HINGE
$51.95¢25 975
1
#015
77300-MJL-D31
SEAT ASSY., PILLION
$297.63¢148 813
1
#15
77300-MJL-D31
SEAT ASSY., PILLION
$297.63¢148 813
1
#015
77300-MKL-D51
SEAT Assembly., PILLION
$297.63¢148 813
1
#16
77302-MEE-000
SPRING, SEAT LOCK
$2.76¢1 381
1
#016
77302-MEE-000
SPRING, SEAT LOCK
$2.76¢1 381
1
#17
77320-MGS-D31
LOCK B, SEAT CATCH
$74.61¢37 306
1
#017
77320-MGS-D31
LOCK B, SEAT CATCH
$74.61¢37 306
1
#18
90101-MAS-000
BOLT, FLANGE (6X20)
$4.14¢2 069
1
#018
90101-MAS-000
BOLT, FLANGE (6X20)
$4.14¢2 069
1
#19
90501-MFA-D00
COLLAR (6.2X12)
$4.14¢2 069
1
#019
90501-MFA-D00
COLLAR (6.2X12)
$4.14¢2 069
1
#20
93404-06025-00
BOLT-WASHER (6X25)
$1.41¢706
1
#020
93404-06025-00
BOLT-WASHER (6X25)
$1.41¢706
1
#021
93913-14220
SCREW, TAPPING (4X12)
$1.16¢581
1
#21
93913-14220
SCREW, TAPPING (4X12)
$1.16¢581
1
#022
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#22
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#23
94101-04800
WASHER, PLAIN (4MM)
$1.27¢638
1
#023
94101-04800
WASHER, PLAIN (4MM)
$1.27¢638
1
#024
94103-05800
WASHER, PLAIN (5MM)
$1.27¢638
1
#24
94103-05800
WASHER, PLAIN (5MM)
$1.27¢638
1
#025
94103-08800
WASHER, PLAIN (8MM)
$1.21¢606
1
#25
94103-08800
WASHER, PLAIN (8MM)
$1.21¢606
1
#026
94251-05000
PIN, LOCK (5MM)
$1.34¢669
1
#26
94251-05000
PIN, LOCK (5MM)
$1.34¢669
1
