REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

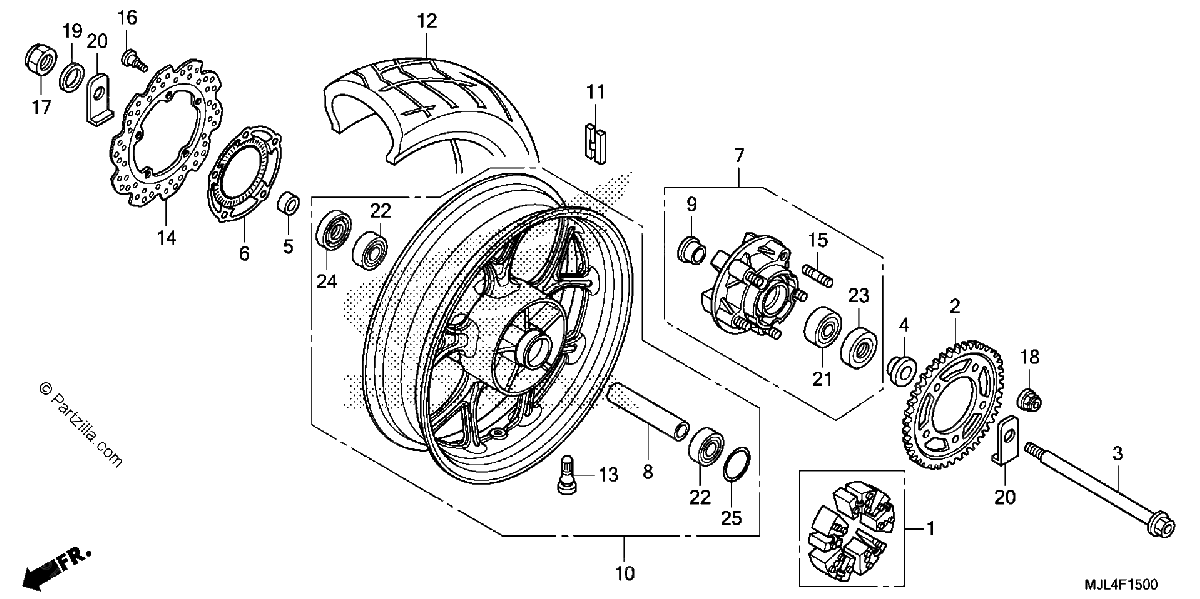

Diagrama de REAR WHEEL

Repuestos

#001
06410-MGS-D30
DAMPER SET, WHEEL
$67.19¢33 594
1
#1
06410-MGS-D30
DAMPER SET, WHEEL
$67.19¢33 594
1
#002
41201-MGS-D30
SPROCKET, FINAL DRIVEN (43T)
$83.46¢41 731
1
#2
41201-MGS-D30
SPROCKET, FINAL DRIVEN (43T)
$83.46¢41 731
1
#003
42301-MGS-D30
AXLE, RR. WHEEL
$61.22¢30 612
1
#3
42301-MGS-D30
AXLE, RR. WHEEL
$61.22¢30 612
1
#003
42301-MGS-D31
AXLE, Rear WHEEL
$61.22¢30 612
1
#004
42311-MGS-D10
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
1
#4
42311-MGS-D10
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
1
#005
42312-MGS-D10
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
1
#5
42312-MGS-D10
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
1
#7
42615-MGS-D30
FLANGE SUB-Assembly., Rear DRIVEN
$334.59¢167 294
1
#007
42615-MGS-D30
FLANGE SUB-Assembly., Rear DRIVEN
$334.59¢167 294
1
#008
42620-MGS-D10
COLLAR, RR. AXLE DISTANCE
$32.76¢16 381
1
#8
42620-MGS-D10
COLLAR, RR. AXLE DISTANCE
$32.76¢16 381
1
#9
42625-MGS-D30
COLLAR B, RR. WHEEL DISTANCE
$22.61¢11 306
1
#009
42625-MGS-D30
COLLAR B, RR. WHEEL DISTANCE
$22.61¢11 306
1
#010
42650-MJL-D30
WHEEL SUB-ASSY., RR.
$1232.64¢616 319
1
#10
42650-MJL-D30
WHEEL SUB-ASSY., RR.
$1232.64¢616 319
1
#010
42650-MJL-D31
WHEEL SUB-Assembly., Rear.
$1232.64¢616 319
1
#011
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#11
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#11
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#011
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#011
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#11
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#12
42711-MJL-D34
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
No Disponible
1
#012
42711-MJL-D35
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$250.89¢125 444
1
#012
42711-MJL-D34
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
No Disponible
1
#12
42711-MJL-D33
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$250.89¢125 444
1
#012
42711-MJL-D33
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$250.89¢125 444
1
#12
42711-MGZ-D82
TIRE, Rear. (160/60ZR17 M/C 69W)(PIRELLI)
$285.88¢142 938
1
#012
42711-MGZ-D82
TIRE, Rear. (160/60ZR17 M/C 69W)(PIRELLI)
$285.88¢142 938
1
#13
42753-MCF-008
VALVE, RIM (PIRELLI)
$9.36¢4 681
1
#013
42753-MCF-008
VALVE, RIM (PIRELLI)
$9.36¢4 681
1
#13
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#013
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#014
43251-MGS-D31
DISK, RR. BRAKE (SUNSTAR)
$437.92¢218 962
1
#14
43251-MGS-D31
DISK, RR. BRAKE (SUNSTAR)
$437.92¢218 962
1
#15
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#015
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#016
90105-MBB-000
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
1
#16
90105-MBB-000
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
1
#16
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#016
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#17
90301-MJF-A01
NUT, U (18MM)
$12.25¢6 125
1
#017
90301-MJF-A01
NUT, U (18MM)
$12.25¢6 125
1
#018
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
1
#18
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#019
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#020
90559-MER-R60
WASHER, RR. SWINGARM
$5.09¢2 544
1
#20
90559-MER-R60
WASHER, RR. SWINGARM
$5.09¢2 544
1
#021
91051-MGS-D31
BEARING, ANGULAR BALL (22X50X15)
$44.23¢22 113
1
#21
91051-MGS-D31
BEARING, ANGULAR BALL (22X50X15)
$44.23¢22 113
1
#22
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
1
#022
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
1
#023
91251-MGS-D31
DUST SEAL (30X50X7)
$14.92¢7 462
1
#23
91251-MGS-D31
DUST SEAL (30X50X7)
$14.92¢7 462
1
#24
91253-MAE-003
DUST SEAL (30X47X7.5)
$18.51¢9 256
1
#024
91253-MAE-003
DUST SEAL (30X47X7.5)
$18.51¢9 256
1
#025
91351-MGS-D30
O-RING (55X2)
$3.65¢1 825
1
#25
91351-MGS-D30
O-RING (55X2)
$3.65¢1 825
1
