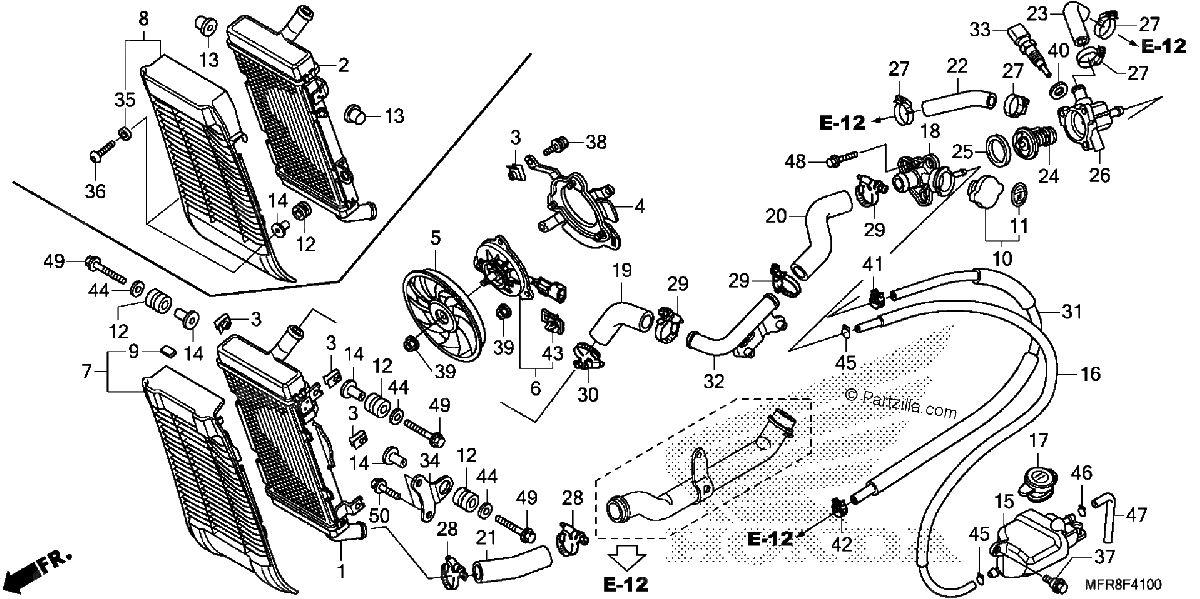

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#2
RADIATOR (COO)
$895.96¢447 981
#3
NUT, SETTING (6MM)
$3.75¢1 875
#4
SHROUD (COO)
$105.47¢52 738
#5
FAN, COOLING
$22.52¢11 263
#6
MOTOR ASSY., FAN
$365.26¢182 631
#8
GRILLE, RADIATOR
$90.09¢45 044
#10
CAP, RADIATOR
$35.16¢17 581
#11
LABEL, RADIATOR CAP
$3.65¢1 825
#12
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
#13
RUBBER, RADIATOR MOUNTING
$5.47¢2 738
#14
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#15
TANK, RADIATOR RESERVE (COO)
$52.98¢26 488
#16
TUBE, RADIATOR RESERVE TANK
$24.20¢12 100
#17
CAP, RESERVE TANK
$14.13¢7 063
#18
NECK ASSY., FILLER
$92.89¢46 444
#19
HOSE A, RADIATOR (UPPER)
$22.30¢11 150
#20
HOSE B, RADIATOR (UPPER)
$28.61¢14 306
#21
HOSE, RADIATOR (LOWER)
$15.41¢7 706
#22
HOSE, FR. OUTLET WATER
$10.82¢5 413
#23
HOSE, RR. OUTLET WATER
$10.82¢5 413
#24
THERMOSTAT ASSY.
$55.46¢27 731
#25
RUBBER, THERMOSTAT
$7.35¢3 675
#26
CASE, THERMOSTAT
$115.96¢57 981
#27
CLAMP B, WATER HOSE
$9.10¢4 550
#28
CLAMP, RADIATOR HOSE
$15.88¢7 938
#29
CLAMP, HOSE (30-37MM)
$16.15¢8 075
#30
CLAMP, HOSE
$9.86¢4 931
#31
HOSE, BYPASS
$31.05¢15 525
#32
PIPE D, WATER
$39.84¢19 919
#33
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
#35
COLLAR, STEP RUBBER SETTING
$4.41¢2 206
#36
SCREW, PAN (6X28) (G)
$4.61¢2 306
#37
BOLT, FLANGE (6MM)
$5.13¢2 563
#38
BOLT-WASHER (6X14)
$3.44¢1 719
#39
NUT, SERRATE (5MM)
$2.99¢1 494
#40
WASHER, SPECIAL (12MM)
$3.36¢1 681
#41
CLAMP, TUBE (17.5)
$2.60¢1 300
#42
CLAMP, TUBE (D12)
$10.50¢5 250
#43
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#45
CLIP, TUBE (B12)
$2.39¢1 194
#46
CLIP, TUBE (C11)
$2.11¢1 056
#47
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$27.41¢13 706
#48
BOLT, FLANGE (6X18)
$2.09¢1 044
