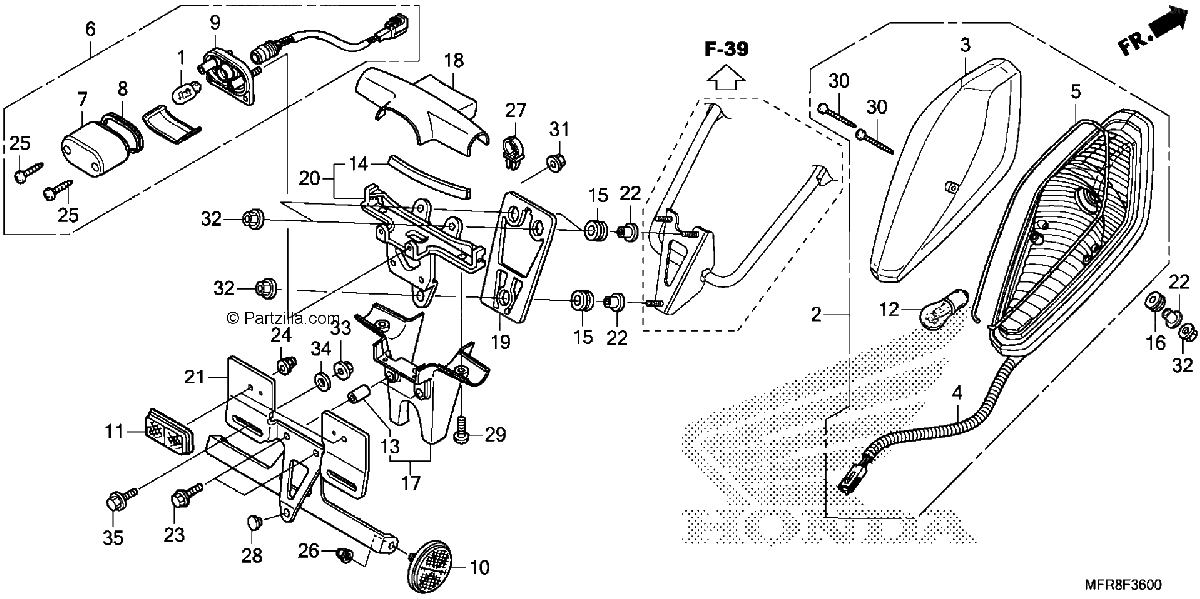

TAILLIGHT LICENSE LIGHT 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BULB (12V 5W) (STANLEY)
$4.24¢2 122
#2
TAILLIGHT ASSY. (12V 21/5W) (COO) (IMASEN)
$165.83¢82 915
#3
LENS, TAILLIGHT (COO)
$33.66¢16 830
#3
LENS, TAILLIGHT
$33.66¢16 830
#4
BASE, TAILLIGHT
$69.79¢34 897
#5
GASKET, TAILLIGHT
$7.50¢3 749
#6
LIGHT ASSY., LICENSE (12V 5W)
$113.85¢56 925
#7
COVER, LICENSE
$20.21¢10 103
#8
GASKET, LENS
$6.60¢3 301
#9
BASE, LICENSE
$16.77¢8 384
#10
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
#11
REFLECTOR, RR. REFLEX
$20.32¢10 160
#12
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.09¢5 043
#13
COLLAR, SPEEDOMETER CABLE CLAMP
$4.92¢2 461
#14
RUBBER, PROTECTOR
$5.22¢2 610
#15
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
#16
RUBBER, RR. FENDER CUSHION
$2.42¢1 208
#17
BRACKET, LICENSE LIGHT
$20.41¢10 206
#18
COVER, LICENSE LIGHT
$63.87¢31 935
#19
RUBBER, LICENSE LIGHT CUSHION
$4.54¢2 271
#20
STAY ASSY., LICENSE LIGHT
$33.22¢16 612
#21
BRACKET, NUMBER PLATE
$45.45¢22 724
#22
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
#23
BOLT, FLANGE (6X18)
$2.92¢1 461
#24
NUT, FLANGE CAP (5MM)
$6.24¢3 122
#25
SCREW, SPECIAL (4X25)
$1.83¢914
#26
NUT, U (6MM)
$7.72¢3 858
#27
CLIP, HARNESS
$2.53¢1 265
#28
PLUG, HOLE
$3.04¢1 518
#29
SCREW, PAN (5X14)
$0.98¢489
#30
SCREW, TAPPING (4X30)
$2.62¢1 311
#31
NUT, FLANGE (4MM)
$1.45¢724
#32
NUT, FLANGE (6MM)
$0.74¢368
#33
NUT, FLANGE (6MM)
$1.71¢857
#34
WASHER, PLAIN (6MM)
$0.85¢426
#35
BOLT, FLANGE (6X20)
$1.92¢960
