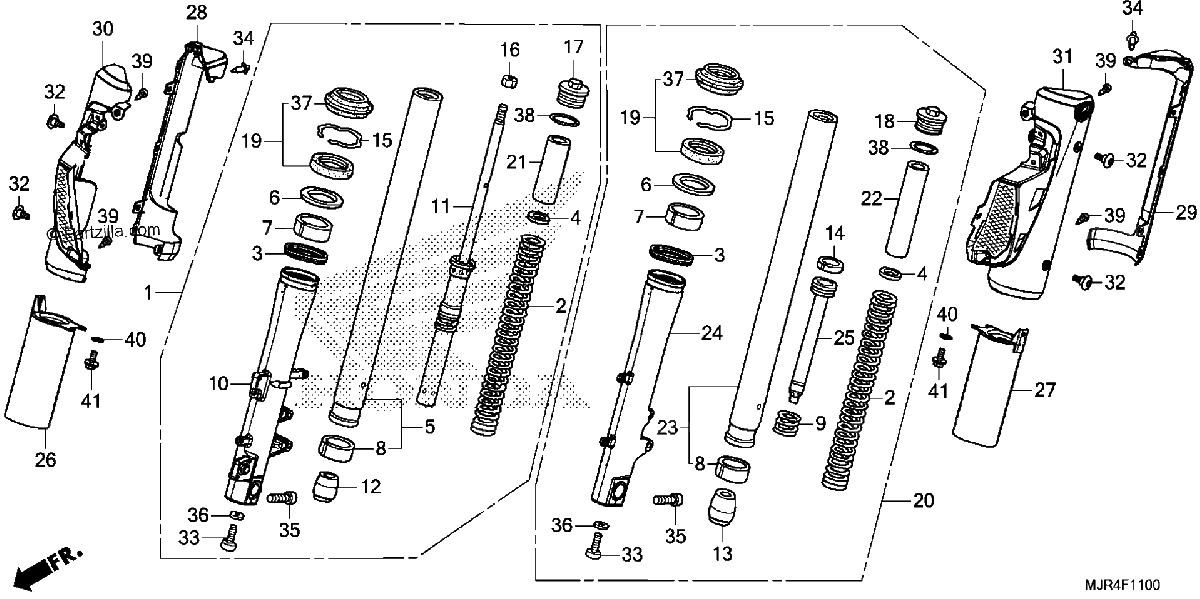

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FORK ASSY., R. FR. (COO) (SHOWA)
No Disponible
#2
SPRING, FR. FORK
$70.25¢35 125
#3
GUIDE, CASE
$5.83¢2 913
#4
SEAT, SPRING
$7.55¢3 775
#5
PIPE, R. FR. FORK
$522.27¢261 138
#6
RING, BACK-UP
$11.03¢5 513
#7
BUSH, GUIDE
$25.18¢12 588
#8
BUSH, SLIDER
$13.39¢6 694
#9
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
$18.21¢9 106
#10
CASE, R. FR. (LOWER)
$523.27¢261 638
#11
DAMPER, FR.
$521.27¢260 638
#12
PIECE, OIL LOCK
$12.31¢6 156
#13
PIECE, OIL LOCK
$19.14¢9 569
#14
RING, PISTON
$9.22¢4 613
#15
RING, OIL SEAL STOPPER
$6.20¢3 100
#16
NUT, HEX. (10MM)
$3.73¢1 863
#17
BOLT, FR. FORK
$37.56¢18 781
#18
BOLT, FR. FORK
$20.76¢10 381
#19
SEAL SET, FR. FORK
$34.85¢17 425
#20
FORK ASSY., L. FR. (COO) (SHOWA)
$1293.55¢646 775
#21
COLLAR B, SPRING
$6.29¢3 144
#22
COLLAR B, SPRING
$91.99¢45 994
#23
PIPE, L. FR. FORK
$522.27¢261 138
#24
CASE, L. FR. (LOWER)
$523.27¢261 638
#25
PIPE, SEAT
$72.31¢36 156
#26
COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$106.56¢53 281
#27
COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$111.38¢55 688
#28
COVER, R. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)
$46.28¢23 138
#29
COVER, L. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)
$46.28¢23 138
#30
COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$154.61¢77 306
#31
COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$154.61¢77 306
#32
SCREW, SPECIAL (5X15) (SUS)
$6.29¢3 144
#33
BOLT, SOCKET (8X27)
$6.21¢3 106
#34
RIVET, PUSH
$1.79¢894
#35
BOLT, SOCKET (8X32)
$2.81¢1 406
#36
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#37
DUST SEAL
$14.95¢7 475
#38
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
#39
SCREW, TAPPING (4X12)
$1.16¢581
#40
WASHER, PLAIN (6MM)
$1.21¢606
#41
BOLT, FLANGE (6X12)
$2.09¢1 044
