FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

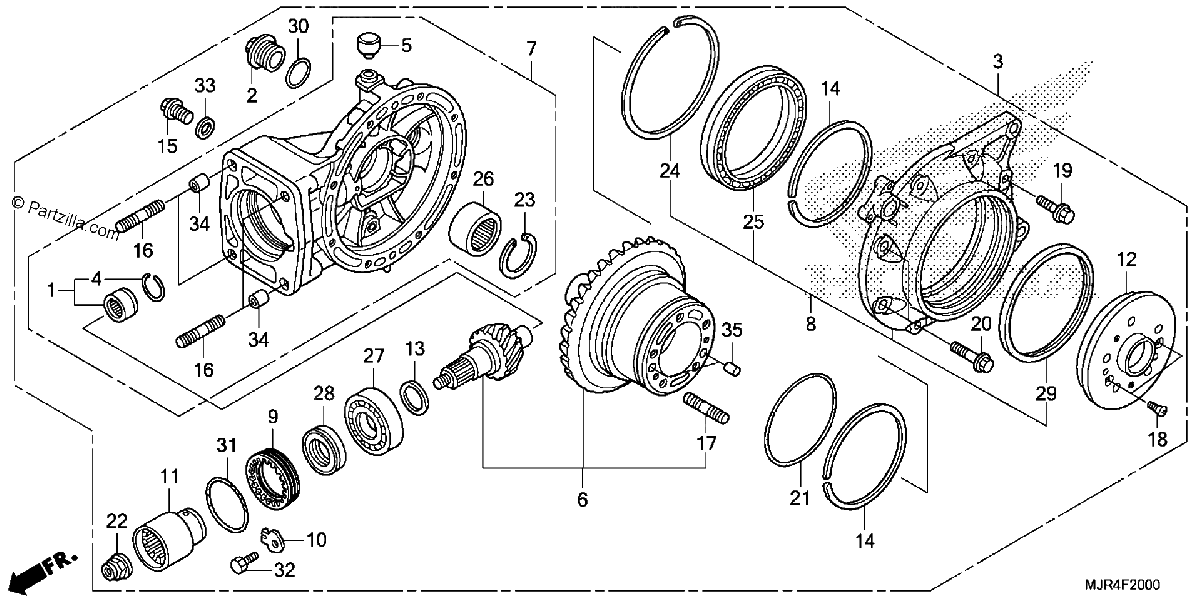

Diagrama de FINAL DRIVEN GEAR

Repuestos

#1
06910-MCA-000
BEARING SET, NEEDLE
$20.94¢10 471
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$11.51¢5 756
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#3
41300-MJR-670
GEAR ASSY., FINAL
$2505.41¢1 252 706
1
#4
41305-MB4-770
RING, STOPPER
$6.66¢3 329
1
#5
41306-MB0-020
CAP, BREATHER
$9.95¢4 974
1
#6
41310-MCA-010
GEAR SET, FINAL
$645.38¢322 690
1
#7
41311-MJR-670
CASE SUB-ASSY., FINAL GEAR
$1407.52¢703 760
1
#8
41320-MJR-670
COVER SUB-ASSY., FINAL GEAR
$342.73¢171 367
1
#9
41331-MN5-000
RETAINER, BEARING
$136.61¢68 304
1
#10
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$2.98¢1 489
1
#10
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$2.98¢1 489
1
#11
41410-MN5-000
JOINT, PINION
$66.65¢33 327
1
#12
41441-MCA-010
FLANGE, FINAL GEAR SIDE
$195.44¢97 721
1
#13
41450-MG9-000
SHIM A, PINION GEAR (1.32)
$8.50¢4 249
1
#13
41451-MG9-000
SHIM B, PINION GEAR (1.38)
$8.50¢4 249
1
#13
41452-MG9-000
SHIM C, PINION GEAR (1.44)
$8.50¢4 249
1
#13
41453-MG9-000
SHIM D, PINION GEAR (1.50)
$8.50¢4 249
1
#13
41454-MG9-000
SHIM E, PINION GEAR (1.56)
$8.50¢4 249
1
#13
41455-MG9-000
SHIM F, PINION GEAR (1.62)
$8.50¢4 249
1
#13
41456-MG9-000
SHIM G, PINION GEAR (1.68)
$8.50¢4 249
1
#14
41547-MCA-000
SHIM S, RING GEAR (1.76)
$10.06¢5 031
1
#14
41546-MCA-000
SHIM R, RING GEAR (1.70)
$10.20¢5 100
1
#14
41542-MCA-000
SHIM M, RING GEAR (2.54)
$6.01¢3 007
1
#14
41541-MCA-000
SHIM L, RING GEAR (2.48)
$9.29¢4 646
1
#14
41540-MCA-000
SHIM K, RING GEAR (2.42)
$9.29¢4 646
1
#14
41539-MCA-000
SHIM J, RING GEAR (2.36)
$9.29¢4 646
1
#14
41538-MCA-000
SHIM I, RING GEAR (2.30)
$9.29¢4 646
1
#14
41537-MCA-000
SHIM H, RING GEAR (2.24)
$9.29¢4 646
1
#14
41536-MCA-000
SHIM G, RING GEAR (2.18)
$9.29¢4 646
1
#14
41535-MCA-000
SHIM F, RING GEAR (2.12)
$9.29¢4 646
1
#14
41534-MCA-000
SHIM E, RING GEAR (2.06)
$9.29¢4 646
1
#14
41533-MCA-000
SHIM D, RING GEAR (2.00)
$9.29¢4 646
1
#14
41532-MCA-000
SHIM C, RING GEAR (1.94)
$9.29¢4 646
1
#14
41531-MCA-000
SHIM B, RING GEAR (1.88)
$9.29¢4 646
1
#14
41530-MCA-000
SHIM A, RING GEAR (1.82)
$9.29¢4 646
1
#15
90118-MCH-000
BOLT, PLUG (14MM)
$7.57¢3 783
1
#16
90124-MCA-300
BOLT, STUD (12X53)
$5.93¢2 967
1
#17
90125-MCA-300
BOLT, STUD (12X46)
$5.03¢2 513
1
#18
90132-MCA-000
SCREW, FLAT (6X16)
$1.71¢857
1
#19
90133-MCA-000
BOLT, FLANGE (8X30)
$0.93¢466
1
#20
90134-MCA-000
BOLT, FLANGE (10X38)
$2.94¢1 472
1
#21
90351-MCA-003
O-RING
$6.49¢3 243
1
#22
90381-MT3-000
NUT, HEX. (16MM)
$8.07¢4 036
1
#23
90652-MCA-003
CIRCLIP (INNER) (47MM)
$5.15¢2 576
1
#24
90653-MCA-000
CIRCLIP (INNER) (125MM)
$23.26¢11 632
1
#25
91051-MCA-003
BEARING, RADIAL BALL (100X125X26)
$140.36¢70 179
1
#26
91052-MCA-003
BEARING, NEEDLE (30X47X23)
$36.56¢18 279
1
#27
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$72.50¢36 248
1
#28
91262-MY3-003
OIL SEAL (39X56X7) (NOK)
$14.39¢7 193
1
#29
91265-MCA-003
OIL SEAL (110X125X7)
$23.20¢11 598
1
#30
91302-001-020
O-RING (30.8MM)
$4.17¢2 087
1
#31
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.04¢2 519
1
#32
92101-06012-0A
BOLT, HEX. (6X12)
$1.68¢839
1
#33
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.74¢368
1
#34
94301-14200
PIN, DOWEL (14X20)
$2.70¢1 351
1
#35
94303-10160
PIN, DOWEL (10X16)
$2.92¢1 461
1
