STEP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

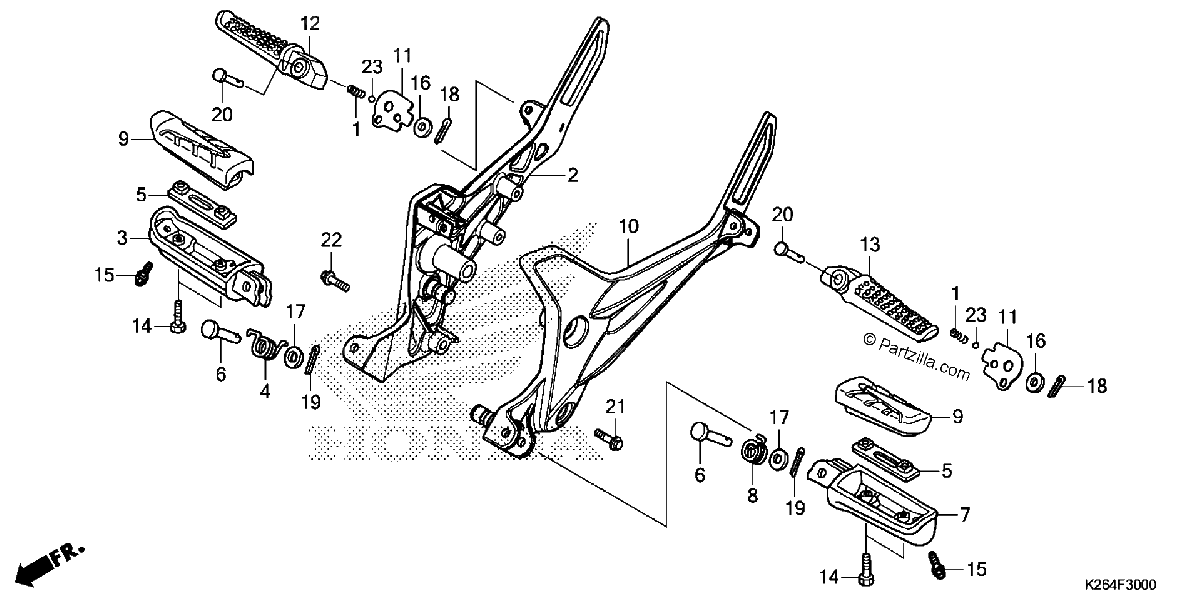

Diagrama de STEP

Repuestos

#1
28333-300-000
SPRING, KICK STARTER STOPPER
$3.36¢1 679
1
#2
50600-K26-900
HOLDER, R. STEP
$62.78¢31 389
1
#3
50612-KYJ-305
ARM, R. STEP (COO)
$27.88¢13 938
1
#3
50612-MM5-000
ARM, R. STEP
$27.88¢13 938
1
#4
50617-445-840
SPRING, R. STEP RETURN
$6.08¢3 042
1
#5
50619-MM5-000
PLATE, STEP SETTING
$8.83¢4 416
1
#6
50639-ML0-010
PIN, STEP BAR
$5.65¢2 823
1
#7
50642-KYJ-305
ARM, L. STEP (COO)
$27.88¢13 938
1
#7
50642-MM5-000
ARM, L. STEP
$27.88¢13 938
1
#8
50644-445-840
SPRING, L. STEP RETURN
$6.08¢3 042
1
#9
50661-KYJ-305
RUBBER, MAIN STEP (COO)
$14.86¢7 429
1
#9
50661-KYJ-900
RUBBER, MAIN STEP
$14.86¢7 429
1
#10
50700-K26-900
HOLDER, L. STEP
$52.74¢26 370
1
#11
50718-MEE-000
PLATE, PILLION STEP CLICK
$3.36¢1 679
1
#12
50720-K26-305
BAR, R. PILLION STEP (COO)
$48.38¢24 190
1
#13
50730-K26-305
BAR, L. PILLION STEP (COO)
$48.38¢24 190
1
#14
90115-MV9-000
BOLT, MAIN STEP RUBBER SETTING
$4.09¢2 047
1
#15
92501-08008-0A
BOLT, CAP (8X8)
$1.33¢667
1
#16
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#16
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#16
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#17
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#18
94201-16120
PIN, SPLIT (1.6X12)
$1.23¢615
1
#19
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#20
95015-83000
PIN C, PILLION STEP
$2.85¢1 426
1
#21
95701-08030-00
BOLT, FLANGE (8X30)
$1.33¢667
1
#22
95701-08035-00
BOLT, FLANGE (8X35)
$2.71¢1 357
1
#23
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
