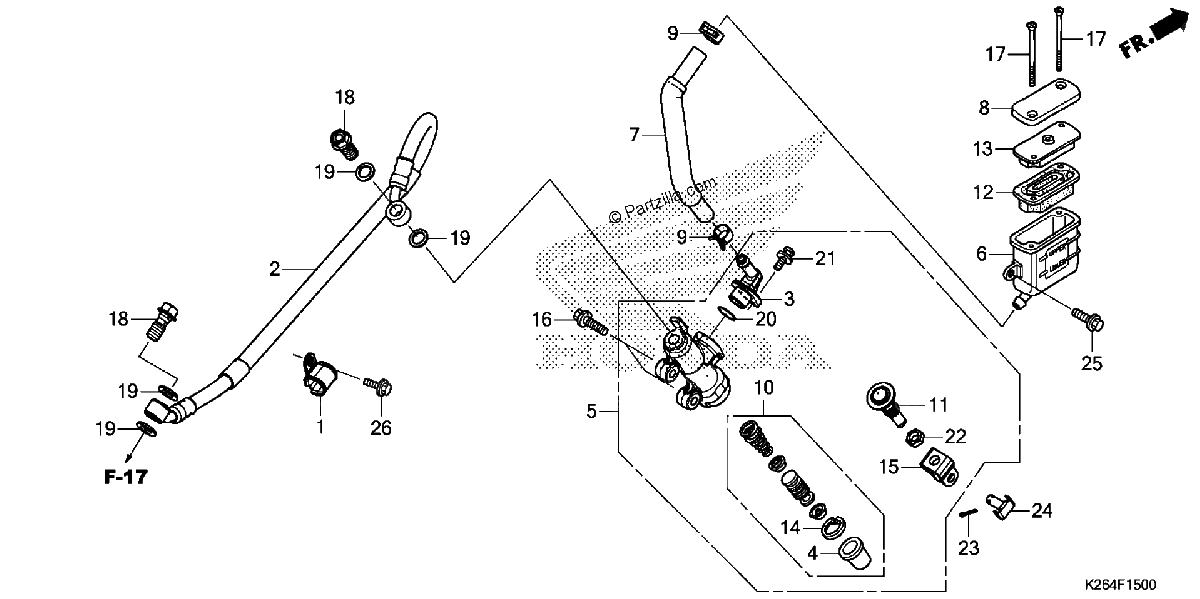

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP, RR. BRAKE HOSE
$3.06¢1 529
#2
HOSE, RR. BRAKE
$27.81¢13 904
#3
CONNECTOR
$15.00¢7 498
#4
BOOT
$10.80¢5 399
#5
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)
$134.31¢67 154
#6
CUP, OIL (NISSIN)
$21.47¢10 735
#7
HOSE, RR. MASTER CYLINDER
$17.25¢8 625
#8
CAP, MASTER CYLINDER
$7.11¢3 553
#9
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#10
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#11
ROD, PUSH
$27.04¢13 518
#12
DIAPHRAGM
$8.13¢4 065
#13
PLATE, DIAPHRAGM
$6.39¢3 197
#14
CIRCLIP
$2.30¢1 150
#15
JOINT, BRAKE ROD
$8.74¢4 370
#16
BOLT, FLANGE (6X22)
$1.68¢839
#17
SCREW, FLAT (4X45)
$6.80¢3 398
#18
BOLT, OIL (10X22)
$8.18¢4 088
#19
WASHER, OIL BOLT
$4.46¢2 231
#20
O-RING (14.8X2.4)
$3.04¢1 518
#21
SCREW-WASHER (4X12)
$1.59¢793
#21
SCREW-WASHER (4X12)
$1.59¢793
#22
NUT, HEX. (8MM)
$1.47¢736
#23
PIN, SPLIT (2.0X12)
$1.17¢586
#24
PIN D, JOINT
$4.74¢2 369
#25
BOLT, FLANGE (6X14)
$1.13¢564
#26
BOLT, FLANGE (6X10)
$1.92¢960
