MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

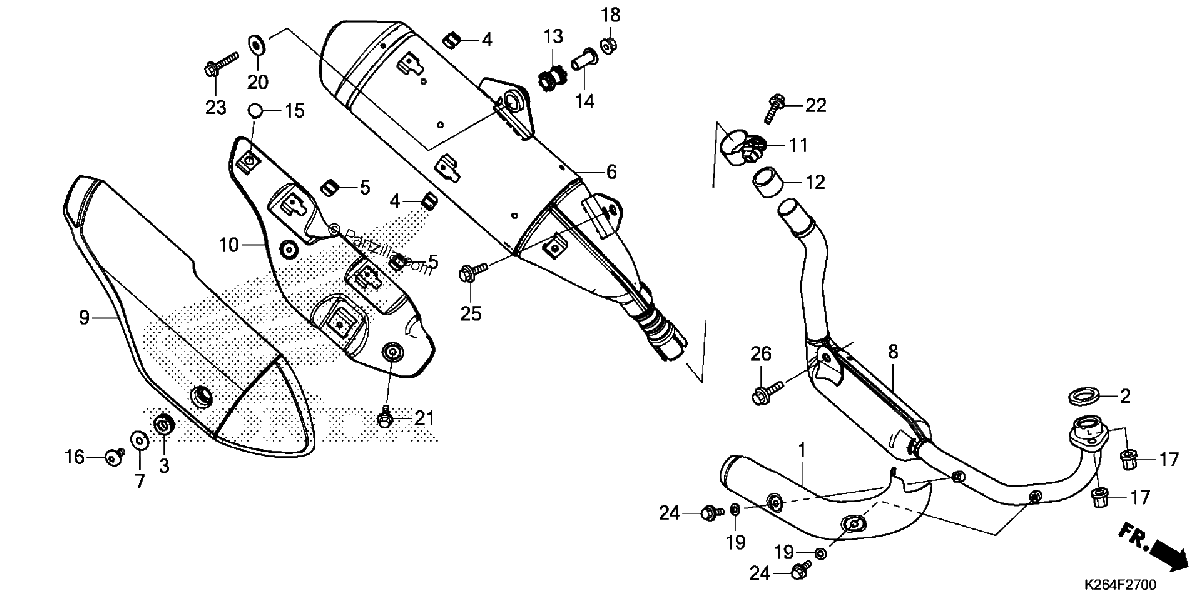

Diagrama de MUFFLER

Repuestos

#1
18240-K26-305
COVER, EX. PIPE (COO)
$19.84¢9 919
1
#2
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#3
18293-KSB-900
RUBBER, PROTECTOR GASKET
$1.91¢954
1
#4
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#5
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#6
18310-K26-305
MUFFLER (COO)
$366.06¢183 028
1
#7
18316-K26-900
COLLAR, MUFFLER PROTECTOR
$4.90¢2 449
1
#8
18320-K26-901
PIPE, EX.
$257.49¢128 743
1
#9
18355-K26-900
PROTECTOR, MUFFLER
$12.76¢6 382
1
#10
18356-K26-900
COVER A, MUFFLER
$36.98¢18 492
1
#11
18371-K26-900
BAND, MUFFLER
$43.88¢21 942
1
#12
18391-HB7-000
GASKET, MUFFLER
$11.98¢5 991
1
#13
18421-K26-900
RUBBER, MUFFLER MOUNTING
$0.97¢483
1
#14
18422-K26-900
COLLAR, MUFFLER MOUNTING
$4.86¢2 432
1
#15
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#16
90107-K26-900
BOLT, SPECIAL (6X16)
$1.26¢633
1
#17
90301-KWB-600
NUT, FLANGE (8MM)
$1.03¢518
1
#18
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#19
94101-06200
WASHER, PLAIN (6MM)
$0.80¢402
1
#20
94103-08200
WASHER, PLAIN (8MM)
$0.76¢380
1
#21
95701-06010-00
BOLT, FLANGE (6X10)
$1.49¢747
1
#22
95701-08032-02
BOLT, FLANGE (8X32)
$1.54¢771
1
#23
95701-08040-02
BOLT, FLANGE (8X40)
$1.63¢816
1
#24
96001-06008-02
BOLT, FLANGE (6X8)
$1.83¢914
1
#25
96300-08016-04
BOLT, FLANGE (8X16) (DR)
$0.76¢380
1
#26
96300-08025-04
BOLT, FLANGE (8X25) (DR)
$0.89¢443
1
