THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

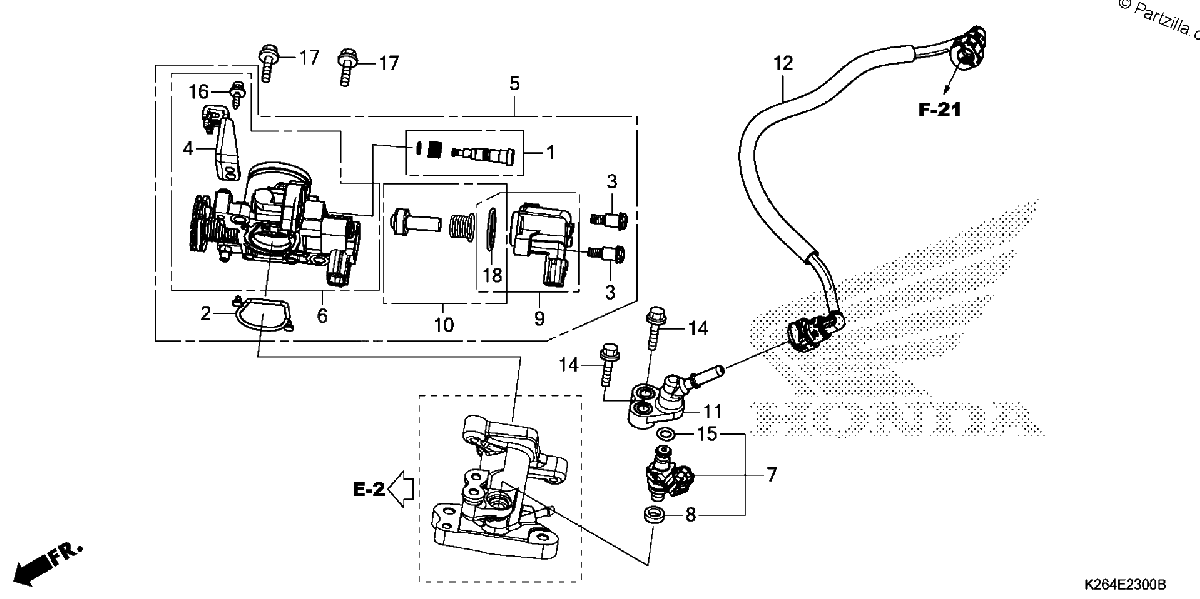

Diagrama de THROTTLE BODY

Repuestos

#1
16016-KVB-S51
SCREW SET
$7.11¢3 556
1
#2
16075-KYZ-711
O-RING
$4.39¢2 194
1
#3
16081-KPH-701
SCREW, TORX (5X8.7)
$3.66¢1 831
1
#4
16169-K26-901
STAY, WIRE
$25.04¢12 519
1
#5
16400-K26-921
BODY ASSY., THROTTLE (GQY9A A)
$243.44¢121 719
1
#6
16410-K26-921
BODY SET
$164.75¢82 375
1
#7
16450-K25-901
INJECTOR ASSY., FUEL
$52.54¢26 269
1
#8
16472-KPC-D50
RING, SEAL
$2.75¢1 375
1
#9
16480-KVB-S51
SOLENOID
$53.11¢26 556
1
#10
16485-KVB-S51
SEAT SET
$65.29¢32 644
1
#11
17560-K26-900
JOINT, INJECTOR
$53.14¢26 569
1
#12
17570-K26-901
HOSE, FUEL FEED
$29.63¢14 813
1
#14
90001-K26-900
BOLT, FLANGE (6X22)
$7.81¢3 906
1
#15
91301-GGL-J01
O-RING (6.3X2.2)
$12.15¢6 075
1
#16
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#16
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#17
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#18
16077-KVB-S51
O-RING (1.9X20.4)
$1.76¢881
1
