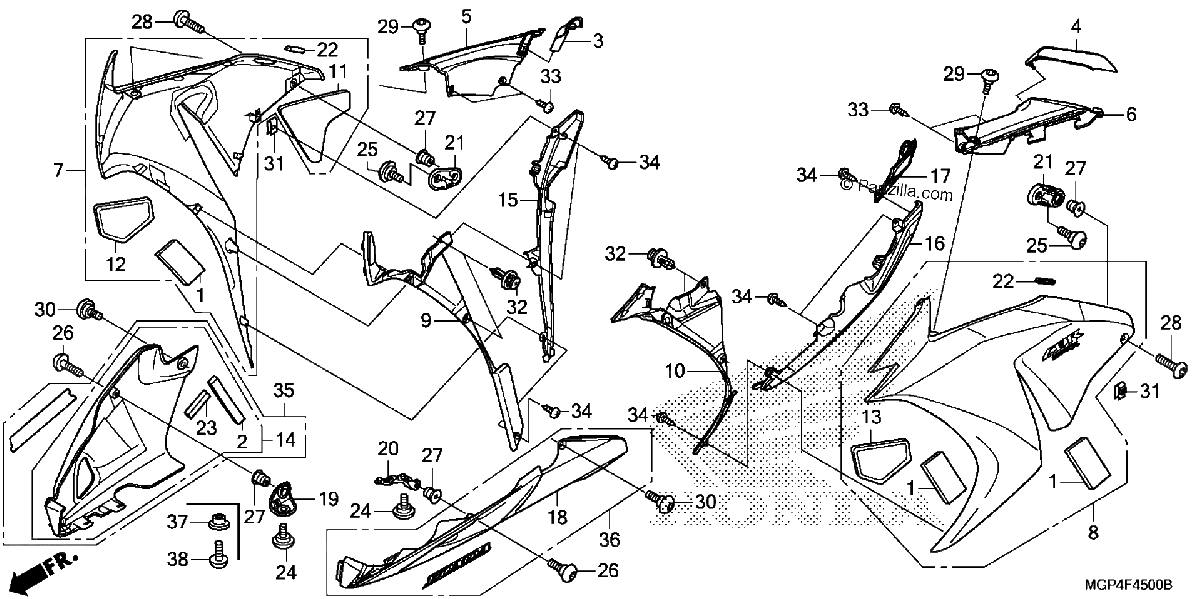

MIDDLE COWL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAT, CARBURETOR COVER
$4.63¢2 313
#2
MAT, L. ENGINE HANGER
$2.44¢1 219
#3
RUBBER, R. DUCT COVER SEAL
$36.60¢18 300
#4
RUBBER, L. DUCT COVER SEAL
$36.60¢18 300
#5
COVER, R. AIR DUCT
$23.26¢11 631
#6
COVER, L. AIR DUCT
$19.91¢9 956
#7
COWL SET, R. MIDDLE (TYPE1) (WL)
$857.02¢428 513
#8
COWL SET, L. MIDDLE (TYPE1) (WL)
$857.02¢428 513
#9
COWL, R. MIDDLE (INNER)
$25.43¢12 713
#10
COWL, L. MIDDLE (INNER)
$30.51¢15 256
#11
MAT B, R. MIDDLE COWL
$23.85¢11 925
#12
MAT C, R. MIDDLE COWL
$22.50¢11 250
#13
MAT C, L. MIDDLE COWL
$22.50¢11 250
#15
COWL, R. LAYER
$53.15¢26 575
#16
COWL, L. LAYER
$62.53¢31 263
#17
COVER, L. LAYER
$9.16¢4 581
#19
STAY, R. COWL (LOWER)
$4.33¢2 163
#20
STAY, L. COWL (LOWER)
$4.33¢2 163
#21
STAY, MIDDLE COWL
$3.65¢1 825
#22
PROTECTOR, RUBBER
$2.24¢1 119
#23
MAT, AIR CLEANER SIDE COVER
$4.36¢2 181
#25
SCREW, SPECIAL (6MM)
$2.88¢1 438
#26
SCREW, PAN (5X15)
$2.73¢1 363
#27
NUT, COWL SETTING (5MM)
$5.47¢2 738
#28
SCREW, PAN (5X15)
$2.70¢1 350
#29
SCREW, SPECIAL (5X14)
$2.63¢1 313
#30
SCREW, PAN (6X14)
$2.64¢1 319
#31
NUT, SPRING (4MM)
$6.40¢3 200
#32
CLIP, BODY COVER
$3.65¢1 825
#33
SCREW, TAPPING (4X10)
$1.74¢869
#34
SCREW, TAPPING (4X12)
$1.16¢581
#35
COWL SET, R. (LOWER) (TYPE1) (WL)
$374.84¢187 419
#36
COWL ASSY., L. (LOWER) (TYPE1) (WL)
$443.27¢221 638
#37
COLLAR, SEAT SETTING
$3.65¢1 825
#38
BOLT, SPECIAL (6X17)
$4.44¢2 219
