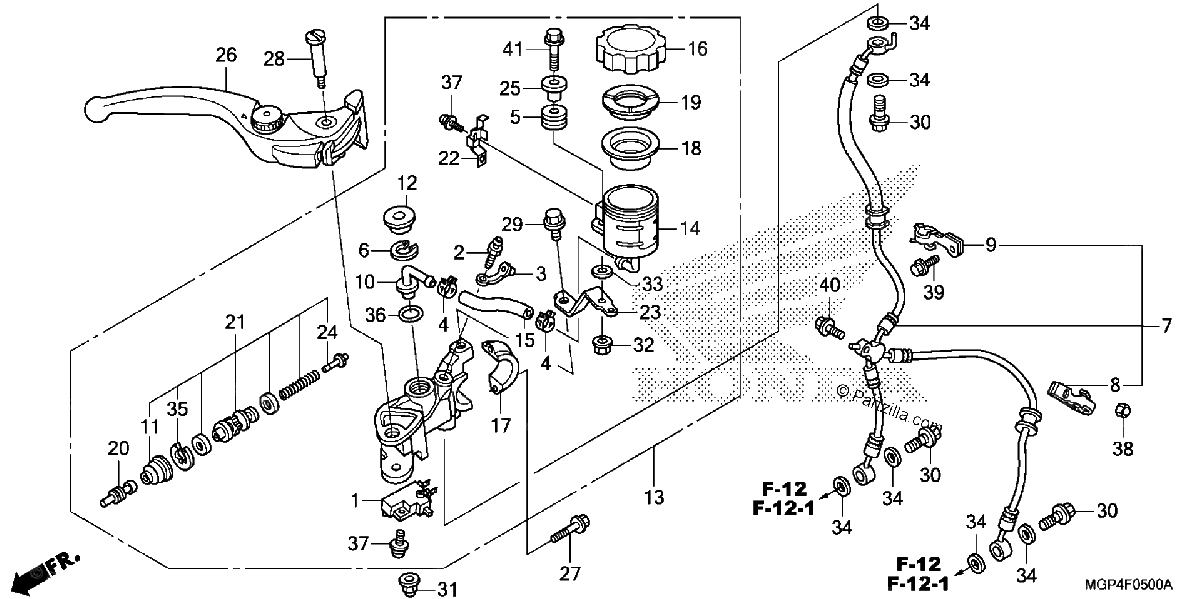

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#2
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
#3
CAP, BLEEDER
$5.63¢2 818
#4
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#5
RUBBER, OIL CUP
$5.51¢2 754
#6
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#7
HOSE, FR. BRAKE
$140.92¢70 461
#8
CLAMP A, FR. BRAKE HOSE
$4.31¢2 156
#9
CLAMP B, FR. BRAKE HOSE
$4.42¢2 208
#10
CONNECTOR, MASTER CYLINDER
$10.11¢5 054
#11
BOOT
$14.06¢7 032
#12
COVER, DUST
$4.63¢2 317
#13
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$338.70¢169 349
#14
CUP, OIL
$10.58¢5 290
#15
HOSE, MASTER CYLINDER OIL
$6.00¢3 001
#16
CAP, OIL CUP
$19.68¢9 838
#17
HOLDER, MASTER CYLINDER
$12.68¢6 342
#18
DIAPHRAGM
$9.74¢4 870
#19
PLATE, DIAPHRAGM
$4.52¢2 260
#20
ROD, PUSH
$15.69¢7 843
#21
MASTER CYLINDER SET
$57.42¢28 710
#22
PLATE, STOP
$6.08¢3 042
#23
STAY, FR. MASTER CYLINDER
$7.41¢3 703
#24
GUIDE, SPRING
$5.26¢2 628
#25
COLLAR (6.3X13)
$5.40¢2 702
#26
LEVER ASSY., R. HANDLE (COO)
$54.39¢27 197
#27
BOLT, FLANGE (6X22)
$1.70¢851
#28
BOLT, HANDLE LEVER
$6.49¢3 243
#29
BOLT, FLANGE (6X12)
$3.53¢1 765
#30
BOLT, OIL (10X22)
$8.18¢4 088
#31
NUT, CAP (6MM)
$2.54¢1 271
#32
NUT, U (6MM)
$7.72¢3 858
#33
WASHER (6X16)
$1.56¢782
#34
WASHER, OIL BOLT
$4.46¢2 231
#35
CIRCLIP
$2.68¢1 340
#36
O-RING (14.8X2.4)
$3.04¢1 518
#37
SCREW-WASHER (4X12)
$1.59¢793
#37
SCREW-WASHER (4X12)
$1.59¢793
#38
NUT, CAP (6MM)
$1.83¢914
#39
BOLT, FLANGE (6X12)
$2.13¢1 064
#40
BOLT, FLANGE (6X18)
$1.49¢747
#41
BOLT, FLANGE (6X28)
$2.13¢1 064
