FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

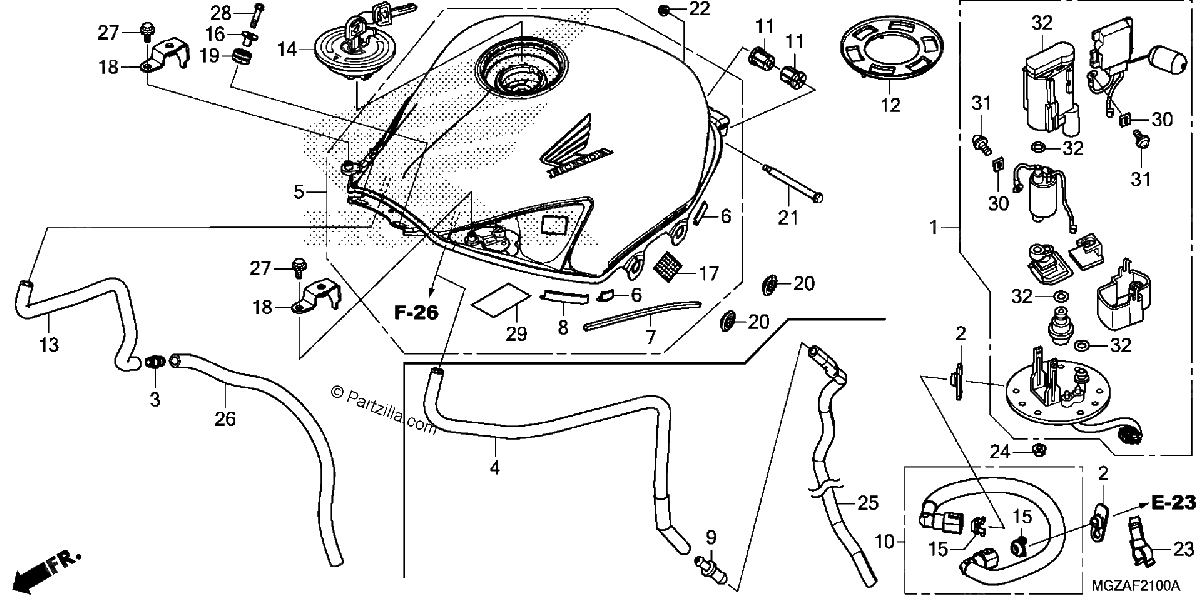

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#001
16700-MGZ-J01
PUMP ASSY., FUEL (MSDS)
$842.78¢421 389
1
#1
16700-MGZ-J02
PUMP Assembly., FUEL
$842.78¢421 389
1
#001
16700-MGZ-J02
PUMP Assembly., FUEL
$842.78¢421 389
1
#001
16700-MGZ-J03
PUMP Assembly., FUEL
$842.78¢421 389
1
#001
16700-MGZ-J04
PUMP Assembly., FUEL (MSDS)
$842.78¢421 389
1
#1
16700-MGZ-J01
PUMP ASSY., FUEL (MSDS)
$842.78¢421 389
1
#2
16719-MEW-920
DAMPER, CONNECTOR
$3.36¢1 679
1
#002
16719-MEW-920
DAMPER, CONNECTOR
$3.36¢1 679
1
#003
17359-419-670
JOINT, BREATHER TUBE
$2.43¢1 213
1
#3
17359-419-670
JOINT, BREATHER TUBE
$2.43¢1 213
1
#4
17418-MGZ-J00
TUBE, FUEL TANK BREATHER
$12.59¢6 296
1
#004
17418-MGZ-J00
TUBE, FUEL TANK BREATHER
$12.59¢6 296
1
#5
17500-MGZ-J41ZC
TANK Assembly., FUEL (TYPE1) (WL)
$920.98¢460 489
1
#005
17500-MGZ-J41ZC
TANK Assembly., FUEL (TYPE1) (WL)
$920.98¢460 489
1
#006
17501-MGZ-J00
RUBBER, FUEL TANK
$8.05¢4 025
1
#6
17501-MGZ-J00
RUBBER, FUEL TANK
$8.05¢4 025
1
#7
17502-MGZ-J40
RUBBER, TANK BODY
$4.71¢2 357
1
#007
17502-MGZ-J40
RUBBER, TANK BODY
$4.71¢2 357
1
#008
17521-KY1-300
SEAL, TANK
$2.74¢1 368
1
#8
17521-KY1-300
SEAL, TANK
$2.74¢1 368
1
#009
17561-KVG-900
JOINT, FUEL TUBE
$2.28¢1 138
1
#9
17561-KVG-900
JOINT, FUEL TUBE
$2.28¢1 138
1
#10
17570-MGZ-J01
HOSE, FUEL FEED
$72.63¢36 317
1
#010
17570-MGZ-J01
HOSE, FUEL FEED
$72.63¢36 317
1
#11
17572-KPP-T00
CUSHION, RR. FUEL TANK PIVOT
$2.74¢1 368
1
#011
17572-KPP-T00
CUSHION, RR. FUEL TANK PIVOT
$2.74¢1 368
1
#12
17574-MGS-D30
GASKET, BASE
$26.09¢13 047
1
#012
17574-MGS-D30
GASKET, BASE
$26.09¢13 047
1
#013
17590-MGZ-J00
TUBE, FUEL TANK DRAIN
$10.23¢5 118
1
#13
17590-MGZ-J00
TUBE, FUEL TANK DRAIN
$10.23¢5 118
1
#014
17620-MCB-612
CAP, FUEL FILLER
$147.46¢73 732
1
#14
17620-MCB-611
CAP, FUEL FILLER
$147.46¢73 732
1
#014
17620-MCB-611
CAP, FUEL FILLER
$147.46¢73 732
1
#15
17711-MGE-003
RETAINER
$7.07¢3 536
1
#015
17711-MGE-003
RETAINER
$7.07¢3 536
1
#16
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#016
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#017
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#17
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#018
64431-MGZ-J41
STAY, COWL (INNER)
$1.53¢765
1
#18
64431-MGZ-J41
STAY, COWL (INNER)
$1.53¢765
1
#019
77208-KW7-900
RUBBER B, SEAT MOUNTING
$3.66¢1 829
1
#19
77208-KW7-900
RUBBER B, SEAT MOUNTING
$3.66¢1 829
1
#20
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#020
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#021
90135-MS2-000
BOLT, TANK HINGE
$6.95¢3 473
1
#21
90135-MS2-000
BOLT, TANK HINGE
$6.95¢3 473
1
#22
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.64¢822
1
#022
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.64¢822
1
#23
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.68¢1 340
1
#023
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.68¢1 340
1
#24
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#024
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#25
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
#025
95005-75001-20M
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X500)
$24.14¢12 069
1
#026
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$25.73¢12 863
1
#26
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$25.73¢12 863
1
#27
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#027
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#028
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
#28
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
#029
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#29
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#030
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#30
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#031
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#31
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#032
16730-MKA-D83
FILTER Assembly., FUEL
$45.18¢22 592
1
#032
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#32
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#032
16730-MKA-D82
FILTER Assembly., FUEL
$45.18¢22 592
1
#032
16730-MKT-D01
FILTER Assembly., FUEL
$45.18¢22 592
1
