FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

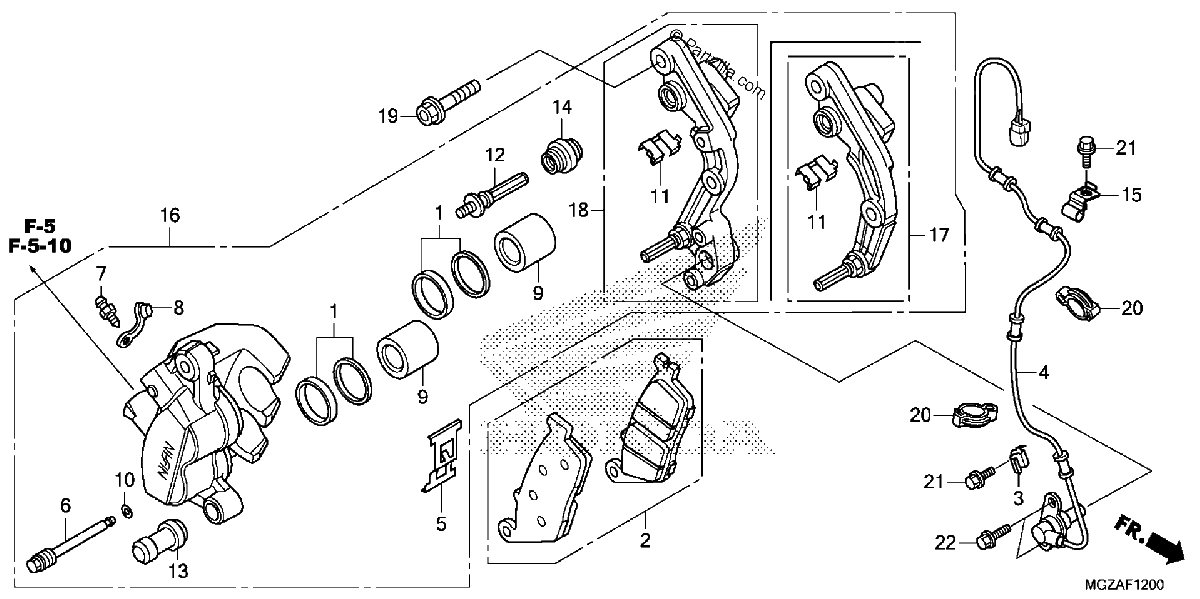

Diagrama de FRONT BRAKE CALIPER

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#002
06455-MGS-D31
PAD SET, FR.
No Disponible
1
#2
06455-MGS-D31
PAD SET, FR.
No Disponible
1
#002
06455-MGS-D32
PAD SET, FR.
$58.69¢29 344
1
#003
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.64¢3 319
1
#3
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.64¢3 319
1
#004
38520-MGZ-J11
SENSOR, FR. WHEEL SPEED
$125.64¢62 819
1
#4
38520-MGZ-J11
SENSOR, FR. WHEEL SPEED
$125.64¢62 819
1
#005
43108-MCT-006
SPRING, PAD
$5.96¢2 981
1
#5
43108-MCT-006
SPRING, PAD
$5.96¢2 981
1
#6
43215-KZ4-J41
PIN, HANGER
$6.38¢3 188
1
#006
43215-KZ4-J41
PIN, HANGER
$6.38¢3 188
1
#7
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#007
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#8
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#008
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#009
45107-ML4-006
PISTON
$43.96¢21 981
1
#9
45107-ML4-006
PISTON
$43.96¢21 981
1
#010
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#10
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#11
45112-ML7-921
RETAINER
$6.61¢3 306
1
#011
45112-ML7-921
RETAINER
$6.61¢3 306
1
#012
45131-ML7-921
BOLT A, PIN
$17.94¢8 969
1
#12
45131-ML7-921
BOLT A, PIN
$17.94¢8 969
1
#13
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#013
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#14
45133-MA3-006
BOOT B
$6.61¢3 306
1
#014
45133-MA3-006
BOOT B
$6.61¢3 306
1
#015
45159-MGZ-J00
CLAMP, SENSOR CORD
$1.76¢881
1
#15
45159-MGZ-J00
CLAMP, SENSOR CORD
$1.76¢881
1
#016
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$227.31¢113 656
1
#16
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$227.31¢113 656
1
#018
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$64.24¢32 119
1
#18
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$64.24¢32 119
1
#019
90131-KZZ-900
BOLT, FLANGE (8X32)
$1.06¢531
1
#19
90131-KZZ-900
BOLT, FLANGE (8X32)
$1.06¢531
1
#020
90690-MCA-003
CLIP, CABLE (14MM)
$2.27¢1 138
1
#20
90690-MCA-003
CLIP, CABLE (14MM)
$2.27¢1 138
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#021
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#022
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#22
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
