TURN SIGNAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

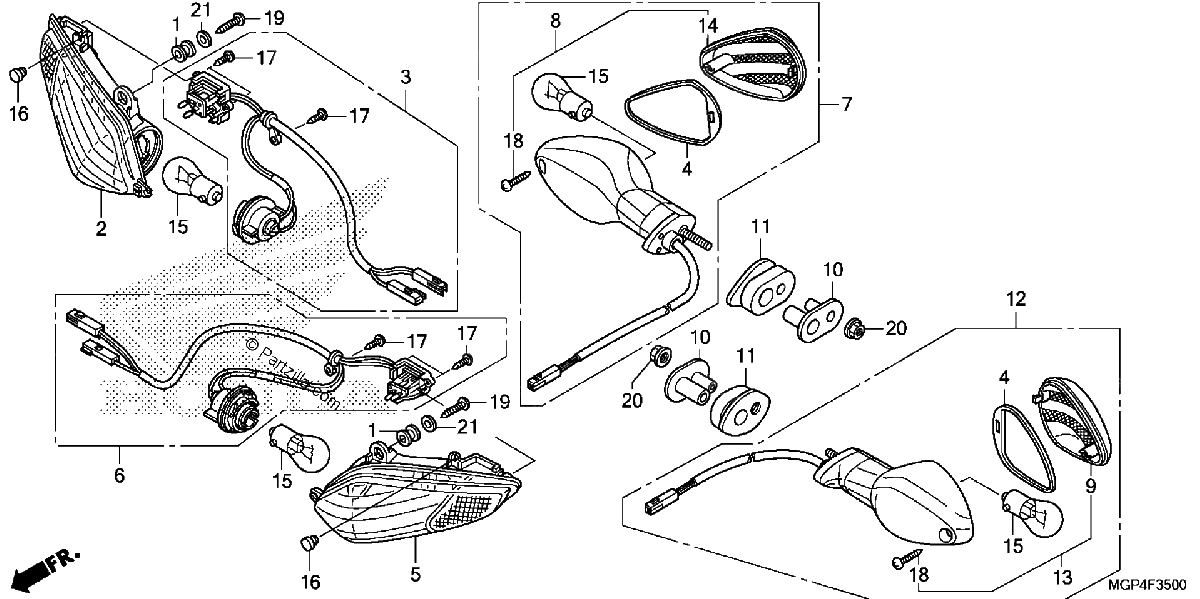

Diagrama de TURN SIGNAL

Repuestos

#001
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.36¢1 679
1
#1
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.36¢1 679
1
#002
33403-MFL-305
LENS, R. (COO)
$47.47¢23 736
1
#2
33403-MFL-305
LENS, R. (COO)
$47.47¢23 736
1
#002
33403-MFL-671
LENS, R.
$47.47¢23 736
1
#003
33405-MFL-671
SOCKET, R.
$85.04¢42 521
1
#3
33405-MFL-671
SOCKET, R.
$85.04¢42 521
1
#004
33407-MFJ-A41
GASKET, LENS
$3.71¢1 857
1
#4
33407-MFJ-A41
GASKET, LENS
$3.71¢1 857
1
#005
33453-MFL-305
LENS, L. (COO)
$47.47¢23 736
1
#5
33453-MFL-305
LENS, L. (COO)
$47.47¢23 736
1
#005
33453-MFL-671
LENS, L.
$47.47¢23 736
1
#006
33455-MFL-671
SOCKET, L.
$85.04¢42 521
1
#6
33455-MFL-671
SOCKET, L.
$85.04¢42 521
1
#007
33600-MFL-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$150.67¢75 337
1
#7
33600-MFL-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$150.67¢75 337
1
#007
33600-MFL-694
TURN SIGNAL Assembly., Right Rear. (12V 21W)
$150.67¢75 337
1
#9
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#9
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#009
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#009
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#009
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#9
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#009
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#9
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#010
33611-MEL-D20
COLLAR, TURN SIGNAL
$5.73¢2 864
1
#10
33611-MEL-D20
COLLAR, TURN SIGNAL
$5.73¢2 864
1
#011
33612-MEL-D20
RUBBER, TURN SIGNAL MOUNTING
$4.89¢2 444
1
#11
33612-MEL-D20
RUBBER, TURN SIGNAL MOUNTING
$4.89¢2 444
1
#12
33650-MFL-315
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$130.25¢65 125
1
#012
33650-MFL-315
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$130.25¢65 125
1
#012
33650-MFL-694
TURN SIGNAL Assembly., L Rear. (12V 21W)
$130.25¢65 125
1
#014
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#14
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#014
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#14
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#14
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#014
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#014
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$13.77¢6 883
1
#14
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$13.77¢6 883
1
#15
34905-MEJ-671
BULB, TURN SIGNAL (12V 21W)
$4.66¢2 329
1
#015
34905-MEJ-671
BULB, TURN SIGNAL (12V 21W)
$4.66¢2 329
1
#16
60107-752-000
RUBBER, FUEL LID STOPPER
$3.46¢1 731
1
#016
60107-752-000
RUBBER, FUEL LID STOPPER
$3.46¢1 731
1
#17
90101-MFL-641
SCREW, TAPPING (3X12)
$2.33¢1 167
1
#017
90101-MFL-641
SCREW, TAPPING (3X12)
$2.33¢1 167
1
#018
93901-344G0
SCREW, TAPPING (4X16)
$2.06¢1 029
1
#18
93901-344G0
SCREW, TAPPING (4X16)
$2.06¢1 029
1
#019
93913-24320
SCREW, TAPPING (4X14)
$1.03¢518
1
#19
93913-24320
SCREW, TAPPING (4X14)
$1.03¢518
1
#020
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#20
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#21
94103-04800
WASHER, PLAIN (4MM)
$1.17¢586
1
#021
94103-04800
WASHER, PLAIN (4MM)
$1.17¢586
1
