CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

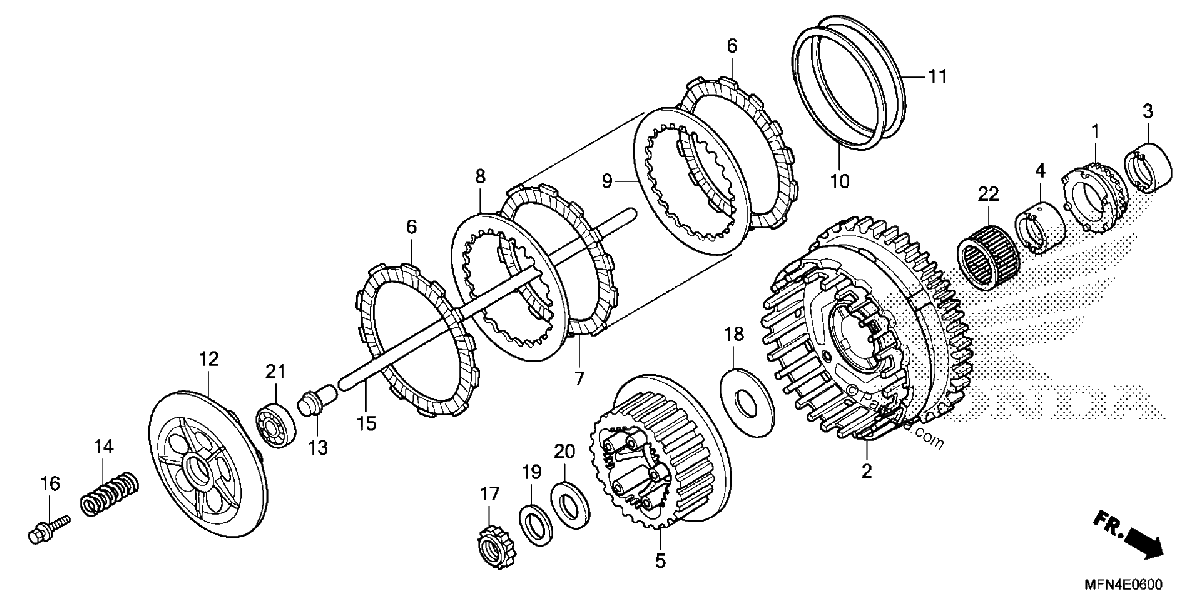

Diagrama de CLUTCH

Repuestos

#1
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$79.23¢39 613
1
#2
22100-MEL-020
CLUTCH OUTER A (77T) (INDENT MARK A)
$497.31¢248 656
1
#2
22110-MEL-020
CLUTCH OUTER B (77T) (INDENT MARK B)
$475.88¢237 938
1
#3
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$21.27¢10 638
1
#4
22117-MEL-000
GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)
$27.31¢13 656
1
#4
22118-MEL-000
GUIDE B, CLUTCH (OUTER) (2MM HOLE)
$26.13¢13 063
1
#5
22120-MEL-000
CENTER, CLUTCH
$158.44¢79 219
1
#6
22201-MBB-000
DISK, CLUTCH FRICTION
$24.60¢12 300
1
#7
22201-MEL-000
DISK, CLUTCH FRICTION
$17.54¢8 769
1
#8
22321-MEL-000
PLATE, CLUTCH (2.3)
$17.51¢8 756
1
#9
22322-MEL-000
PLATE B, CLUTCH (2.3)
$17.51¢8 756
1
#10
22325-MEL-000
SPRING, CLUTCH PLATE
$13.51¢6 756
1
#11
22326-MEL-000
SEAT, JUDDER SPRING
$8.40¢4 200
1
#12
22350-MFA-D00
PLATE, CLUTCH PRESSURE
$76.44¢38 219
1
#13
22366-MM5-000
PIECE, CLUTCH JOINT
$31.44¢15 719
1
#14
22401-MCH-000
SPRING, CLUTCH
$5.59¢2 794
1
#15
22850-MEL-000
ROD, CLUTCH LIFTER
$37.21¢18 606
1
#16
90022-MAT-000
BOLT-WASHER (6X32)
$5.94¢2 969
1
#17
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#18
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#19
90432-MM8-003
WASHER, SPRING (25MM) (CHUO HATSUJO)
$9.32¢4 663
1
#20
90451-VM0-000
WASHER, THRUST (25X40X2)
$7.72¢3 863
1
#21
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#21
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#21
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#22
91101-MEE-003
BEARING A, NEEDLE (35X41X23.8) (RED)
$7.94¢3 969
1
#22
91102-MEE-003
BEARING B, NEEDLE (35X41X23.8) (WHITE)
$7.94¢3 969
1
#22
91103-MEE-003
BEARING C, NEEDLE (35X41X23.8) (PURPLE)
$7.94¢3 969
1
