REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

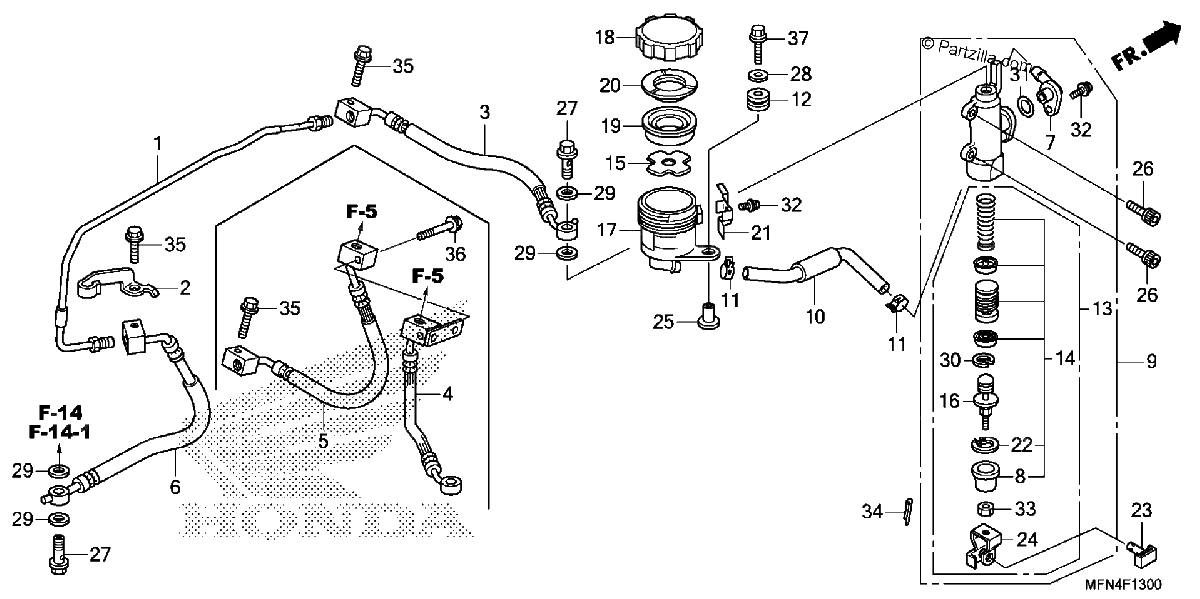

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
43135-MFN-D00
PIPE E, RR. BRAKE
$18.70¢9 350
1
#2
43161-MFN-D00
STAY, RR. BRAKE PIPE
$6.77¢3 387
1
#3
43310-MFN-D01
HOSE A, RR. BRAKE
$44.91¢22 454
1
#6
43312-MFN-D01
HOSE C, RR. BRAKE
No Disponible
1
#7
43503-MFN-D01
CONNECTOR, MASTER CYLINDER
$8.07¢4 036
1
#8
43504-MB2-006
BOOT
$10.80¢5 399
1
#9
43510-MFN-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$291.48¢145 740
1
#10
43512-MFN-D01
HOSE, RR. BRAKE MASTER CYLINDER
$15.25¢7 624
1
#11
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#12
43516-MCJ-006
RUBBER, OIL CUP
$5.51¢2 754
1
#14
43520-MG9-315
PISTON SET, MASTER CYLINDER (NISSIN)
$71.21¢35 604
1
#15
43523-MAH-671
FLOAT, RR. MASTER CYLINDER
$4.82¢2 409
1
#16
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#17
45511-MEL-D21
CUP, OIL
$10.58¢5 290
1
#18
45513-MEL-D21
CAP, OIL CUP
$19.68¢9 838
1
#19
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#20
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#21
45535-MR8-901
PLATE, STOP
$6.08¢3 042
1
#22
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#23
46503-MAL-000
PIN, BRAKE ROD
$7.11¢3 553
1
#24
46504-MAL-601
JOINT, BRAKE ROD
$15.87¢7 935
1
#25
50324-425-010
COLLAR (6.3X13)
$5.40¢2 702
1
#26
90040-MN5-000
BOLT, SOCKET (6X18)
$3.69¢1 846
1
#27
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#28
90473-147-000
WASHER (6X16)
$1.56¢782
1
#29
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#31
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#32
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#32
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#33
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#34
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#35
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
#37
96300-06025-07
BOLT, FLANGE (6X25)
$2.24¢1 121
1
