CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

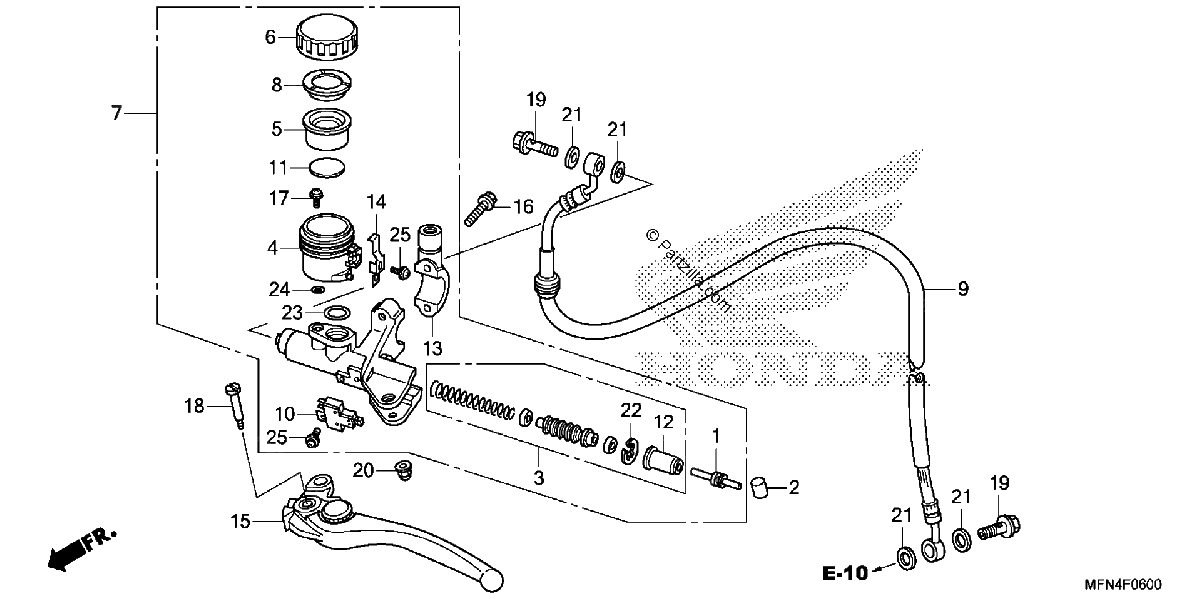

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#1
22884-MAT-E01
ROD, PUSH
$22.66¢11 331
1
#2
22885-MB0-006
BUSH
$15.15¢7 575
1
#3
22886-MAT-E01
PISTON SET, MASTER CYLINDER
$66.22¢33 113
1
#4
22887-MFN-D01
CUP, OIL
$13.94¢6 969
1
#5
22888-MR7-006
DIAPHRAGM
$17.63¢8 813
1
#6
22889-MR7-006
CAP, CLUTCH OIL CUP
$45.36¢22 681
1
#7
22890-MFN-305
MASTER CYLINDER SUB-ASSY., CLUTCH (COO)
$440.93¢220 463
1
#8
22890-MR7-006
PLATE, DIAPHRAGM
$13.63¢6 813
1
#9
22900-MFN-D61
HOSE, CLUTCH
$92.44¢46 219
1
#10
35330-MB0-003
SWITCH ASSY., CLUTCH
$21.14¢10 569
1
#11
43523-MFL-006
FLOAT
$4.04¢2 019
1
#12
45504-MAT-E01
BOOT
$12.36¢6 181
1
#13
45517-MFN-D01
HOLDER, MASTER CYLINDER
$17.93¢8 963
1
#14
45535-MR8-901
PLATE, STOP
$6.61¢3 306
1
#15
53180-MCF-305
LEVER ASSY., L. HANDLE (COO)
$109.98¢54 988
1
#16
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#17
90101-MR7-006
SCREW, TRIPLE (4X11)
$4.00¢2 000
1
#18
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#20
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#21
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#22
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#23
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#24
91355-MG9-006
O-RING
$3.81¢1 906
1
#25
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#25
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
