FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

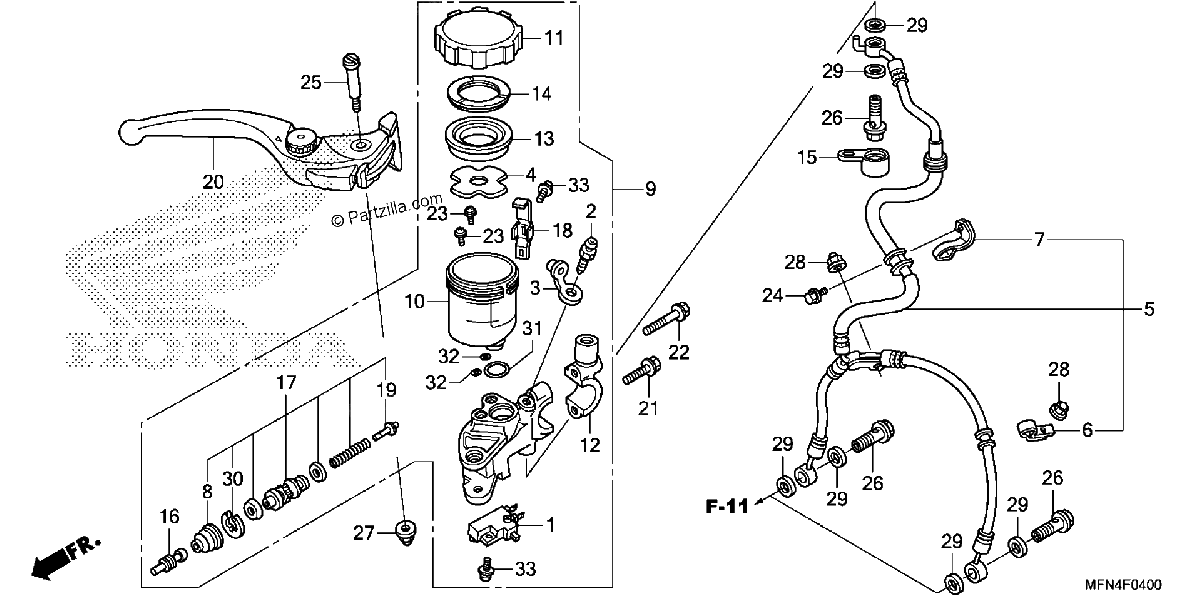

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MEL-003
SWITCH ASSY., FR. STOP
$16.25¢8 125
1
#2
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#3
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#4
43523-MAH-671
FLOAT, RR. MASTER CYLINDER
$4.82¢2 409
1
#5
45125-MFN-D61
HOSE, FR. BRAKE
$95.98¢47 989
1
#6
45158-MFN-D00
CLAMP A, FR. BRAKE HOSE
$7.99¢3 996
1
#7
45159-MFN-D00
CLAMP B, FR. BRAKE HOSE
$7.49¢3 743
1
#8
45504-MCF-006
BOOT
$14.06¢7 032
1
#9
45510-MFN-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$528.51¢264 253
1
#10
45511-MFN-D02
CUP, OIL
$16.46¢8 228
1
#11
45513-MEL-D21
CAP, OIL CUP
$19.68¢9 838
1
#12
45518-MFN-D01
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#13
45520-300-000
DIAPHRAGM
$9.74¢4 870
1
#14
45521-MJ6-006
PLATE, DIAPHRAGM
$4.52¢2 260
1
#15
45522-MFN-D00
BOOT, MASTER CYLINDER
$5.45¢2 726
1
#16
45525-MEL-016
ROD, PUSH
$15.69¢7 843
1
#17
45530-MFN-D01
MASTER CYLINDER SET
$61.86¢30 929
1
#18
45535-MR8-901
PLATE, STOP
$6.08¢3 042
1
#19
46140-MEL-006
GUIDE, SPRING
$5.26¢2 628
1
#20
53170-MEL-305
LEVER ASSY., R. HANDLE (COO)
$56.13¢28 066
1
#21
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#22
90101-MFN-D00
BOLT, FLANGE (6X32)
$2.96¢1 478
1
#23
90101-MR7-006
SCREW, TRIPLE (4X11)
$3.68¢1 840
1
#24
90102-MW3-600
BOLT, FLANGE (6X10)
$1.64¢822
1
#25
90114-MCF-006
BOLT, HANDLE LEVER
$6.49¢3 243
1
#26
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#27
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#28
90201-428-900
NUT, CAP
$2.64¢1 322
1
#29
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#30
90651-MCF-006
CIRCLIP
$2.68¢1 340
1
#31
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#32
91355-MG9-006
O-RING
$3.51¢1 754
1
#33
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#33
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
