SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

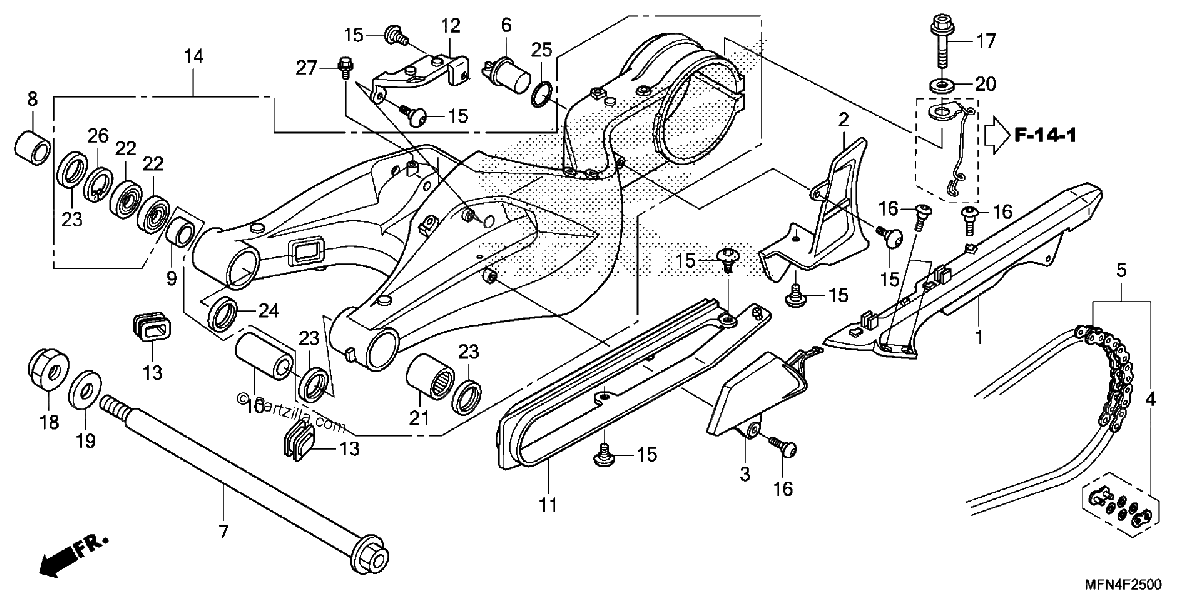

Diagrama de SWINGARM

Repuestos

#1
40510-MFN-D00
CASE A, DRIVE CHAIN
$6.28¢3 140
1
#2
40515-MFN-D00
GUIDE, RR. BRAKE AIR
$7.07¢3 536
1
#3
40520-MFN-D00
CASE B, DRIVE CHAIN
$4.99¢2 496
1
#4
40535-MZ1-316
MASTER LINK (DAIDO)
No Disponible
1
#5
40540-MZ1-316
CHAIN, DRIVE (DID50 VA8-120ZB) (DAIDO)
$361.96¢180 981
1
#6
43433-KV3-951
STOPPER, TORQUE LINK
$14.40¢7 199
1
#7
52101-MCZ-000
BOLT, SWINGARM PIVOT
$39.96¢19 981
1
#8
52141-MER-D00
COLLAR A, PIVOT DISTANCE
$11.61¢5 807
1
#9
52142-MER-D00
COLLAR B, PIVOT DISTANCE
$25.90¢12 949
1
#10
52143-MER-D00
COLLAR, PIVOT DISTANCE
$46.79¢23 397
1
#11
52170-MFN-D00
SLIDER, CHAIN
$18.01¢9 005
1
#12
52180-MFN-D00
GUIDE, CHAIN
$3.71¢1 857
1
#13
52190-MFN-D00
GROMMET, SWINGARM
$1.06¢529
1
#14
52200-MFN-L60
SWINGARM SUB-ASSY., RR.
$810.30¢405 151
1
#15
90111-MFN-D00
SCREW, SPECIAL (5X12)
$2.06¢1 029
1
#16
90114-KPB-750
SCREW, SPECIAL (5X14)
$2.74¢1 368
1
#17
90155-MFN-D00
BOLT, FLANGE (16X51)
$10.38¢5 192
1
#18
90306-MCS-G01
NUT, U (18MM)
$7.60¢3 801
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.58¢1 788
1
#20
90559-HA8-000
WASHER, PLAIN (16MM)
$7.75¢3 875
1
#21
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#22
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$19.38¢9 689
1
#23
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#24
91261-KZ3-861
DUST SEAL (27X34X4)
$8.69¢4 347
1
#25
91355-759-003
O-RING (21.8X2.4)
$1.95¢977
1
#26
94520-37000
CIRCLIP, INNER (37MM)
$2.59¢1 294
1
#27
96001-06008-07
BOLT, FLANGE (6X8)
$1.12¢558
1
