FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

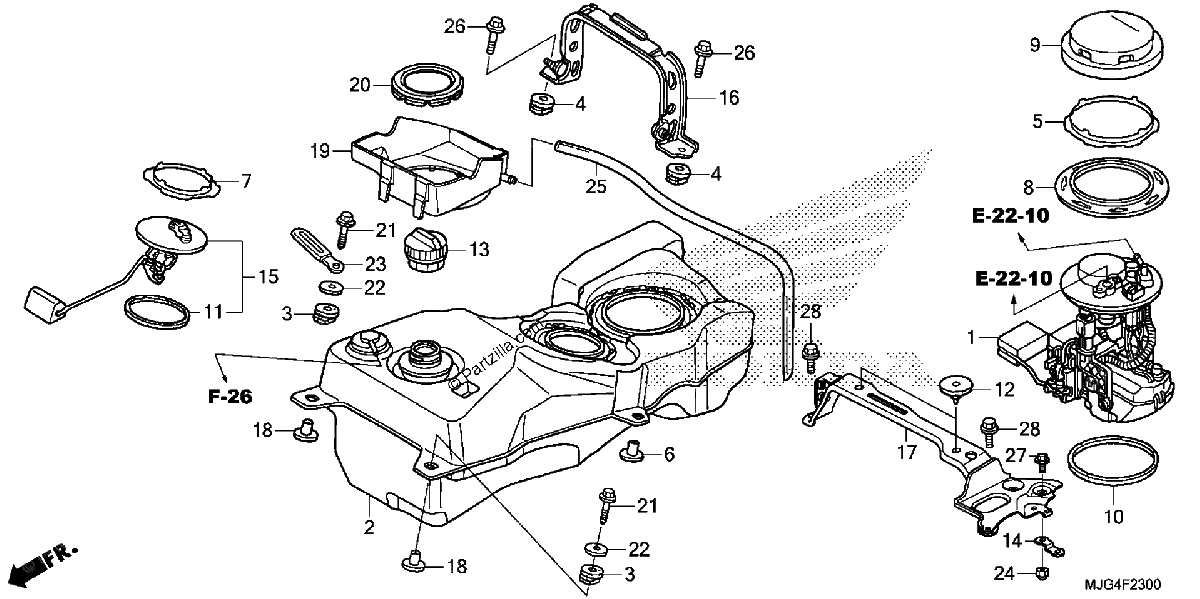

Diagrama de FUEL TANK

Repuestos

#1
16700-MCA-013
PUMP ASSY., FUEL (MSDS)
$421.56¢210 778
1
#001
16700-MCA-013
PUMP ASSY., FUEL (MSDS)
$421.56¢210 778
1
#2
17510-MCA-S42
TANK, FUEL
$1654.77¢827 385
1
#002
17510-MCA-S42
TANK, FUEL
$1654.77¢827 385
1
#3
17515-GBB-000
RUBBER, FUEL TANK MOUNTING
$5.83¢2 915
1
#003
17515-GBB-000
RUBBER, FUEL TANK MOUNTING
$5.83¢2 915
1
#4
17515-MCA-A80
RUBBER, FUEL TANK MOUNTING
$6.88¢3 439
1
#004
17515-MCA-A80
RUBBER, FUEL TANK MOUNTING
$6.88¢3 439
1
#5
17515-MCA-S41
LOCKING RING, FUEL PUMP
$42.12¢21 062
1
#005
17515-MCA-S41
LOCKING RING, FUEL PUMP
$42.12¢21 062
1
#006
17516-MCA-A80
COLLAR (12.7X14.1)
$6.54¢3 272
1
#6
17516-MCA-A80
COLLAR (12.7X14.1)
$6.54¢3 272
1
#7
17516-MCA-S41
LOCKING RING, FUEL UNIT
$35.33¢17 664
1
#007
17516-MCA-S41
LOCKING RING, FUEL UNIT
$35.33¢17 664
1
#008
17517-MCA-S40
RING, SPACER
$40.33¢20 165
1
#8
17517-MCA-S40
RING, SPACER
$40.33¢20 165
1
#9
17519-MCA-000
COVER, FUEL PUMP
$15.54¢7 768
1
#009
17519-MCA-000
COVER, FUEL PUMP
$15.54¢7 768
1
#10
17574-MCA-S41
GASKET, FUEL PUMP
$17.65¢8 826
1
#010
17574-MCA-S41
GASKET, FUEL PUMP
$17.65¢8 826
1
#011
17575-MCA-S41
GASKET, FUEL UNIT
$23.51¢11 753
1
#11
17575-MCA-S41
GASKET, FUEL UNIT
$23.51¢11 753
1
#012
17615-MCA-000
CUSHION, RR. FUEL TANK
$16.74¢8 372
1
#12
17615-MCA-000
CUSHION, RR. FUEL TANK
$16.74¢8 372
1
#013
17620-MEH-003
CAP ASSY., FUEL TANK
$47.58¢23 788
1
#13
17620-MEH-003
CAP ASSY., FUEL TANK
$47.58¢23 788
1
#14
32160-MGE-D01
STAY, CLIP
$4.24¢2 122
1
#014
32160-MGE-D01
STAY, CLIP
$4.24¢2 122
1
#015
37080-MCA-000
FUEL UNIT SET
$727.67¢363 837
1
#15
37080-MCA-000
FUEL UNIT SET
$727.67¢363 837
1
#16
50250-MCA-S40
STAY, SHELTER SETTING
$41.28¢20 643
1
#016
50250-MCA-S40
STAY, SHELTER SETTING
$41.28¢20 643
1
#017
50330-MJG-670
STAY, BATTERY SUPPORT
$87.96¢43 982
1
#17
50330-MJG-670
STAY, BATTERY SUPPORT
$87.96¢43 982
1
#18
80108-KF9-900
COLLAR, RR. FENDER
$4.00¢2 001
1
#018
80108-KF9-900
COLLAR, RR. FENDER
$4.00¢2 001
1
#019
83502-MCA-A80
TRAY, FUEL FILLER
$23.53¢11 765
1
#19
83502-MCA-A80
TRAY, FUEL FILLER
$23.53¢11 765
1
#20
83503-MCA-A00
GASKET, FUEL TRAY
$11.71¢5 853
1
#020
83503-MCA-A00
GASKET, FUEL TRAY
$11.71¢5 853
1
#021
90104-MCA-000
BOLT, SPECIAL NSHF (6X34)
$1.91¢954
1
#21
90104-MCA-000
BOLT, SPECIAL NSHF (6X34)
$1.91¢954
1
#22
90136-428-870
WASHER, TANK SETTING
$1.85¢926
1
#022
90136-428-870
WASHER, TANK SETTING
$1.85¢926
1
#023
91410-679-000
CLIP (2X60)
$10.83¢5 416
1
#23
91410-679-000
CLIP (2X60)
$10.83¢5 416
1
#24
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#024
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#24
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#024
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#024
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#24
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#024
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#24
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#25
95005-80008-10M
BULK HOSE, VACUUM (8X8000) (8X860)
No Disponible
1
#025
95005-80008-10M
BULK HOSE, VACUUM (8X8000) (8X860)
No Disponible
1
#26
95701-08035-00
BOLT, FLANGE (8X35)
$2.71¢1 357
1
#026
95701-08035-00
BOLT, FLANGE (8X35)
$2.71¢1 357
1
#27
96001-06008-00
BOLT, FLANGE (6X8)
$1.21¢604
1
#027
96001-06008-00
BOLT, FLANGE (6X8)
$1.21¢604
1
#28
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
#028
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
