TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

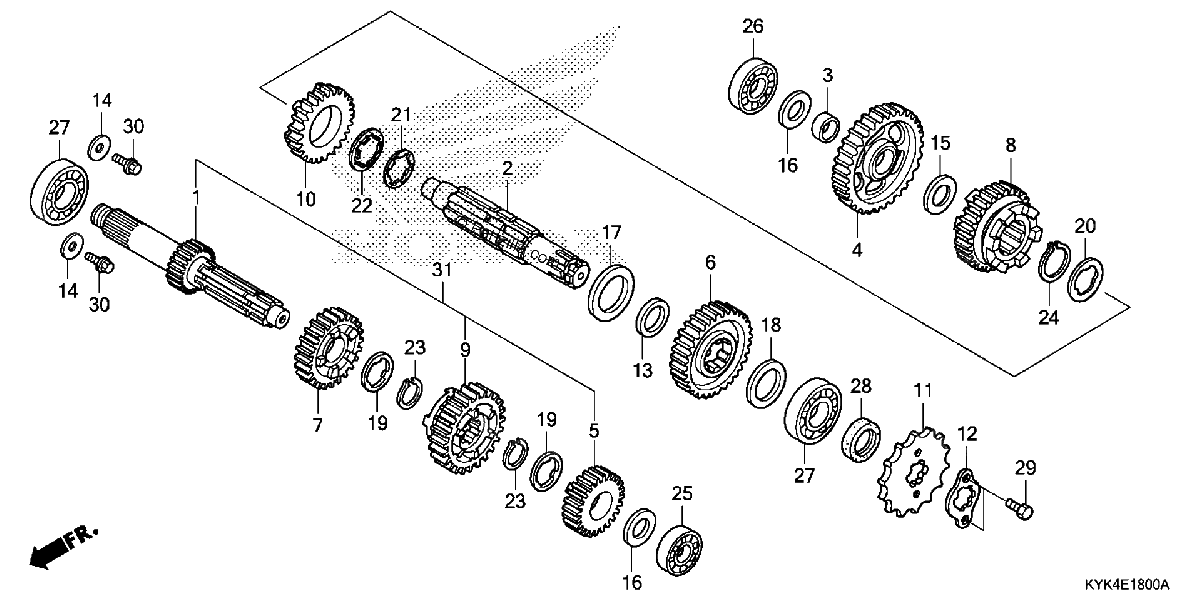

Diagrama de TRANSMISSION

Repuestos

#1
23211-KZV-J00
MAINSHAFT (13T)
$123.07¢61 536
1
#2
23221-KZV-J00
COUNTERSHAFT
$89.47¢44 735
1
#3
23415-KWW-A80
BUSH (15MM)
$8.58¢4 289
1
#4
23421-KZV-J00
GEAR, COUNTERSHAFT FIRST (34T)
$67.06¢33 528
1
#5
23431-KZV-J00
GEAR, MAINSHAFT SECOND (18T)
$60.24¢30 118
1
#6
23441-KZV-J00
GEAR, COUNTERSHAFT SECOND (28T)
$60.35¢30 176
1
#7
23451-KWW-740
GEAR, MAINSHAFT THIRD (22T)
$56.74¢28 371
1
#8
23461-KWW-740
GEAR, COUNTERSHAFT THIRD (25T)
$70.28¢35 138
1
#9
23471-KZV-J00
GEAR, MAINSHAFT FOURTH (24T)
$85.66¢42 832
1
#10
23481-KZV-J00
GEAR, COUNTERSHAFT FOURTH (22T)
$60.40¢30 199
1
#11
23801-KWW-740
SPROCKET, DRIVE (14T)
$13.05¢6 526
1
#12
23802-KVR-C00
PLATE, FIXING
$4.63¢2 317
1
#13
23911-KPH-900
COLLAR, LOCK PLATE
$0.91¢454
1
#14
90407-KWW-740
WASHER (6.2X19X2.3)
$2.62¢1 311
1
#15
90412-187-000
WASHER, THRUST (15MM)
$2.54¢1 271
1
#16
90412-KPH-900
WASHER, SPECIAL (12X23)
$0.83¢414
1
#17
90452-413-000
WASHER, THRUST (20MM)
$3.15¢1 576
1
#18
90452-GB4-770
WASHER, THRUST (17MM)
$2.43¢1 213
1
#19
90461-035-000
WASHER, SPLINE (17MM)
$3.06¢1 529
1
#20
90461-459-010
WASHER, SPLINE (20MM)
$6.55¢3 278
1
#21
90461-KWB-600
WASHER, SPLINE (20MM)
$1.07¢535
1
#22
90465-KWB-600
WASHER, LOCK (20MM)
$0.55¢276
1
#23
90601-KYY-900
CIRCLIP (17MM)
$3.36¢1 679
1
#24
90602-KYY-900
CIRCLIP (20MM)
$4.16¢2 081
1
#25
91013-KZV-J01
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
#26
91014-KZV-J01
BEARING, RADIAL BALL (6201)
$18.87¢9 436
1
#27
91015-KZV-J01
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)
No Disponible
1
#28
91204-KWB-601
OIL SEAL (17X29X5)
$1.47¢736
1
#29
92101-06010-0A
BOLT, HEX. (6X10)
$1.66¢828
1
#30
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
