PEDAL KICK STARTER ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

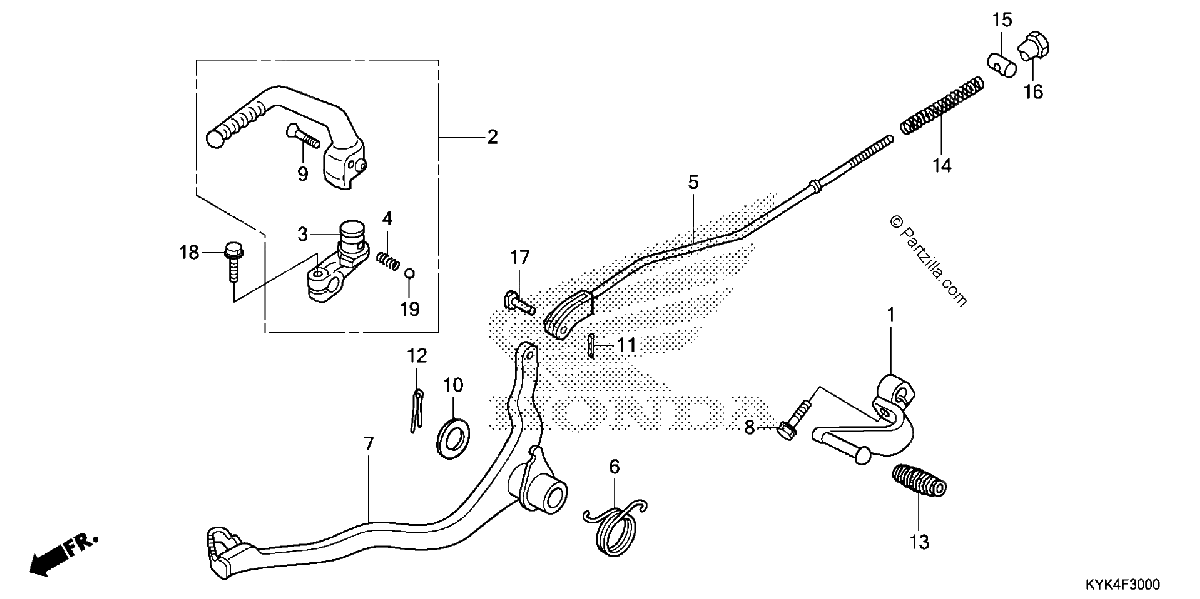

Diagrama de PEDAL KICK STARTER ARM

Repuestos

#1
24701-KYK-305
PEDAL, GEARSHIFT (COO)
$39.54¢19 769
1
#2
28300-KYK-305
ARM ASSY., KICK STARTER (COO)
$152.12¢76 061
1
#3
28302-KYK-910
JOINT, KICK ARM
$81.86¢40 929
1
#4
28333-KYK-910
SPRING, KICK STARTER ARM SETTING
$3.36¢1 679
1
#5
43451-KYK-910
ROD, RR. BRAKE
$17.05¢8 527
1
#6
45435-KYK-910
SPRING, BRAKE ARM RETURN
$10.49¢5 244
1
#7
46500-KYK-305
PEDAL, BRAKE (COO)
$98.05¢49 024
1
#8
90131-124-000
BOLT, FLANGE (6X25)
$0.89¢443
1
#9
93600-06022-0H
SCREW, FLAT (6X22)
$4.68¢2 340
1
#10
94102-16000
WASHER, PLAIN (16MM)
$1.18¢592
1
#11
94201-20121
PIN, SPLIT (2.0)
$1.17¢586
1
#11
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#12
94201-30250
PIN, SPLIT (3.0X25)
$1.17¢586
1
#12
94201-30300
PIN, SPLIT (3.0X30)
$1.17¢586
1
#12
94201-30400
PIN, SPLIT (3.0)
$1.17¢586
1
#12
94201-30450
PIN, SPLIT (3.0X45)
$1.17¢586
1
#13
95011-40000
RUBBER, CHANGE PEDAL
$1.49¢747
1
#14
95014-73100
SPRING A, BRAKE ROD
$1.53¢765
1
#15
95015-32001
JOINT B, BRAKE ARM
$1.12¢558
1
#16
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.28¢1 138
1
#17
95015-53000
PIN C, JOINT
$3.42¢1 708
1
#18
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#19
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
