ONE WAY CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

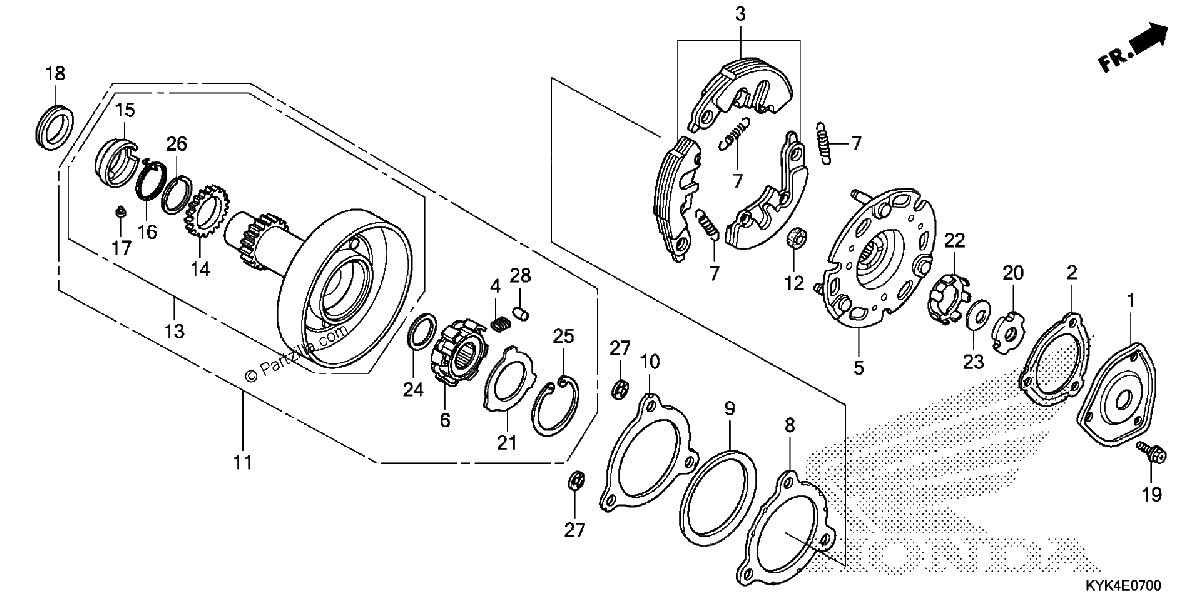

Diagrama de ONE WAY CLUTCH

Repuestos

#1
15431-KVR-C00
COVER, OIL FILTER
$18.76¢9 378
1
#2
15439-KPH-901
GASKET, OIL FILTER
$2.77¢1 386
1
#3
22535-KWW-P00
WEIGHT SET, PRIMARY CLUTCH (F.C.C.)
$86.66¢43 332
1
#4
22606-KVR-C00
SPRING, ONE-WAY RETAINER
$3.06¢1 529
1
#5
22610-KWW-741
PLATE, PRIMARY DRIVE (F.C.C.)
$15.84¢7 918
1
#6
22630-KWW-C00
INNER, ONE-WAY CLUTCH
$41.76¢20 878
1
#7
22641-KPH-900
SPRING, PRIMARY CLUTCH
$1.38¢690
1
#8
22642-KWW-741
WASHER, CLUTCH SIDE (F.C.C.)
$2.01¢1 006
1
#9
22643-KWW-741
SPRING, SIDE FRICTION (F.C.C.)
$2.98¢1 489
1
#10
22644-KWW-741
PLATE, CLUTCH SIDE (F.C.C.)
$2.90¢1 449
1
#11
22660-KWW-C00
CLUTCH OUTER ASSY., PRIMARY
$230.26¢115 132
1
#12
22804-GB2-000
RUBBER, CLUTCH DAMPER
$4.20¢2 099
1
#13
23120-KWW-C00
GEAR, PRIMARY CLUTCH
$133.99¢66 993
1
#14
23122-KWW-C00
SUB-GEAR (17T)
$23.34¢11 673
1
#15
23123-KWW-C00
RETAINER, SPRING
$17.38¢8 688
1
#16
23124-KWW-C00
SPRING, SUB-GEAR
$3.78¢1 892
1
#17
23125-KVR-C00
PIN, STOPPER
$3.37¢1 685
1
#18
23126-KWW-740
COLLAR (19.1X30X4)
$4.43¢2 214
1
#19
90083-KFL-850
BOLT, SPECIAL FLANGE (5X8)
$1.17¢586
1
#20
90231-KVR-C00
NUT, LOCK (14MM)
$3.36¢1 679
1
#21
90401-KVR-C00
WASHER (30X45X0.8)
$4.37¢2 185
1
#22
90431-KVR-C00
WASHER, LOCK
$3.33¢1 667
1
#23
90432-KVR-C00
WASHER B, LOCK
$6.24¢3 122
1
#24
90433-KWW-C00
WASHER (17X23X1.5)
$3.53¢1 765
1
#25
90455-KVR-C00
CIRCLIP (INNER) (45MM)
$5.69¢2 846
1
#26
90603-KWW-C00
SET-RING (23MM)
$2.09¢1 047
1
#27
90605-166-720
CIRCLIP (7MM)
$2.13¢1 064
1
#28
91106-KVR-C00
ROLLER (5X8)
$10.18¢5 089
1
