LEFT FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

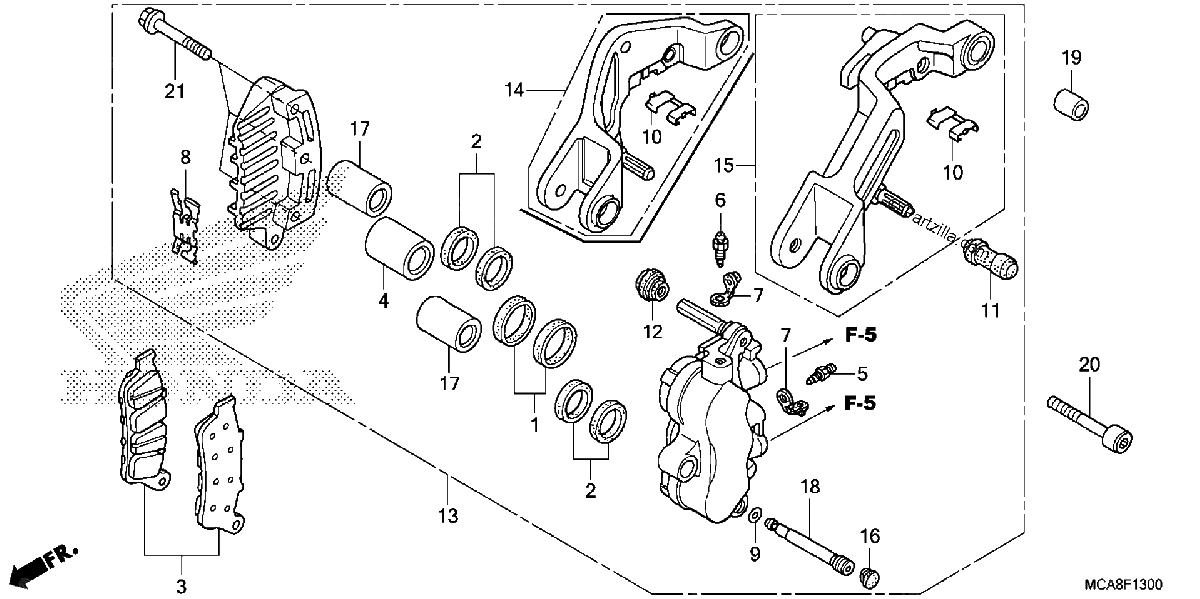

Diagrama de LEFT FRONT BRAKE CALIPER

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#2
06451-MZ2-405
SEAL SET, PISTON
$14.68¢7 338
1
#002
06451-MZ2-405
SEAL SET, PISTON
$14.68¢7 338
1
#003
06455-MCA-016
PAD SET, FR.
$51.83¢25 913
1
#3
06455-MCA-016
PAD SET, FR.
$51.83¢25 913
1
#004
43107-MBG-006
PISTON (27X27)
$43.50¢21 750
1
#4
43107-MBG-006
PISTON (27X27)
$43.50¢21 750
1
#5
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#005
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#6
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#006
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#7
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#007
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#008
45108-MZ2-016
SPRING, PAD
$10.00¢5 000
1
#8
45108-MZ2-016
SPRING, PAD
$10.00¢5 000
1
#9
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#009
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#010
45112-MZ2-006
RETAINER, BRACKET
$10.34¢5 169
1
#10
45112-MZ2-006
RETAINER, BRACKET
$10.34¢5 169
1
#011
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#11
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#012
45133-MA3-006
BOOT B
$6.61¢3 306
1
#12
45133-MA3-006
BOOT B
$6.61¢3 306
1
#013
45150-MCA-A81
CALIPER SUB-ASSY., L. FR. (NISSIN)
$315.32¢157 663
1
#13
45150-MCA-A81
CALIPER SUB-ASSY., L. FR. (NISSIN)
$315.32¢157 663
1
#13
45150-MJG-671
CALIPER SUB-ASSY., L. FR. (NISSIN)
$669.98¢334 988
1
#13
45150-MJK-G31
CALIPER SUB-ASSY., L. FR. (NISSIN)
$787.75¢393 875
1
#14
45190-MCA-A81
BRACKET SUB-Assembly., L Front.
$73.84¢36 919
1
#014
45190-MCA-A81
BRACKET SUB-Assembly., L Front.
$73.84¢36 919
1
#14
45190-MJK-G31
BRACKET SUB-ASSY., L. FR.
$234.07¢117 038
1
#15
45190-MJG-671
BRACKET SUB-ASSY., L. FR.
$259.69¢129 844
1
#16
45203-MCC-006
PLUG, PIN
$3.65¢1 825
1
#016
45203-MCC-006
PLUG, PIN
$3.65¢1 825
1
#17
45207-MAJ-G41
PISTON B (22X35)
$35.10¢17 550
1
#017
45207-MAJ-G41
PISTON B (22X35)
$35.10¢17 550
1
#18
45215-MAJ-G41
PIN, HANGER
$7.81¢3 906
1
#018
45215-MAJ-G41
PIN, HANGER
$7.81¢3 906
1
#19
45442-MAT-000
COLLAR, L. CALIPER BRACKET
$6.00¢3 000
1
#019
45442-MAT-000
COLLAR, L. CALIPER BRACKET
$6.00¢3 000
1
#020
90132-MZ2-000
BOLT, SOCKET (8X45)
$13.10¢6 550
1
#20
90132-MZ2-000
BOLT, SOCKET (8X45)
$13.10¢6 550
1
#21
90135-MAJ-G41
BOLT, FLANGE (8X45)
$7.84¢3 919
1
#021
90135-MAJ-G41
BOLT, FLANGE (8X45)
$7.84¢3 919
1
