CAM CHAIN TENSIONER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

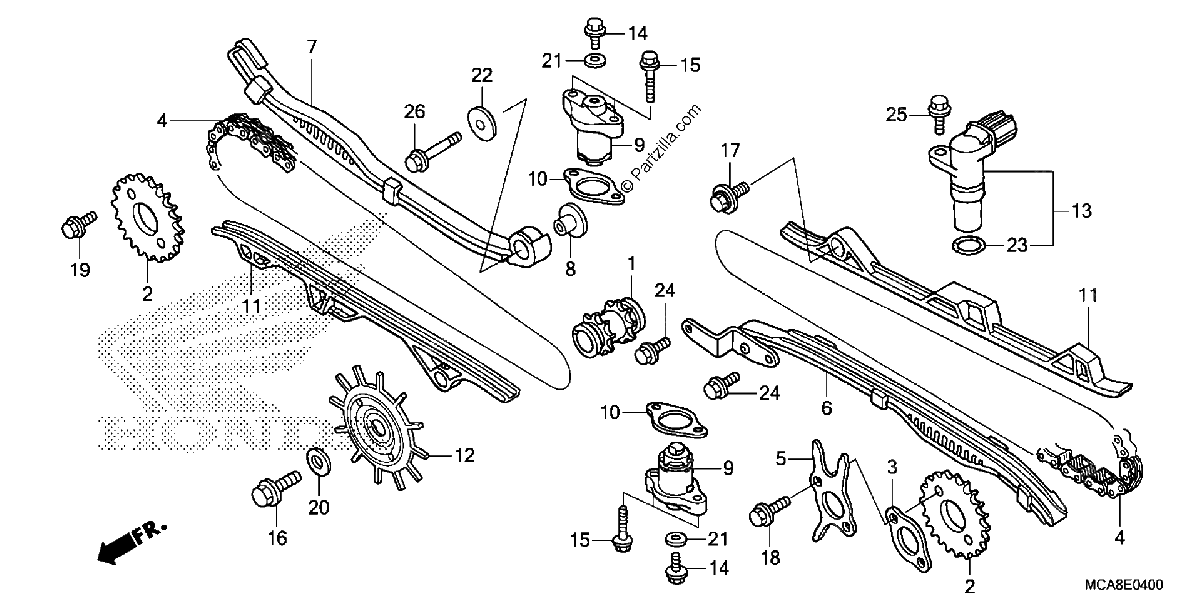

Diagrama de CAM CHAIN TENSIONER

Repuestos

#1
14312-MCA-780
SPROCKET, TIMING (17T)
$67.66¢33 831
1
#001
14312-MCA-780
SPROCKET, TIMING (17T)
$67.66¢33 831
1
#2
14321-MCA-780
SPROCKET, CAM (34T)
$56.15¢28 075
1
#002
14321-MCA-780
SPROCKET, CAM (34T)
$56.15¢28 075
1
#3
14322-MCA-000
FLANGE, CAM SPROCKET
$4.22¢2 113
1
#003
14322-MCA-000
FLANGE, CAM SPROCKET
$4.22¢2 113
1
#4
14401-MAN-621
CHAIN, CAM (118L) (BORG WARNER)
$118.63¢59 313
1
#004
14401-MAN-621
CHAIN, CAM (118L) (BORG WARNER)
$118.63¢59 313
1
#5
14405-MCA-000
ROTOR, CAM PULSE
$3.81¢1 906
1
#005
14405-MCA-000
ROTOR, CAM PULSE
$3.81¢1 906
1
#006
14500-MCA-000
TENSIONER PLATE, CAM CHAIN
$124.53¢62 263
1
#6
14500-MCA-000
TENSIONER PLATE, CAM CHAIN
$124.53¢62 263
1
#007
14510-MCA-000
TENSIONER, CAM CHAIN
$121.45¢60 725
1
#7
14510-MCA-000
TENSIONER, CAM CHAIN
$121.45¢60 725
1
#008
14516-MCA-000
COLLAR, TENSIONER PIVOT
$4.33¢2 163
1
#8
14516-MCA-000
COLLAR, TENSIONER PIVOT
$4.33¢2 163
1
#9
14520-MCA-013
LIFTER ASSY., TENSIONER
$123.71¢61 856
1
#009
14520-MCA-013
LIFTER ASSY., TENSIONER
$123.71¢61 856
1
#010
14560-MY5-851
GASKET, TENSIONER LIFTER
$6.16¢3 081
1
#10
14560-MY5-851
GASKET, TENSIONER LIFTER
$6.16¢3 081
1
#11
14620-MCA-003
GUIDE, CAM CHAIN
$23.81¢11 906
1
#011
14620-MCA-003
GUIDE, CAM CHAIN
$23.81¢11 906
1
#012
30291-MCA-A00
ROTOR, PULSE
$39.23¢19 613
1
#12
30291-MCA-A00
ROTOR, PULSE
$39.23¢19 613
1
#13
36140-MCT-003
PULSER ASSY., CAM
$216.48¢108 238
1
#013
36140-MCT-003
PULSER ASSY., CAM
$216.48¢108 238
1
#014
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.75¢1 875
1
#14
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.75¢1 875
1
#15
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#015
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#016
90013-430-000
BOLT, SPECIAL (10X25)
$7.84¢3 919
1
#16
90013-430-000
BOLT, SPECIAL (10X25)
$7.84¢3 919
1
#17
90021-MM5-000
BOLT-WASHER (6X12)
$6.20¢3 100
1
#017
90021-MM5-000
BOLT-WASHER (6X12)
$6.20¢3 100
1
#18
90086-MCA-000
BOLT, FLANGE KNOCK (7X22)
$1.13¢563
1
#018
90086-MCA-000
BOLT, FLANGE KNOCK (7X22)
$1.13¢563
1
#019
90086-MZ8-H00
BOLT, SPECIAL FLANGE (7X13)
$3.65¢1 825
1
#19
90086-MZ8-H00
BOLT, SPECIAL FLANGE (7X13)
$3.65¢1 825
1
#020
90405-MCA-780
WASHER (10.5X27)
$5.38¢2 688
1
#20
90405-MCA-780
WASHER (10.5X27)
$5.38¢2 688
1
#021
90442-397-000
WASHER, SEALING (6MM)
$2.95¢1 475
1
#21
90442-397-000
WASHER, SEALING (6MM)
$2.95¢1 475
1
#022
90487-MB0-000
WASHER, SHIFT DRUM STOPPER
$4.39¢2 194
1
#22
90487-MB0-000
WASHER, SHIFT DRUM STOPPER
$4.39¢2 194
1
#23
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#023
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#024
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#025
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#25
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#26
95801-06028-00
BOLT, FLANGE (6X28)
$2.34¢1 169
1
#026
95801-06028-00
BOLT, FLANGE (6X28)
$2.34¢1 169
1
