WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

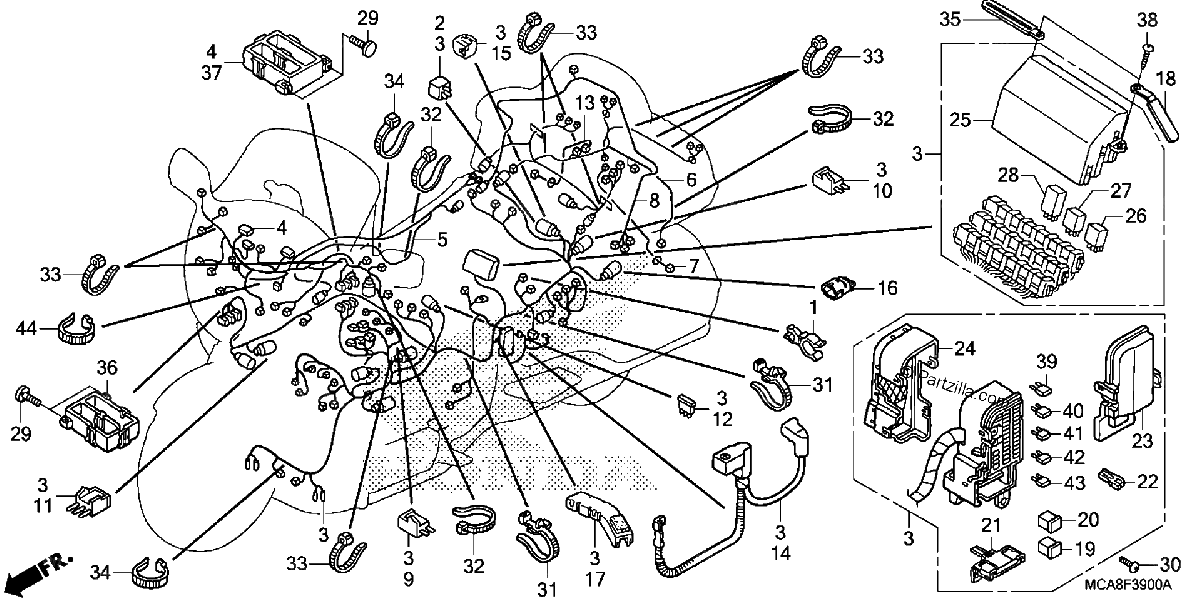

Diagrama de WIRE HARNESS

Repuestos

#001
11338-KJ9-751
CLIP, BREATHER TUBE
$3.84¢1 919
1
#1
11338-KJ9-751
CLIP, BREATHER TUBE
$3.84¢1 919
1
#002
31700-MM8-610
RECTIFIER, SILICON
$30.66¢15 331
1
#2
31700-MM8-610
RECTIFIER, SILICON
$30.66¢15 331
1
#3
32100-MCA-S50
WIRE HARNESS
$4038.10¢2 019 050
1
#3
32100-MCA-S70
WIRE HARNESS
$3864.45¢1 932 225
1
#003
32100-MCA-S80
WIRE HARNESS
No Disponible
1
#3
32100-MCA-S80
WIRE HARNESS
No Disponible
1
#4
32105-MCA-S40
SUB-HARNESS, FAIRING
$403.81¢201 906
1
#004
32105-MCA-S80
SUB-HARNESS, FAIRING
$420.74¢210 369
1
#4
32105-MCA-S80
SUB-HARNESS, FAIRING
$420.74¢210 369
1
#005
32119-MCA-S80
SUB-HARNESS, NAVIGATION
$206.29¢103 144
1
#5
32119-MCA-S40
SUB-HARNESS, AUDIO
$147.01¢73 506
1
#5
32119-MCA-S80
SUB-HARNESS, NAVIGATION
$206.29¢103 144
1
#6
32120-MCA-S40
SUB-HARNESS, RR.
$407.44¢203 719
1
#6
32120-MCA-S80
SUB-HARNESS, RR.
$475.61¢237 806
1
#006
32120-MCA-S80
SUB-HARNESS, RR.
$475.61¢237 806
1
#007
32130-MCA-S40
SUB-HARNESS, L. SADDLEBAG
$44.71¢22 356
1
#7
32130-MCA-S40
SUB-HARNESS, L. SADDLEBAG
$44.71¢22 356
1
#008
32140-MCA-S40
SUB-HARNESS, TRUNK UNIT
$180.09¢90 044
1
#8
32140-MCA-S40
SUB-HARNESS, TRUNK UNIT
$180.09¢90 044
1
#9
32146-SH3-003
CONNECTOR, DIODE (2P)
$21.51¢10 756
1
#009
32146-SH3-003
CONNECTOR, DIODE (2P)
$21.51¢10 756
1
#010
32146-SH3-003
CONNECTOR, DIODE (2P)
$21.51¢10 756
1
#10
32146-SH3-003
CONNECTOR, DIODE (2P)
$21.51¢10 756
1
#011
32146-SJ4-003
DIODE (3P)
$20.67¢10 337
1
#11
32146-SJ4-003
DIODE (3P)
$20.67¢10 337
1
#012
32147-SF1-003
CONNECTOR, DIODE (3P)
$48.10¢24 050
1
#12
32147-SF1-003
CONNECTOR, DIODE (3P)
$48.10¢24 050
1
#13
32180-MCA-S40
SUB-HARNESS, R. SADDLEBAG
$40.43¢20 213
1
#013
32180-MCA-S40
SUB-HARNESS, R. SADDLEBAG
$40.43¢20 213
1
#14
32401-MCA-S40
CABLE, STARTER BATTERY
$46.11¢23 056
1
#014
32401-MCA-S40
CABLE, STARTER BATTERY
$46.11¢23 056
1
#015
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.83¢2 913
1
#15
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.83¢2 913
1
#16
32606-KCW-J91
CAP, DUMMY (2P) (RED)
$4.14¢2 069
1
#016
32606-KCW-J91
CAP, DUMMY (2P) (RED)
$4.14¢2 069
1
#017
32702-MCA-A61
PROTECTOR, HARNESS (B)
$6.67¢3 338
1
#17
32702-MCA-A61
PROTECTOR, HARNESS (B)
$6.67¢3 338
1
#18
32901-MA1-000
CLIP, SUB-WIRE
$6.70¢3 350
1
#018
32901-MA1-000
CLIP, SUB-WIRE
$6.70¢3 350
1
#019
38211-MCA-A61
FUSE, BLOCK (60A) (LOW-PROFILE)
$2.88¢1 438
1
#19
38211-MCA-A61
FUSE, BLOCK (60A) (LOW-PROFILE)
$2.88¢1 438
1
#020
38211-SNA-A11
FUSE, BLOCK (30A)
$5.25¢2 625
1
#20
38211-SNA-A11
FUSE, BLOCK (30A)
$5.25¢2 625
1
#021
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
$25.79¢12 894
1
#21
38231-SFE-J01
FUSE A, MULTI BLOCK (120A/40A)
$25.79¢12 894
1
#022
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
$1.25¢625
1
#22
38235-S04-003
PULLER, MINI FUSE (SUMITOMO)
$1.25¢625
1
#23
38252-MCA-A61
COVER (UPPER)
$9.63¢4 813
1
#023
38252-MCA-A61
COVER (UPPER)
$9.63¢4 813
1
#24
38256-MCA-A61
COVER (LOWER)
$8.85¢4 425
1
#024
38256-MCA-A61
COVER (LOWER)
$8.85¢4 425
1
#025
38281-MCA-A61
COVER (UPPER)
$17.52¢8 763
1
#25
38281-MCA-A61
COVER (UPPER)
$17.52¢8 763
1
#26
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
$17.95¢8 975
1
#026
38501-MCA-A61
RELAY ASSY., POWER (MICRO ISO 4P)
$17.95¢8 975
1
#27
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
$17.95¢8 975
1
#027
38502-MCA-A61
RELAY ASSY., POWER (MICRO ISO 5P)
$17.95¢8 975
1
#028
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
$4.86¢2 431
1
#28
38503-MCA-A61
RELAY, POWER (MICRO ISO 4P)
$4.86¢2 431
1
#29
90101-TF6-003
BOLT, WELDING (5X16)
$5.51¢2 756
1
#029
90101-TF6-003
BOLT, WELDING (5X16)
$5.51¢2 756
1
#30
90114-KFK-000
SCREW, SPECIAL (5X12)
$2.05¢1 025
1
#030
90114-KFK-000
SCREW, SPECIAL (5X12)
$2.05¢1 025
1
#31
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$7.04¢3 519
1
#031
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$7.04¢3 519
1
#032
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#32
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#33
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#033
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#034
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#34
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#035
91411-679-000
CLIP
$20.86¢10 431
1
#35
91411-679-000
CLIP
$20.86¢10 431
1
#036
91571-MCA-P00
HOLDER, CONNECTOR
$4.33¢2 163
1
#36
91571-MCA-P00
HOLDER, CONNECTOR
$4.33¢2 163
1
#37
91571-SR3-003
HOLDER, CONNECTOR
$3.84¢1 919
1
#037
91571-SR3-003
HOLDER, CONNECTOR
$3.84¢1 919
1
#38
93903-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#038
93903-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#039
98200-40500
FUSE, MINI (5A)
$1.49¢744
1
#39
98200-40500
FUSE, MINI (5A)
$1.49¢744
1
#040
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
#40
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
#41
98200-41500
FUSE, MINI (15A)
$1.49¢744
1
#041
98200-41500
FUSE, MINI (15A)
$1.49¢744
1
#42
98200-42000
FUSE, MINI (20A)
$1.49¢744
1
#042
98200-42000
FUSE, MINI (20A)
$1.49¢744
1
#043
98200-43000
FUSE, MINI (30A)
$2.15¢1 075
1
#43
98200-43000
FUSE, MINI (30A)
$2.15¢1 075
1
#044
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#44
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
