FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

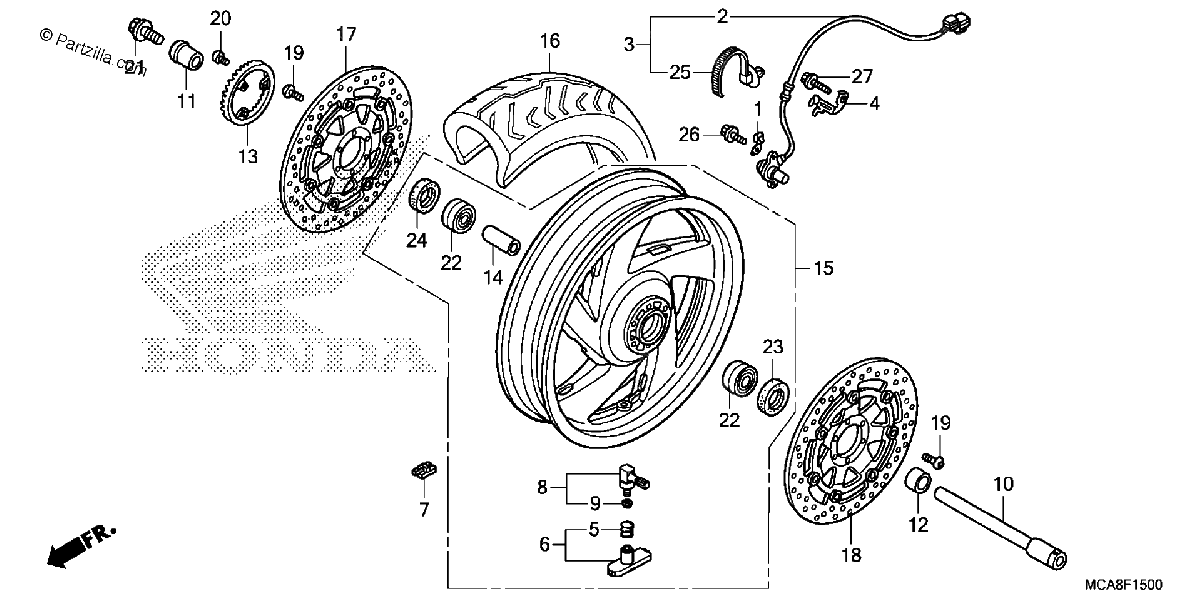

Diagrama de FRONT WHEEL

Repuestos

#1
38515-MCA-970
GUIDE, SENSOR WIRE
$11.06¢5 531
1
#001
38515-MCA-970
GUIDE, SENSOR WIRE
$11.06¢5 531
1
#2
38520-MCA-A71
SENSOR, FR. WHEEL SPEED
$235.77¢117 887
1
#3
38520-MCA-A81
SENSOR, FR. WHEEL SPEED
$235.77¢117 887
1
#003
38520-MCA-A81
SENSOR, FR. WHEEL SPEED
$235.77¢117 887
1
#4
38521-MCA-970
STAY, FR. SPEED SENSOR
$10.44¢5 221
1
#5
39401-MCA-R31
SPRING, TPMS
No Disponible
1
#005
39401-MCA-R31
SPRING, TPMS
No Disponible
1
#006
39411-MCA-R32
SENSOR, TPMS
No Disponible
1
#6
39411-MCA-R32
SENSOR, TPMS
No Disponible
1
#007
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#007
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#7
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#7
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#007
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#7
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#008
42755-MCA-R31
VALVE ASSY., RIM
No Disponible
1
#8
42755-MCA-R31
VALVE ASSY., RIM
No Disponible
1
#009
42758-MCA-R31
GROMMET, VALVE
No Disponible
1
#9
42758-MCA-R31
GROMMET, VALVE
No Disponible
1
#10
44301-MCA-S40
AXLE, FR. WHEEL
$72.45¢36 225
1
#010
44301-MCA-S40
AXLE, FR. WHEEL
$72.45¢36 225
1
#011
44311-MCA-000
COLLAR, R. FR. WHEEL SIDE
$17.96¢8 981
1
#11
44311-MCA-000
COLLAR, R. FR. WHEEL SIDE
$17.96¢8 981
1
#12
44312-MCA-000
COLLAR, L. FR. WHEEL SIDE
$11.85¢5 923
1
#012
44312-MCA-000
COLLAR, L. FR. WHEEL SIDE
$11.85¢5 923
1
#013
44515-MCA-971
RING, FR. PULSER
$80.91¢40 457
1
#13
44515-MCA-971
RING, FR. PULSER
$80.91¢40 457
1
#014
44620-MCA-000
COLLAR, FR. AXLE DISTANCE
$11.18¢5 589
1
#14
44620-MCA-000
COLLAR, FR. AXLE DISTANCE
$11.18¢5 589
1
#15
44650-MJK-315
WHEEL SUB-ASSY., FR. (COO)
$1448.79¢724 397
1
#015
44650-MCA-305
WHEEL SUB-ASSY., FR. (COO)
No Disponible
1
#15
44650-MJK-305
WHEEL SUB-ASSY., FR. (COO)
$1448.79¢724 397
1
#15
44650-MCA-305
WHEEL SUB-ASSY., FR. (COO)
No Disponible
1
#016
44711-MCA-D02
TIRE, FR. (130/70R18) (M/C 63H) (BS)
$316.58¢158 292
1
#16
44711-MCA-D02
TIRE, FR. (130/70R18) (M/C 63H) (BS)
$316.58¢158 292
1
#17
45120-MCA-003
DISK, Right Front BRAKE
$542.77¢271 383
1
#017
45120-MCA-003
DISK, Right Front BRAKE
$542.77¢271 383
1
#17
45120-MJG-671
DISK, R. FR. BRAKE
$503.32¢251 660
1
#18
45220-MCA-003
DISK, L Front BRAKE
$542.77¢271 383
1
#018
45220-MCA-003
DISK, L Front BRAKE
$542.77¢271 383
1
#18
45220-MJG-671
DISK, L. FR. BRAKE
$592.01¢296 004
1
#019
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#19
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#020
90131-KPB-751
BOLT, TORX (5X10)
$3.15¢1 576
1
#20
90131-KPB-751
BOLT, TORX (5X10)
$3.15¢1 576
1
#21
90305-ML7-000
BOLT, FR. AXLE
$10.82¢5 411
1
#021
90305-ML7-000
BOLT, FR. AXLE
$10.82¢5 411
1
#022
91055-MCA-A61
BEARING, RADIAL BALL (6004) (X2) (LU)
$23.61¢11 805
1
#22
91055-MCA-A61
BEARING, RADIAL BALL (6004) (X2) (LU)
$23.61¢11 805
1
#023
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#23
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#023
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#23
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#24
91257-MAY-003
DUST SEAL (28X42X8) (NOK)
$9.87¢4 934
1
#024
91257-MAY-003
DUST SEAL (28X42X8) (NOK)
$9.87¢4 934
1
#025
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#25
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#26
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#026
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#27
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
