FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

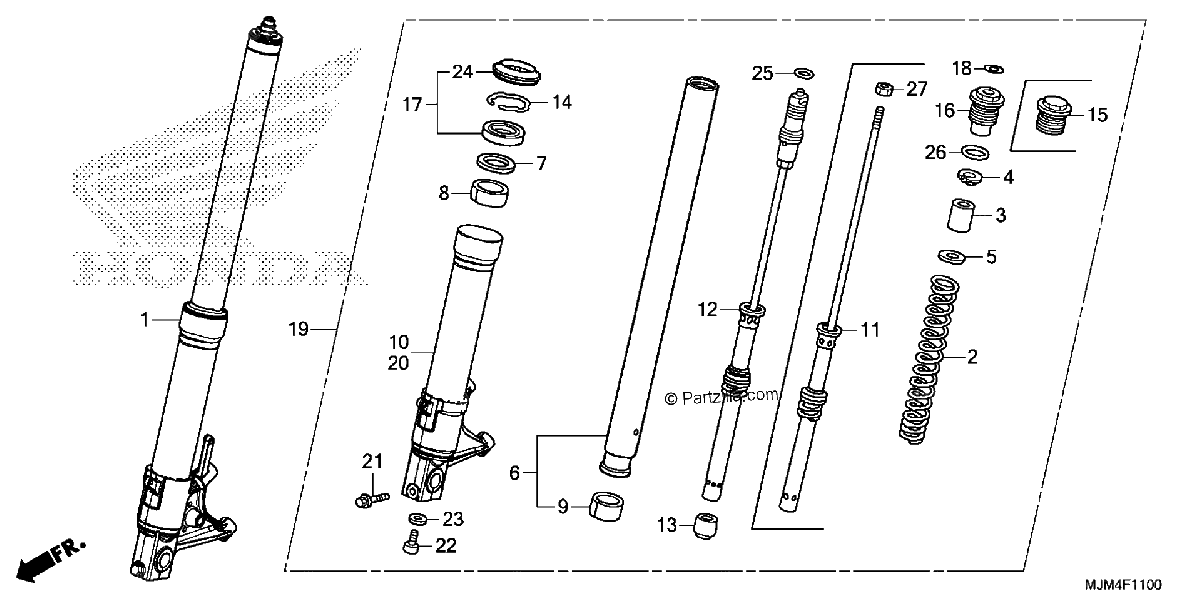

Diagrama de FRONT FORK

Repuestos

#1
51400-MJM-305
FORK ASSY., R. FR. (COO)
$1105.92¢552 960
1
#2
51401-MJM-D01
SPRING, FR. FORK
$94.47¢47 236
1
#3
51402-MS2-003
COLLAR, SPRING
$21.09¢10 545
1
#4
51404-MR7-003
SEAT, SPRING
$13.36¢6 681
1
#5
51405-KA4-711
SEAT, SPRING
$6.95¢3 473
1
#6
51410-MJM-D01
PIPE, FR. FORK
$431.96¢215 981
1
#7
51412-KA4-711
RING, BACK-UP
$10.38¢5 192
1
#8
51414-MCF-003
BUSH, GUIDE
$11.49¢5 744
1
#9
51415-MBW-E11
BUSH, SLIDER
$11.07¢5 537
1
#10
51420-MJM-D01
CASE, R. (LOWER)
$537.56¢268 778
1
#11
51430-MJM-D01
DAMPER, FR.
$390.85¢195 425
1
#13
51432-MS2-003
PIECE, OIL LOCK
$37.78¢18 889
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#15
51454-MJM-D01
BOLT, FR. FORK
$72.77¢36 386
1
#17
51490-MFL-003
SEAL SET, FR. FORK
$21.36¢10 678
1
#19
51500-MJM-305
FORK ASSY., L. FR. (COO)
$1105.92¢552 960
1
#20
51520-MJM-D01
CASE, L. (LOWER)
$561.54¢280 773
1
#21
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#22
90116-383-721
BOLT, SOCKET (8X27)
$5.72¢2 858
1
#23
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#24
91254-MEJ-003
DUST SEAL
$13.80¢6 900
1
#26
91356-KA4-711
O-RING (35.2X2.4)
$4.20¢2 099
1
#27
51451-MAJ-G41
NUT, HEX. (10MM)
$3.43¢1 713
1
