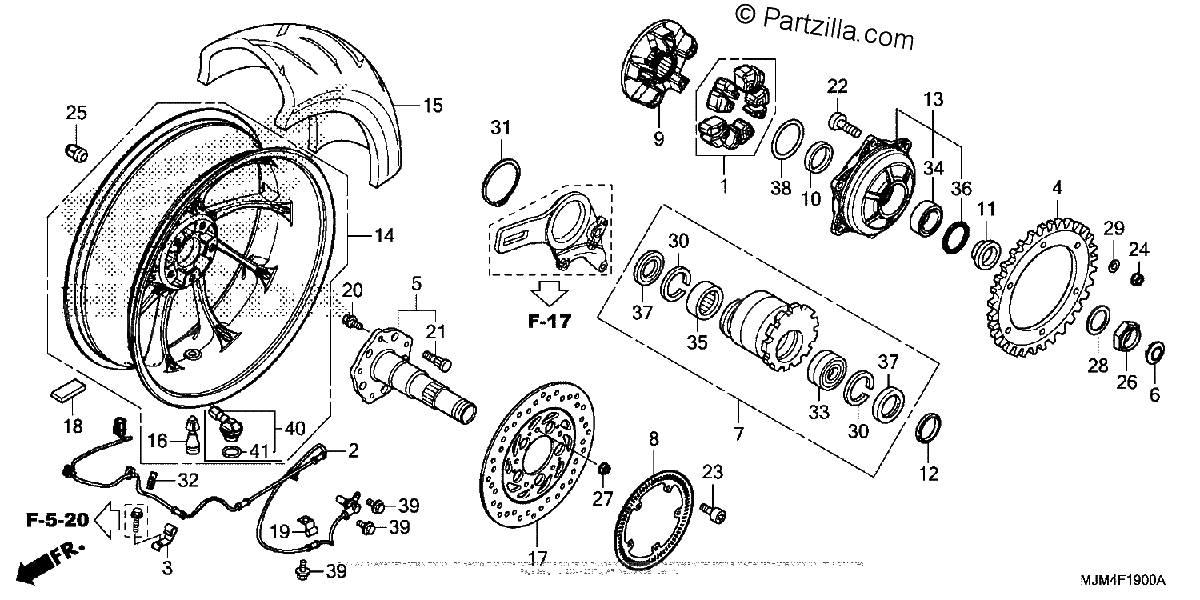

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$38.86¢19 429
#2
SENSOR, RR. WHEEL SPEED
$229.82¢114 908
#3
CLAMP, SPEED SENSOR WIRE
$7.26¢3 628
#4
SPROCKET, FINAL DRIVEN (43T)
$121.04¢60 519
#5
AXLE, RR.
$316.33¢158 165
#6
CAP, RR. WHEEL
$8.11¢4 054
#7
HOLDER, BEARING
$350.87¢175 433
#8
RING, RR. PULSER
$166.39¢83 197
#9
FLANGE, FINAL DRIVEN
$168.75¢84 376
#10
COLLAR, RR. AXLE DISTANCE
$23.41¢11 707
#11
COLLAR, RR. AXLE SIDE
$25.92¢12 960
#12
COLLAR, RR. AXLE
$26.71¢13 357
#13
HUB ASSY., SPROCKET
$233.77¢116 886
#14
WHEEL SUB-ASSY., RR. (TYPE1) (COO)
$1007.91¢503 953
#15
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$658.06¢329 032
#15
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$384.02¢192 010
#16
VALVE, RIM (BS)
$13.60¢6 802
#16
VALVE, RIM (DUNLOP)
$13.60¢6 802
#17
DISK, RR. BRAKE
$385.33¢192 665
#18
WEIGHT, BALANCE (10G)
$5.22¢2 610
#18
WEIGHT, BALANCE (15G)
$6.22¢3 111
#18
WEIGHT, BALANCE (20G)
$6.22¢3 111
#19
CLAMP A, SENSOR CORD
$4.19¢2 093
#20
BOLT, FLANGE (8X20)
$2.28¢1 138
#21
BOLT, WHEEL (NAGOYA RASHI)
$3.20¢1 598
#21
BOLT, WHEEL (ROCKNEL FASTENER)
$3.20¢1 598
#22
BOLT (10X30)
$3.61¢1 805
#23
BOLT, TORX (5X7)
$3.60¢1 800
#24
NUT, U (10MM)
$4.83¢2 415
#25
NUT, WHEEL (FUSE RASHI)
$12.62¢6 308
#26
NUT, LOCK (35MM)
$13.74¢6 871
#27
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
#27
NUT, FLANGE (8MM)
$3.74¢1 869
#28
WASHER, CONICAL SPRING (35)
$9.14¢4 571
#29
WASHER (10MM)
$3.32¢1 662
#30
CIRCLIP (INNER) (62MM)
$7.08¢3 542
#31
CIRCLIP (OUTER) (75MM)
$12.35¢6 176
#32
CLIP, CABLE (14MM)
$2.09¢1 047
#33
BEARING, RADIAL BALL (6908LU)
$50.80¢25 398
#34
BEARING, RADIAL BALL (35X55X10)
$95.02¢47 512
#35
BEARING, RR. AXLE NEEDLE
$45.31¢22 655
#36
DUST SEAL (45X55X5) (ARAI)
$9.31¢4 658
#37
DUST SEAL (50X62X5)
$13.65¢6 825
#38
O-RING, SPROCKET HUB
$3.09¢1 547
#39
BOLT, FLANGE (6X10)
$1.92¢960
