STARTING CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

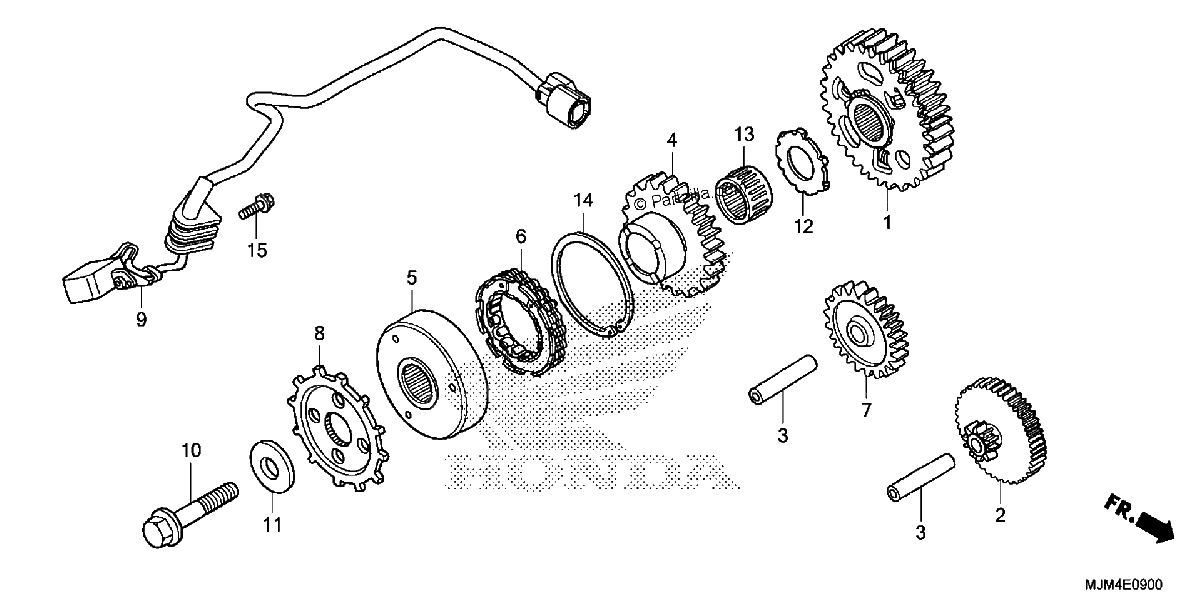

Diagrama de STARTING CLUTCH

Repuestos

#1
23110-MCW-000
GEAR, PRIMARY DRIVE (33T)
$285.50¢142 749
1
#2
28101-MJM-D00
GEAR, STARTER REDUCTION (60T/10T)
$99.70¢49 853
1
#3
28102-ML7-000
PIN (10X36.5)
$9.31¢4 658
1
#4
28110-MBG-000
GEAR, STARTING CLUTCH (39T)
$213.13¢106 565
1
#5
28115-MCW-000
FLANGE, STARTING CLUTCH
$109.72¢54 861
1
#6
28125-MW4-003
CLUTCH, ONE-WAY
$116.17¢58 086
1
#7
28131-MJM-D00
GEAR, STARTER IDLE (29T)
$61.16¢30 579
1
#8
30291-MBG-770
ROTOR, PULSE
$20.23¢10 114
1
#9
30300-MJM-D01
GENERATOR ASSY., PULSE
$122.07¢61 036
1
#10
90023-MV9-670
BOLT, FLANGE (10MM)
$12.04¢6 020
1
#11
90405-KT7-000
WASHER (10.5X27)
$5.58¢2 789
1
#12
90509-MCW-000
GUIDE, PRIMARY DRIVE GEAR
$7.76¢3 881
1
#13
91022-MW4-003
BEARING, NEEDLE (30X35X22.8)
$43.73¢21 867
1
#14
94520-63000
CIRCLIP (INNER) (63MM)
$4.09¢2 047
1
#15
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
