CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

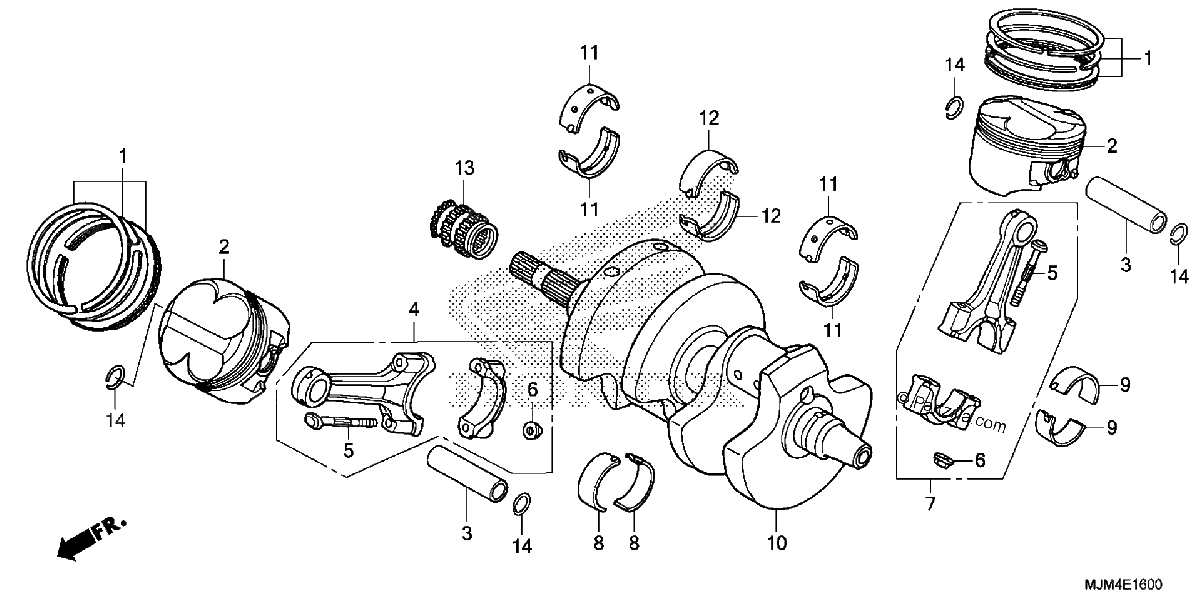

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
13011-MW4-305
RING SET, PISTON (STD) (RIKEN)
$66.83¢33 413
1
#1
13021-MW4-305
RING SET, PISTON (OVER SIZE) (0.25) (RIKEN)
$70.89¢35 443
1
#1
13031-MW4-305
RING SET, PISTON (OVER SIZE) (0.50) (RIKEN)
$67.85¢33 925
1
#2
13101-MJM-D00
PISTON (STD)
$110.64¢55 321
1
#2
13102-MJM-D00
PISTON (OVER SIZE) (0.25)
$115.08¢57 540
1
#2
13103-MJM-D00
PISTON (OVER SIZE) (0.50)
$115.08¢57 540
1
#3
13111-MBG-000
PIN, PISTON
$21.73¢10 867
1
#4
13210-MBG-000
ROD ASSY., FR. CONNECTING
$309.26¢154 629
1
#5
13213-ML7-020
BOLT, CONNECTING ROD
$8.92¢4 462
1
#6
13215-ML7-000
NUT, CONNECTING ROD
$4.34¢2 168
1
#7
13220-MBG-000
ROD ASSY., RR. CONNECTING
$309.26¢154 629
1
#8
13224-ML7-690
BEARING A, FR. CONNECTING ROD (BLUE)
$14.44¢7 222
1
#8
13225-ML7-690
BEARING B, FR. CONNECTING ROD (BLACK)
$12.83¢6 417
1
#8
13226-ML7-690
BEARING C, FR. CONNECTING ROD (BROWN)
No Disponible
1
#8
13227-ML7-690
BEARING D, FR. CONNECTING ROD (GREEN)
No Disponible
1
#8
13228-ML7-690
BEARING E, FR. CONNECTING ROD (YELLOW)
No Disponible
1
#9
13237-ML7-690
BEARING D, RR. CONNECTING ROD (GREEN/GREEN)
$15.08¢7 538
1
#9
13238-ML7-690
BEARING E, RR. CONNECTING ROD (YELLOW/YELLOW)
No Disponible
1
#9
13235-ML7-690
BEARING B, RR. CONNECTING ROD (BLACK/BLACK)
No Disponible
1
#9
13236-ML7-690
BEARING C, RR. CONNECTING ROD (BROWN/BROWN)
$16.13¢8 067
1
#9
13234-ML7-690
BEARING A, RR. CONNECTING ROD (BLUE/BLUE)
$15.08¢7 538
1
#10
13310-MCW-010
CRANKSHAFT
$1032.68¢516 338
1
#11
13313-MCW-000
BEARING A, CRANKSHAFT SIDE (BLUE)
$14.14¢7 073
1
#11
13314-MCW-000
BEARING B, CRANKSHAFT SIDE (BLACK)
$11.71¢5 853
1
#11
13315-MCW-000
BEARING C, CRANKSHAFT SIDE (BROWN)
$13.18¢6 590
1
#11
13316-MCW-000
BEARING D, CRANKSHAFT SIDE (GREEN)
$13.18¢6 590
1
#11
13317-MCW-000
BEARING E, CRANKSHAFT SIDE (YELLOW)
$13.18¢6 590
1
#12
13323-MCW-000
BEARING A, CRANKSHAFT CENTER (BLUE)
$13.18¢6 590
1
#12
13324-MCW-000
BEARING B, CRANKSHAFT CENTER (BLACK)
$13.77¢6 883
1
#12
13325-MCW-000
BEARING C, CRANKSHAFT CENTER (BROWN)
$13.18¢6 590
1
#12
13326-MCW-000
BEARING D, CRANKSHAFT CENTER (GREEN)
$13.18¢6 590
1
#12
13327-MCW-000
BEARING E, CRANKSHAFT CENTER (YELLOW)
$13.18¢6 590
1
#13
14406-MCW-000
SPROCKET, TIMING (19T)
$58.33¢29 164
1
#14
94601-17000
CLIP, PISTON PIN (17MM)
$1.94¢972
1
