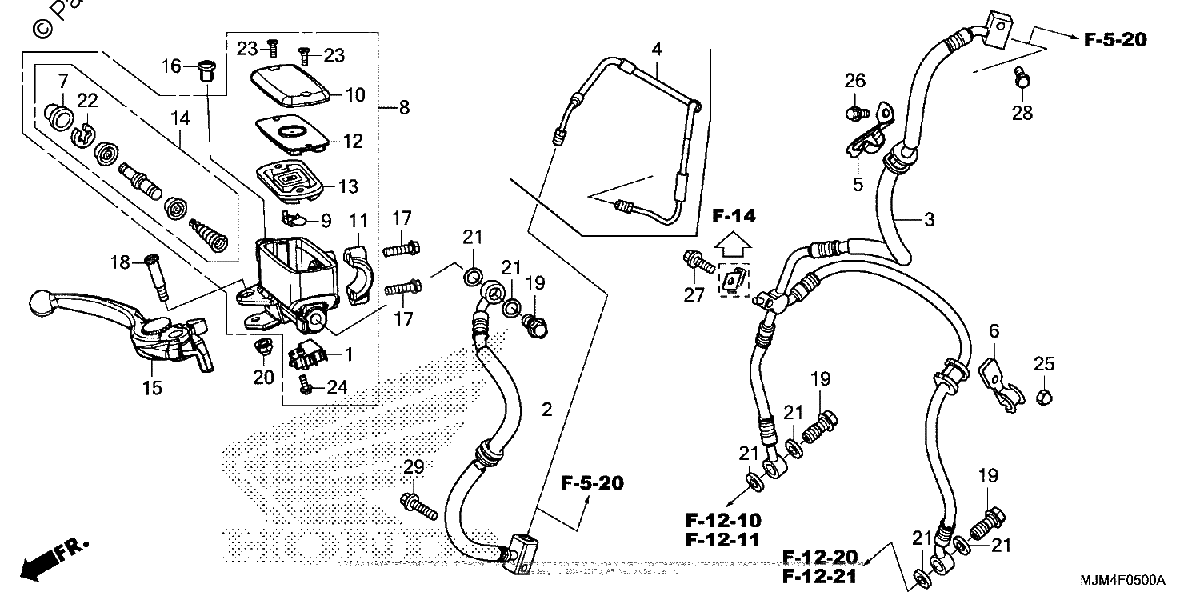

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#2
HOSE A, FR. BRAKE
$60.64¢30 319
#3
HOSE B, FR. BRAKE
$181.57¢90 788
#4
PIPE, FR. BRAKE
$50.60¢25 300
#5
CLAMP, FR. BRAKE HOSE
$5.47¢2 738
#6
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#7
BOOT
$14.24¢7 119
#8
MASTER CYLINDER SUB-ASSY., FR. (COO)
$383.20¢191 600
#8
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$383.20¢191 600
#9
PROTECTOR
$5.20¢2 600
#10
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#11
HOLDER, MASTER CYLINDER
$15.74¢7 869
#12
PLATE, DIAPHRAGM
$12.36¢6 181
#13
DIAPHRAGM
$17.68¢8 838
#14
MASTER CYLINDER SET
$55.46¢27 731
#15
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
#16
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#16
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#17
BOLT, FLANGE (6X22)
$1.85¢925
#18
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#19
BOLT, OIL (10X22)
$8.89¢4 444
#20
NUT, CAP (6MM)
$2.76¢1 381
#21
WASHER, OIL BOLT
$4.85¢2 425
#22
CIRCLIP
$3.10¢1 550
#23
SCREW, FLAT (4X12)
$1.16¢581
#23
SCREW, FLAT (4X12)
$1.16¢581
#24
SCREW-WASHER (4X12)
$1.72¢862
#24
SCREW-WASHER (4X12)
$1.72¢862
#25
NUT, CAP (6MM)
$1.99¢994
#26
BOLT, FLANGE (6X12)
$2.31¢1 156
#27
BOLT, FLANGE (6X18)
$1.63¢813
#28
BOLT, FLANGE (6X25)
$1.72¢862
#29
BOLT, FLANGE (6X28)
$1.95¢975
