TRANSMISSION 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

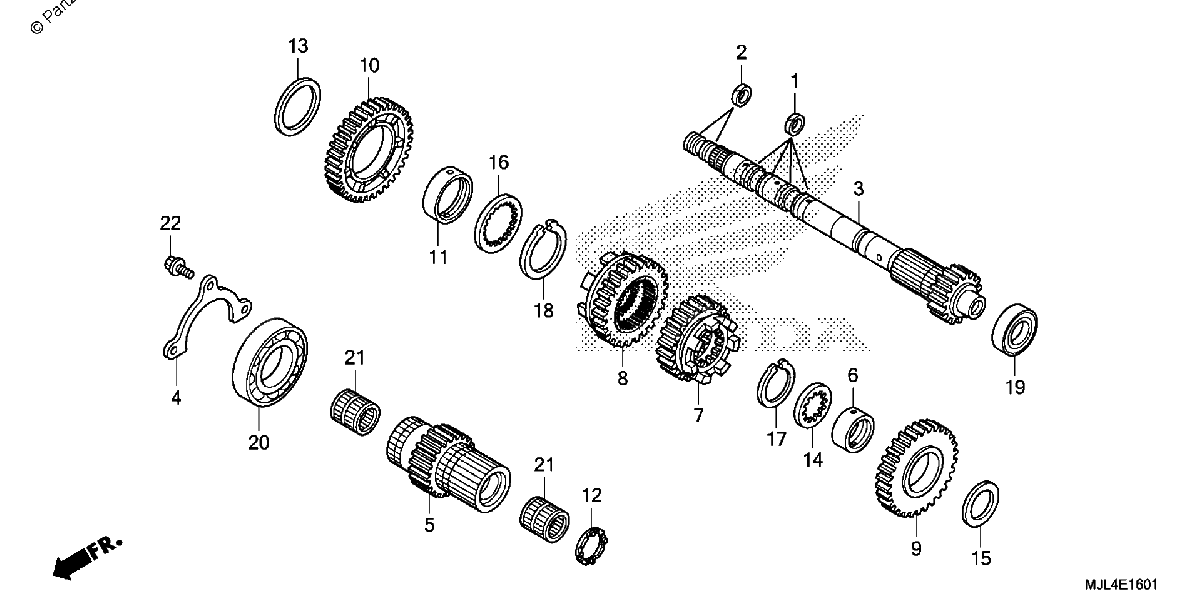

Diagrama de TRANSMISSION 2

Repuestos

#1
22814-PFL-003
RING, SEALING (26MM)
$10.04¢5 019
1
#001
22814-PFL-003
RING, SEALING (26MM)
$10.04¢5 019
1
#002
22814-RGC-003
SEAL, RING (21.2MM)
$12.16¢6 081
1
#2
22814-RGC-003
SEAL, RING (21.2MM)
$12.16¢6 081
1
#003
23210-MJL-D50
MAINSHAFT (INNER)
$408.65¢204 325
1
#3
23210-MJL-D50
MAINSHAFT (INNER)
$408.65¢204 325
1
#4
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
1
#004
23212-MGS-D30
PLATE, MAINSHAFT BEARING SETTING
$4.13¢2 063
1
#5
23231-MJL-D50
MAINSHAFT (OUTER) (19T)
$340.54¢170 269
1
#005
23231-MJL-D50
MAINSHAFT (OUTER) (19T)
$340.54¢170 269
1
#006
23442-MS2-610
COLLAR (30X11.2)
$30.55¢15 275
1
#6
23442-MS2-610
COLLAR (30X11.2)
$30.55¢15 275
1
#7
23451-MGS-D20
GEAR, MAINSHAFT THIRD (22T)
$140.88¢70 438
1
#007
23451-MGS-D20
GEAR, MAINSHAFT THIRD (22T)
$140.88¢70 438
1
#8
23471-MJL-D50
GEAR, MAINSHAFT FOURTH (25T)
$118.10¢59 050
1
#008
23471-MJL-D50
GEAR, MAINSHAFT FOURTH (25T)
$118.10¢59 050
1
#9
23491-MGS-D20
GEAR, MAINSHAFT FIFTH (30T)
$122.97¢61 488
1
#009
23491-MGS-D20
GEAR, MAINSHAFT FIFTH (30T)
$122.97¢61 488
1
#010
23511-MGS-D20
GEAR, MAINSHAFT SIXTH (37T)
$122.97¢61 488
1
#10
23511-MGS-D20
GEAR, MAINSHAFT SIXTH (37T)
$122.97¢61 488
1
#011
23512-MGS-D20
COLLAR (40X43X10)
$16.25¢8 125
1
#11
23512-MGS-D20
COLLAR (40X43X10)
$16.25¢8 125
1
#12
90401-MJL-D50
WASHER, SPECIAL
$6.54¢3 269
1
#012
90401-MJL-D50
WASHER, SPECIAL
$6.54¢3 269
1
#013
90411-MGE-D00
WASHER (40.2X51X1)
$15.19¢7 594
1
#13
90411-MGE-D00
WASHER (40.2X51X1)
$15.19¢7 594
1
#14
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#014
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#15
90458-MAT-E00
WASHER, THRUST (30.5MM)
$2.36¢1 181
1
#015
90458-MAT-E00
WASHER, THRUST (30.5MM)
$2.36¢1 181
1
#16
90493-MGE-D00
WASHER, SPLINE (40MM)
$10.39¢5 194
1
#016
90493-MGE-D00
WASHER, SPLINE (40MM)
$10.39¢5 194
1
#017
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#17
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#018
90605-MGE-D00
CIRCLIP (40MM)
$8.94¢4 469
1
#18
90605-MGE-D00
CIRCLIP (40MM)
$8.94¢4 469
1
#019
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
1
#19
91006-MGS-D31
BEARING, RADIAL BALL (6204U)
$22.31¢11 156
1
#020
91023-MGS-D21
BEARING, RADIAL BALL (6008)
$30.82¢15 413
1
#20
91023-MGS-D21
BEARING, RADIAL BALL (6008)
$30.82¢15 413
1
#21
91102-KR0-003
BEARING, NEEDLE (26X31X24) (NTN)
$38.84¢19 419
1
#021
91102-KR0-003
BEARING, NEEDLE (26X31X24) (NTN)
$38.84¢19 419
1
#22
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#022
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
