FRONT WHEEL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

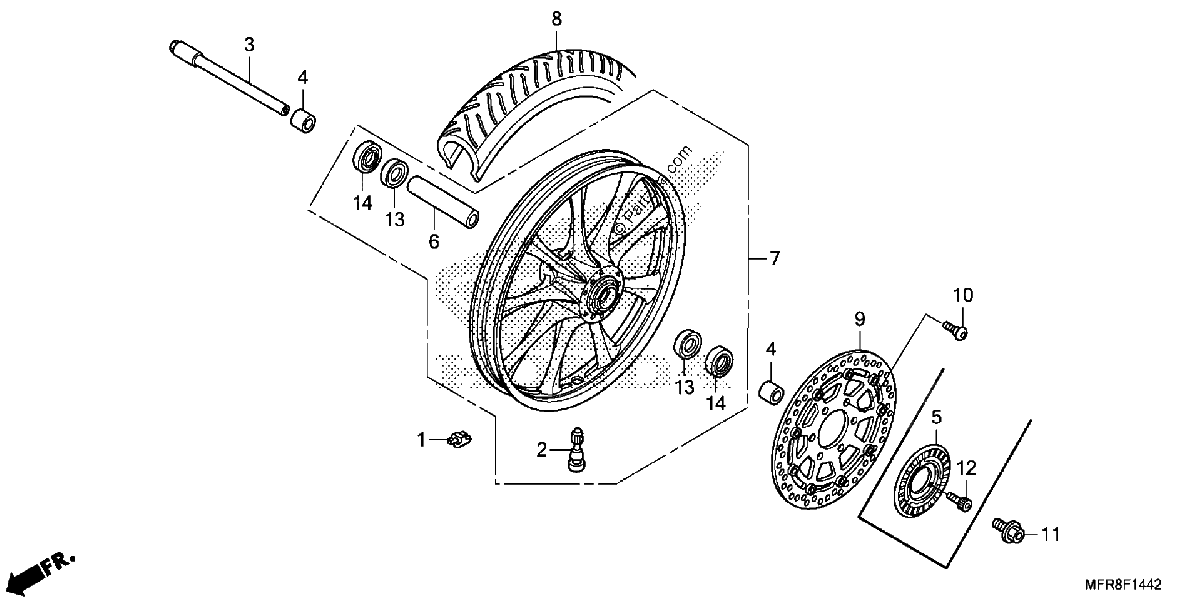

Diagrama de FRONT WHEEL 3

Repuestos

#1
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#001
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#1
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#001
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#001
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#1
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#002
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#2
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#2
42753-MCF-008
VALVE, RIM (PIRELLI)
$8.61¢4 307
1
#002
42753-MCF-008
VALVE, RIM (PIRELLI)
$8.61¢4 307
1
#3
44301-MFR-670
AXLE, FR. WHEEL
$110.22¢55 108
1
#003
44301-MFR-670
AXLE, FR. WHEEL
$110.22¢55 108
1
#4
44311-MCH-A00
COLLAR, L. FR. WHEEL SIDE
$13.91¢6 958
1
#004
44311-MCH-A00
COLLAR, L. FR. WHEEL SIDE
$13.91¢6 958
1
#6
44620-MFR-670
COLLAR, FR. AXLE DISTANCE
$22.98¢11 489
1
#006
44620-MFR-670
COLLAR, FR. AXLE DISTANCE
$22.98¢11 489
1
#007
44650-MFR-681
WHEEL SUB-Assembly., Front.
$1559.57¢779 786
1
#007
44650-MFR-405
WHEEL SUB-ASSY., FR. (COO)
$1559.57¢779 786
1
#7
44650-MFR-405
WHEEL SUB-ASSY., FR. (COO)
$1559.57¢779 786
1
#8
44711-MFR-672
TIRE, FR. (90/90-21 M/C 54H) (DUNLOP)
$228.69¢114 345
1
#8
44711-MFR-673
TIRE, FR. (90/90-21 M/C 54H) (METZELER)
No Disponible
1
#008
44711-MFR-673
TIRE, FR. (90/90-21 M/C 54H) (METZELER)
No Disponible
1
#8
44711-MFR-674
TIRE, FR. (90/90-21 M/C 54H) (DUNLOP)
$228.69¢114 345
1
#008
44711-MFR-674
TIRE, FR. (90/90-21 M/C 54H) (DUNLOP)
$228.69¢114 345
1
#008
44711-MFR-676
TIRE, Front. (90/90-21 M/C 54H) (DUNLOP)
$228.69¢114 345
1
#9
45120-MFR-681
DISK, FR. BRAKE
$757.94¢378 971
1
#009
45120-MFR-681
DISK, FR. BRAKE
$757.94¢378 971
1
#010
90105-KFK-000
BOLT, DISK (8X22)
$3.96¢1 978
1
#10
90105-KFK-000
BOLT, DISK (8X22)
$3.96¢1 978
1
#011
90105-MBT-610
BOLT, FR. AXLE
$6.44¢3 220
1
#11
90105-MBT-610
BOLT, FR. AXLE
$6.44¢3 220
1
#013
91053-MM5-004
BEARING, RADIAL BALL (6304UU)
$34.34¢17 170
1
#13
91053-MM5-004
BEARING, RADIAL BALL (6304UU)
$34.34¢17 170
1
#014
91253-442-003
DUST SEAL (30X52X7)
$14.90¢7 452
1
#14
91253-442-003
DUST SEAL (30X52X7)
$14.90¢7 452
1
