FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

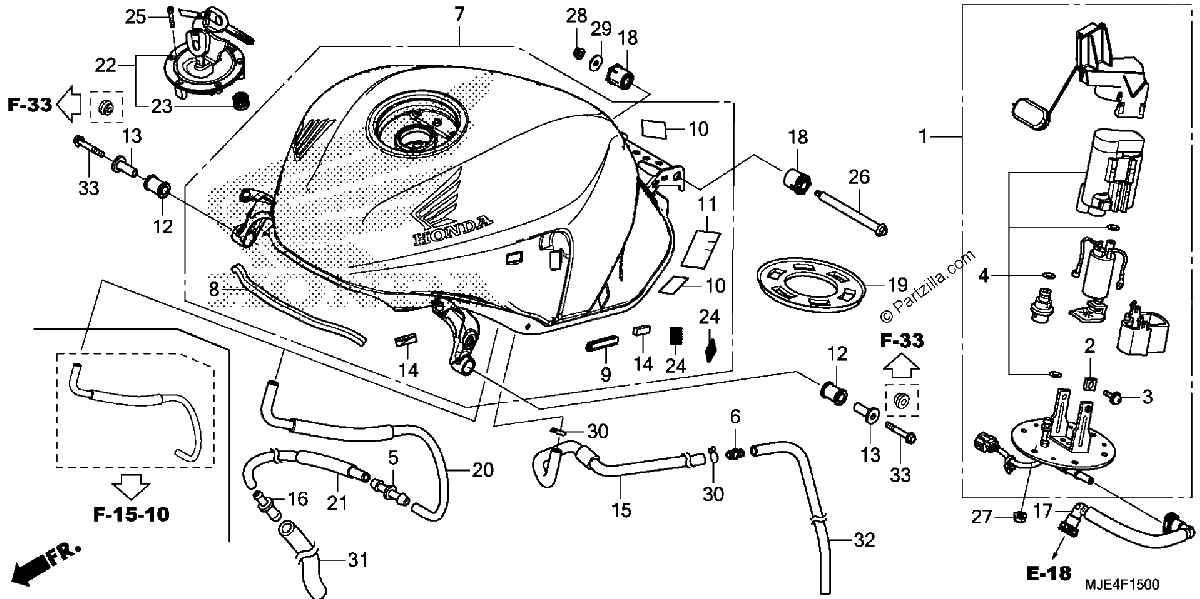

Diagrama de FUEL TANK

Repuestos

#1
16700-MJE-D01
PUMP ASSY., FUEL
$589.91¢294 956
1
#2
16711-MGS-D31
STOPPER
$6.23¢3 113
1
#3
16712-MGS-D31
SCREW (4X6.6)
$2.41¢1 206
1
#4
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#6
17359-419-670
JOINT, BREATHER TUBE
$2.64¢1 319
1
#7
17500-MJE-D00ZB
TANK Assembly., FUEL (TYPE2) (WL) (NH436M MAT GUNPOWDER Black MET)
$907.88¢453 938
1
#8
17515-MJE-D00
TRIM, FUEL TANK
$17.98¢8 988
1
#9
17516-MEE-D00
TRIM, FUEL TANK
$3.91¢1 956
1
#10
17521-KY1-300
SEAL, TANK
$2.97¢1 487
1
#11
17521-MJE-D00
FILM, PROTECTOR
$8.32¢4 163
1
#12
17534-MFJ-D00
RUBBER, RR. TANK MOUNTING
$5.76¢2 881
1
#13
17538-KZZ-900
COLLAR
$3.01¢1 506
1
#14
17540-MJE-D00
FASTENER A, DUAL LOCK (8X25)
$1.95¢975
1
#15
17543-MJE-D00
TUBE, DRAIN
$7.38¢3 688
1
#17
17570-MJE-D01
HOSE, FUEL FEED
$76.95¢38 475
1
#18
17572-MJE-D00
CUSHION, RR. FUEL TANK
$2.99¢1 494
1
#19
17574-MGS-D30
GASKET, BASE
$28.36¢14 181
1
#22
17620-MJE-D01
CAP, FUEL FILLER
$285.68¢142 838
1
#23
17621-MGP-D61
SEAL, BREATHER
$6.23¢3 113
1
#24
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.65¢1 825
1
#25
90120-MJE-D00
BOLT, SOCKET (4X25) (SUS)
$1.23¢613
1
#26
90135-MJE-D00
BOLT, HINGE (10X102.4)
$3.81¢1 906
1
#27
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#28
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#29
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#30
95002-02130
CLIP, TUBE (B12.5)
$1.47¢737
1
#32
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#33
95701-06040-00
BOLT, FLANGE (6X40)
$2.41¢1 206
1
