RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

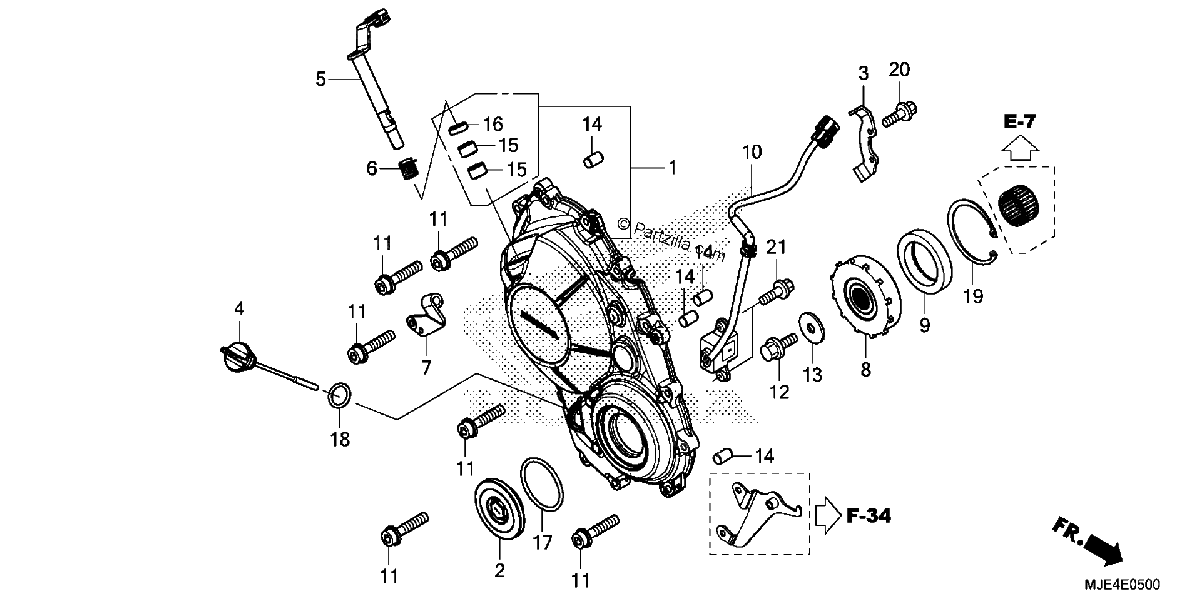

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-MJE-D01
COVER, R. CRANKCASE
$88.52¢44 262
1
#2
11332-MGZ-J00
CAP (45MM)
$25.86¢12 931
1
#3
11334-MJE-D00
CLAMP, PULSE GENERATOR CORD
$2.25¢1 125
1
#4
15650-MJE-D00
DIPSTICK, OIL
$11.45¢5 725
1
#5
22810-MJE-D00
LEVER, CLUTCH
$44.84¢22 419
1
#6
22815-MJE-D00
SPRING, CLUTCH LEVER
$1.41¢706
1
#7
22821-MJE-D00
RECEIVER, CLUTCH CABLE
$8.55¢4 275
1
#8
28115-MJE-D00
CLUTCH OUTER, STARTING
$174.80¢87 400
1
#9
28125-MJE-D01
CLUTCH, ONE-WAY
$107.85¢53 925
1
#10
30300-MJE-D01
GENERATOR ASSY., PULSE
$95.49¢47 744
1
#11
90003-MGZ-J00
BOLT, FLANGE SOCKET (6X28)
$0.84¢419
1
#12
90013-430-000
BOLT, SPECIAL (10X25)
$7.84¢3 919
1
#13
90405-MJE-D00
WASHER (10.5X31.8)
$5.51¢2 756
1
#14
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#15
91053-MFJ-D01
BEARING, NEEDLE (12X16X10)
$5.17¢2 588
1
#16
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#17
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#18
91307-KF0-003
O-RING (18X3) (ARAI)
$3.65¢1 825
1
#19
94520-63150
CIRCLIP (INNER) (63MM)
$4.74¢2 369
1
#20
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
