MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

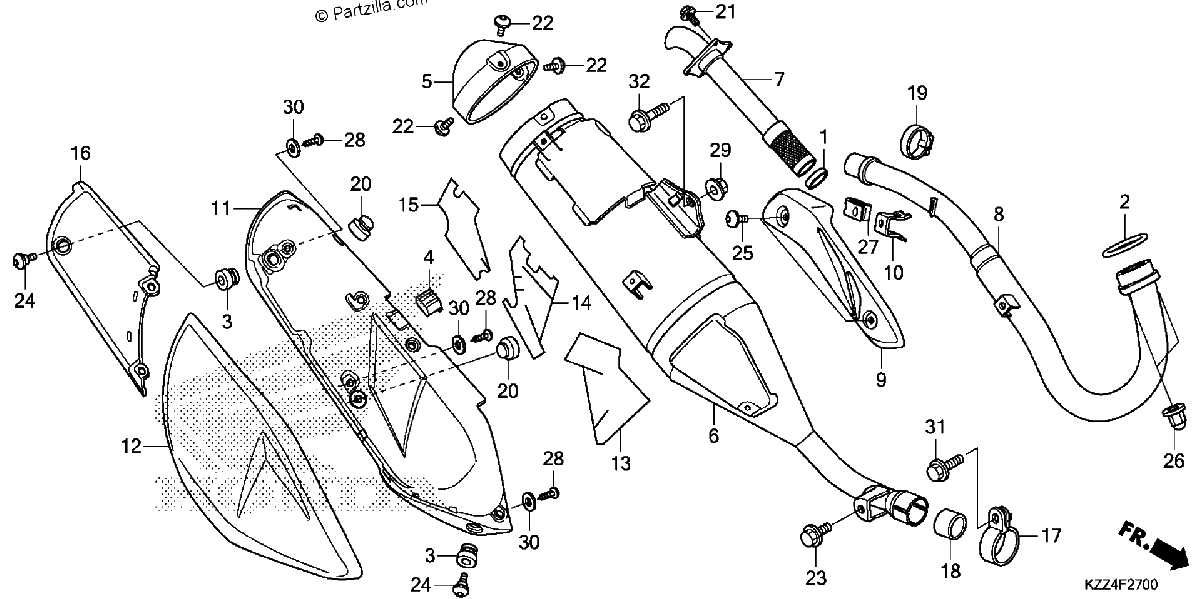

Diagrama de MUFFLER

Repuestos

#1
18291-KR1-680
GASKET A, EX PIPE
$9.35¢4 675
1
#2
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#3
18293-KZZ-900
RUBBER, PROTECTOR GASKET
$1.70¢851
1
#4
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#5
18306-KZZ-900
CAP, TAIL
$28.63¢14 317
1
#6
18310-KZZ-305
MUFFLER (COO)
$840.16¢420 078
1
#7
18317-KZZ-305
ARRESTER, SPARK (COO)
$121.45¢60 726
1
#8
18320-KZZ-900
PIPE, EX.
$140.94¢70 472
1
#9
18325-KZZ-900
PROTECTOR, EX. PIPE
$35.50¢17 750
1
#10
18327-KZZ-900
STAY, EX. PIPE PROTECTOR
$18.29¢9 143
1
#11
18355-KZZ-900
PROTECTOR, MUFFLER
$85.42¢42 711
1
#12
18360-KZZ-900ZB
COVER, FR. MUFFLER *NH196* (ROSS WHITE)
$57.27¢28 635
1
#13
18361-KZZ-900
GUARD, HEAT (A)
$4.63¢2 317
1
#14
18362-KZZ-900
GUARD, HEAT (B)
$5.66¢2 829
1
#15
18363-KZZ-900
GUARD, HEAT (C)
$4.63¢2 317
1
#16
18365-KZZ-900
COVER, RR. MUFFLER
$11.97¢5 986
1
#17
18373-KZZ-900
BAND, R. EX. PIPE
$23.74¢11 868
1
#18
18391-KZZ-901
GASKET, MUFFLER
$8.34¢4 169
1
#19
19516-ML7-691
CLAMP, HOSE (24-32MM)
$15.38¢7 688
1
#20
83512-KZZ-900
RUBBER, MUFFLER PROTECTOR
$1.64¢822
1
#21
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#21
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#22
90114-KZZ-900
SCREW, SPECIAL (5X10)
$0.97¢483
1
#23
90118-KZZ-900
BOLT, FLANGE (8X16)
$1.71¢857
1
#24
90160-KZZ-900
BOLT, MUFFLER PROTECTOR (5MM)
$1.62¢811
1
#25
90170-KZZ-900
SCREW, PAN (6X10)
$1.17¢586
1
#26
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#27
90344-964-003
NUT, CLIP (6MM)
$4.30¢2 151
1
#28
93913-142J0
SCREW, TAPPING (4X12)
$2.38¢1 190
1
#29
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#30
94103-04000
WASHER, PLAIN (4MM)
$0.85¢426
1
#31
95701-08035-02
BOLT, FLANGE (8X35)
$2.45¢1 225
1
#32
96300-08040-00
BOLT, FLANGE (8X40)
$2.53¢1 265
1
